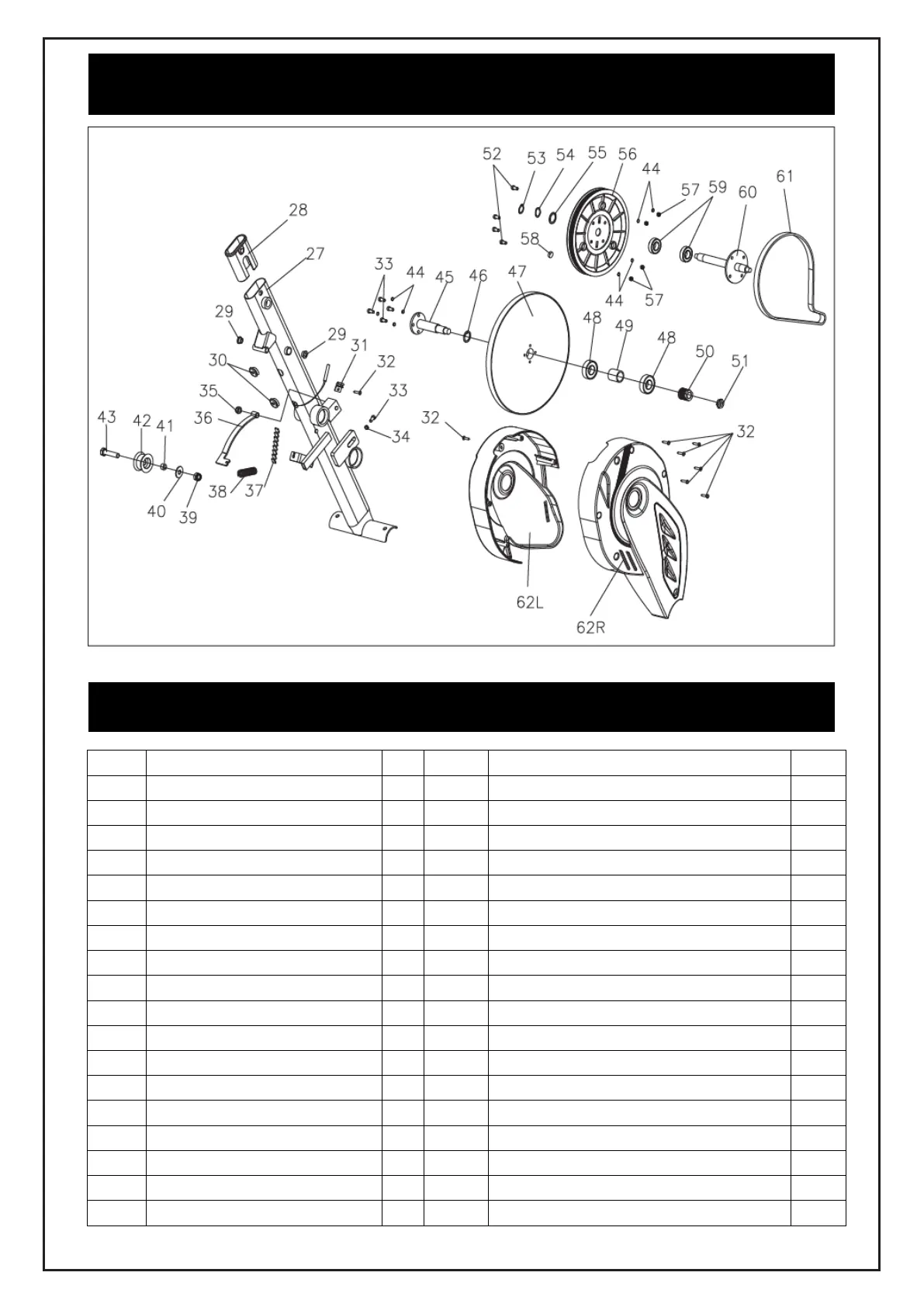

Explode drawing
Parts list s list
No Spe Qty No Spe Qty
1 Monitor 1 32 Screw ST4.2×20 8
2 Screw M5*10 4 33 Screw M6x20 5
3 Bolt M8x40*15 2 34 Spring washer D6 8
4 Washer D8×1.5×φ20 6 35 Nylon nut M8 1
5 Spring washerD8 4 36 Magnetic board 1
6 Handlebar weld 1 37 Magnetic 15×13×3 8
7 Main frame weld 1 38 Spring snapΦ10×53 Φ1 1
8 Spring washer M16*1.5*22 1 39 Nylon nut M10 1
9 Seat tube 1 40 Washer D10×2.0xΦ20 1
10 M8 nylon nut 5 41 Idler pushing Φ20*Φ10*8 1
11 Seat tube weld 1 42 Idler 1
12 Backrest 1 43 Bolt M10x45 1
13 Bolt M8x45*15 4 44 Spring washerD6 1
14 seat weld 1 45 Flywheel axisΦ20*105*M16*1.5 1
15 Bolt M8*40 2 46 Washer Φ20.2*Φ28*1 1
16 Washer D8×Φ25×2 2 47 flywheelφ260*15 1
17 Washer d8 3 48 Axis 6004RS C&U 2
18L/R
L&R pedals
各 1 49 Inner bushing Φ26*Φ20*24.2 1
