2

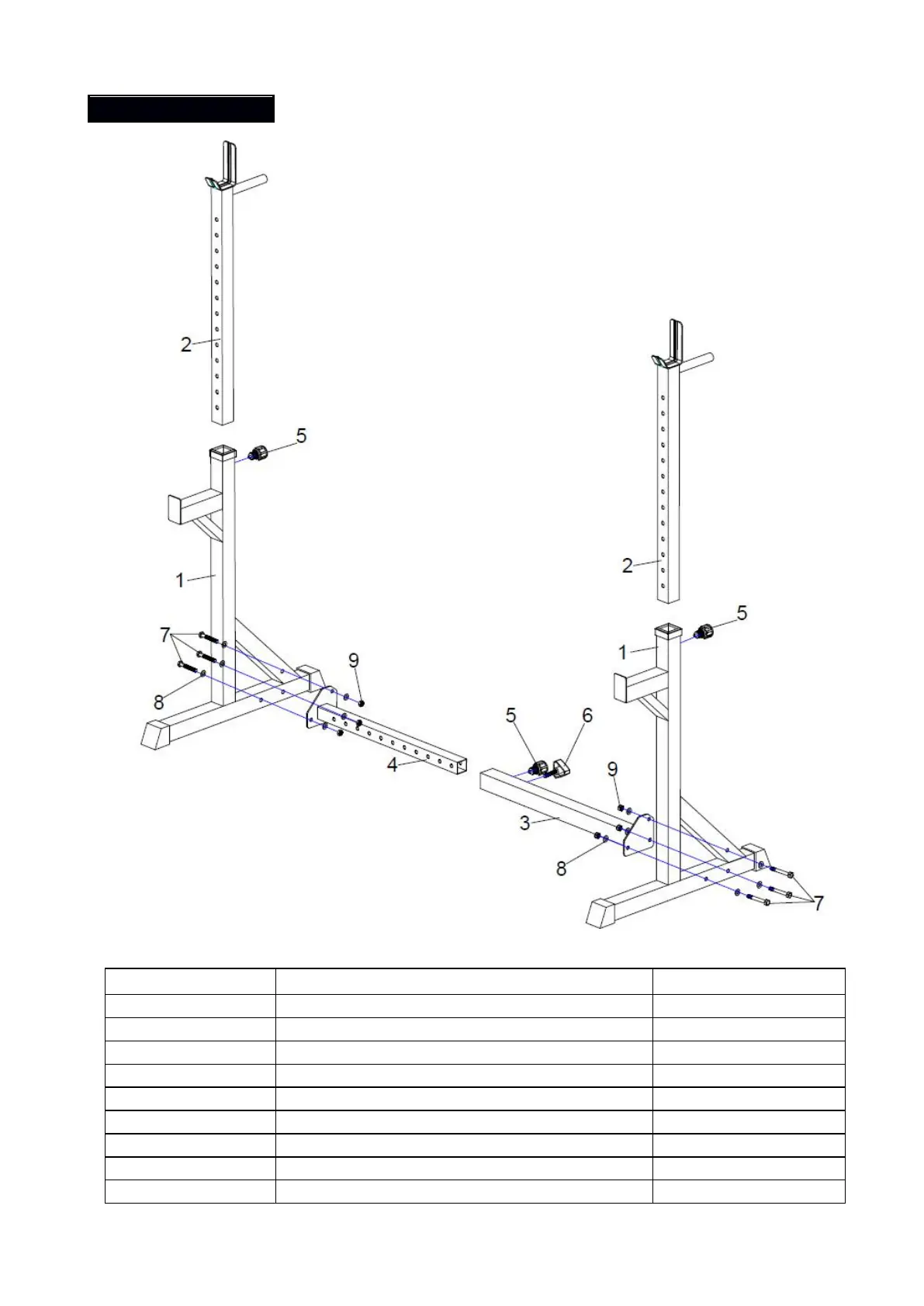

EXPLODED-VIEW
PART NO.
DESCRIPTION
QTY
1.
Main Frame
2
2.
Barbell Frame
2
3.
Connect Tube
1
4.
Adjustable Frame
1
5.
Quick Pin
3
6.
Knob
1
7.
Hex Bolt M10x65
6
8.
Washer M10
12
9.
Nylon Nut M10
6
