Soozier A91-178 - Step 3: Frame and Guiding Tube Connection

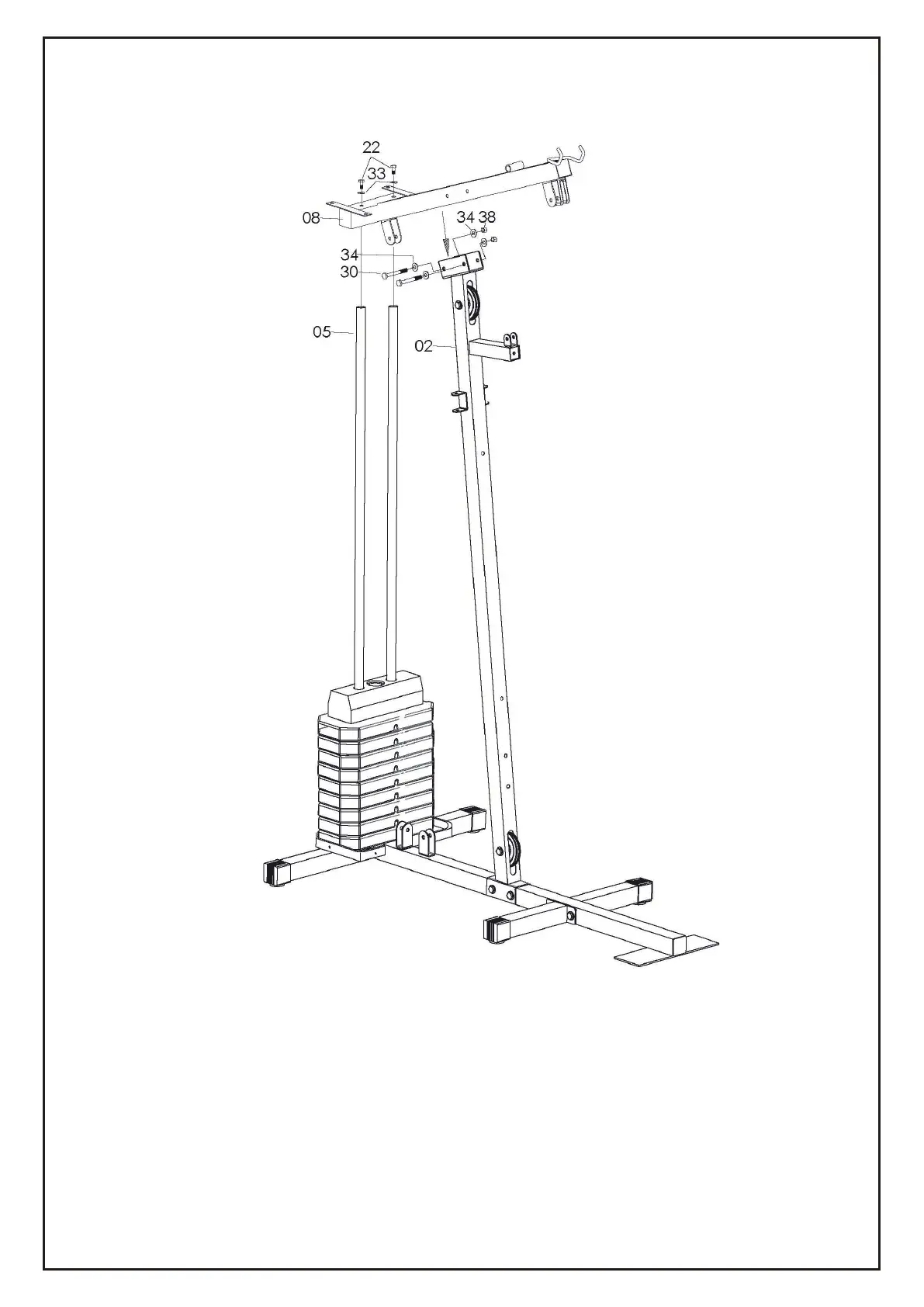

STEP 3
1) Place the Guiding Tube (05) into the Bridge Tube (08) and tighten by X2 Flat Washer
(33) and X2 Hex Head Bolt (22).
2) Attach the Bridge Tube (08) to the Upright Support Tube (02) and tighten by X2 Hex
Head Bolt (30), X4 Flat Washer (34) and X2 Nylon Nuts (38).
10
