Sophos SD-RED 60 Quick Start Guide

2

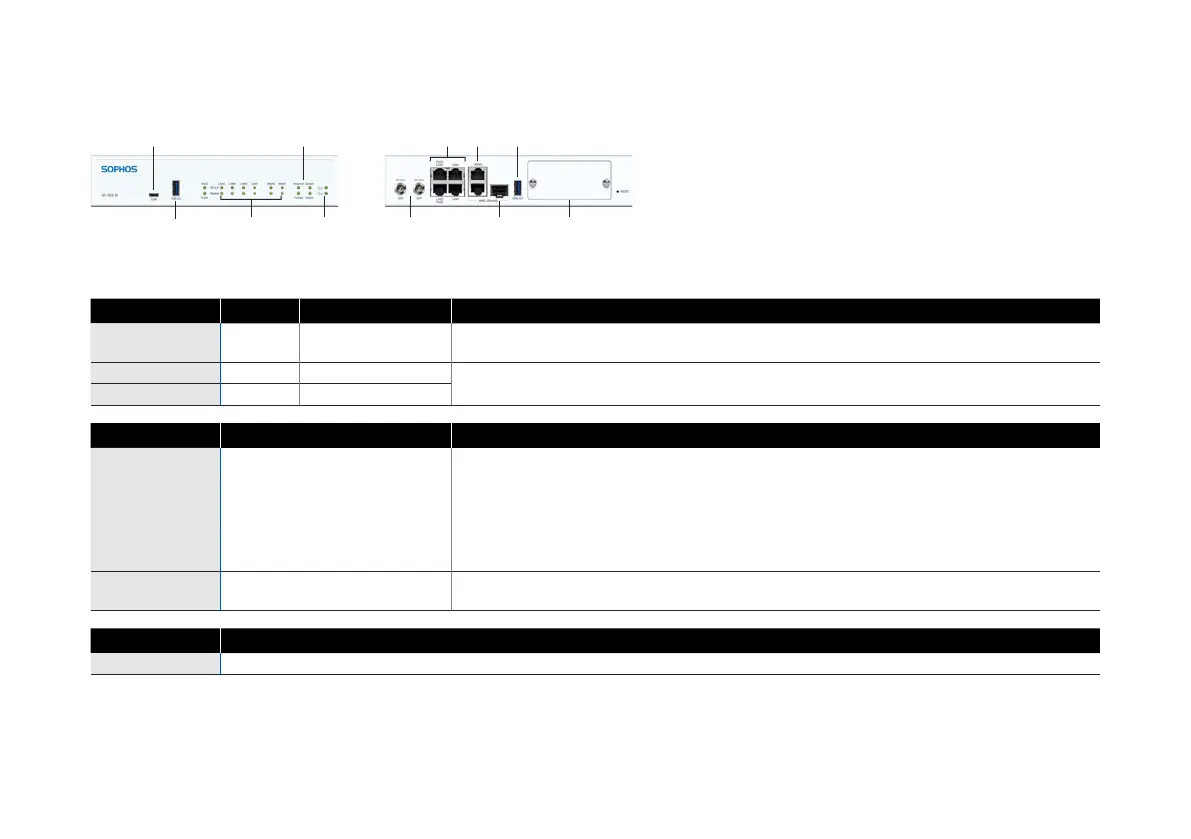

b) Device Images: Front and Back
Status LEDs
Power LEDs
USB 3.0
Port LEDs
Micro-USB
COM port
4 x GbE
LAN
2 x Power
supply
Optional Wi-Fi or
3G/4G module
SFP
GbE
WAN USB 3.0
Interfaces
LAN Ports Type Speed Comment
LAN1–LAN4 RJ45 10/100/1000 Mbps LAN1/LAN3 ports can be used to power a connected device (e.g. access
point, IP camera, or IP Phone) via PoE with up to 30W (PoE 802.3at)
WAN RJ45 10/100/1000 Mbps WAN1/SFP are shared ports, i.e. you can only use either WAN1 OR SFP at any given
time. If cables are connected to both ports, then SFP will take precedence.
SFP SFP 1 Gbps
Other Ports Type Comment
COM Micro USB [front] You can connect a serial console to the Micro USB COM port to access the CLI.
The required connection settings are:
Ì Bits per second: 115,200
Ì Data bits: 8
Ì Parity: N (none)
Ì Stop bits: 1
USB USB 3.0 (Type A) You can connect a USB 2.0 or 3.0 compatible device to this
port (e.g. USB thumb drive, 3G/4G dongles).
Module Slots Comment
Expansion Slot Can be used for Sophos 3G/4G or Wi-Fi Modules which are optionally available from your Sophos partner.
Quick Start Guide SD-RED 60
ENGLISH

Sophos SD-RED 60 Specifications

General

Brand	Sophos
Model	SD-RED 60
Category	Network Router
Language	English
