Registered Quality System to ISO 9001 | 913-888-2630 | SORInc.com
14/16
Form 281 (05.18) ©SOR Inc.
Non-Hazardous Locations
Weathertight NEMA 4, 4X, IP65
Housing Designator: V1

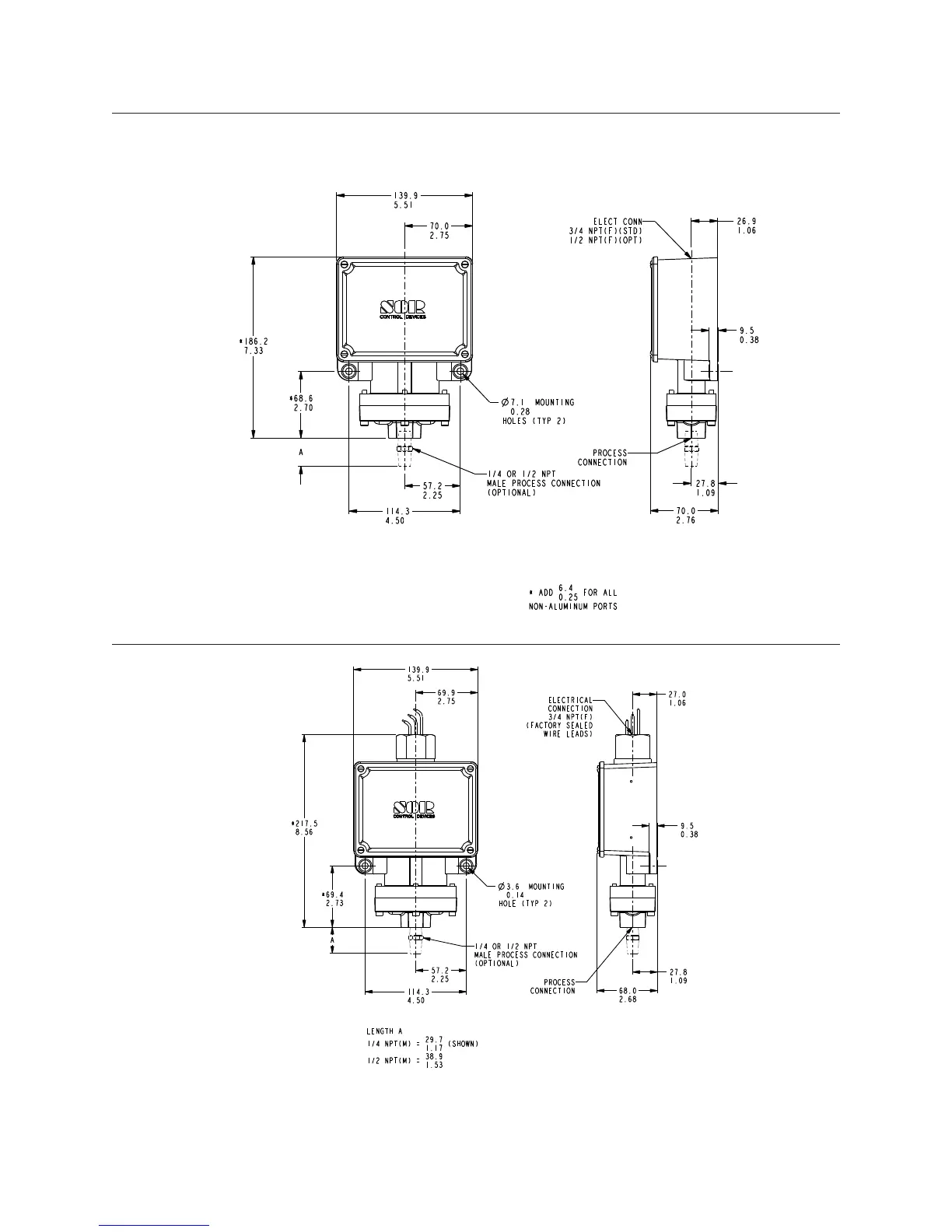

Housing Dimensions
Adjustable Dead Band
Pressure Switches
Hazardous Locations
Contains Explosion Proof, Hermetically Sealed Switching Element Capsule: UL Listed, CSA Certified, ATEX and SAA Approved
Housing Designator: V3
Dimensions in this catalog are for reference only. They may be changed without notice. Contact the
factory for certified drawings for a particular model number. Dimensions are expressed as millimeters
over inches (Linear = mm/in.).
Drawing 0090236
Drawing 0090325
