Cranex® D Site Ceph Beam Alignment (White Panel Version)
Rev. 1 Cranex® D Ceph Beam Alignment (White Panel) Page 12 of 13
Step #13: Now the ear rods need to be aligned, take scan if
needed and see where the ear rods are at this point. The small
ring should be in the larger ring to be properly aligned.

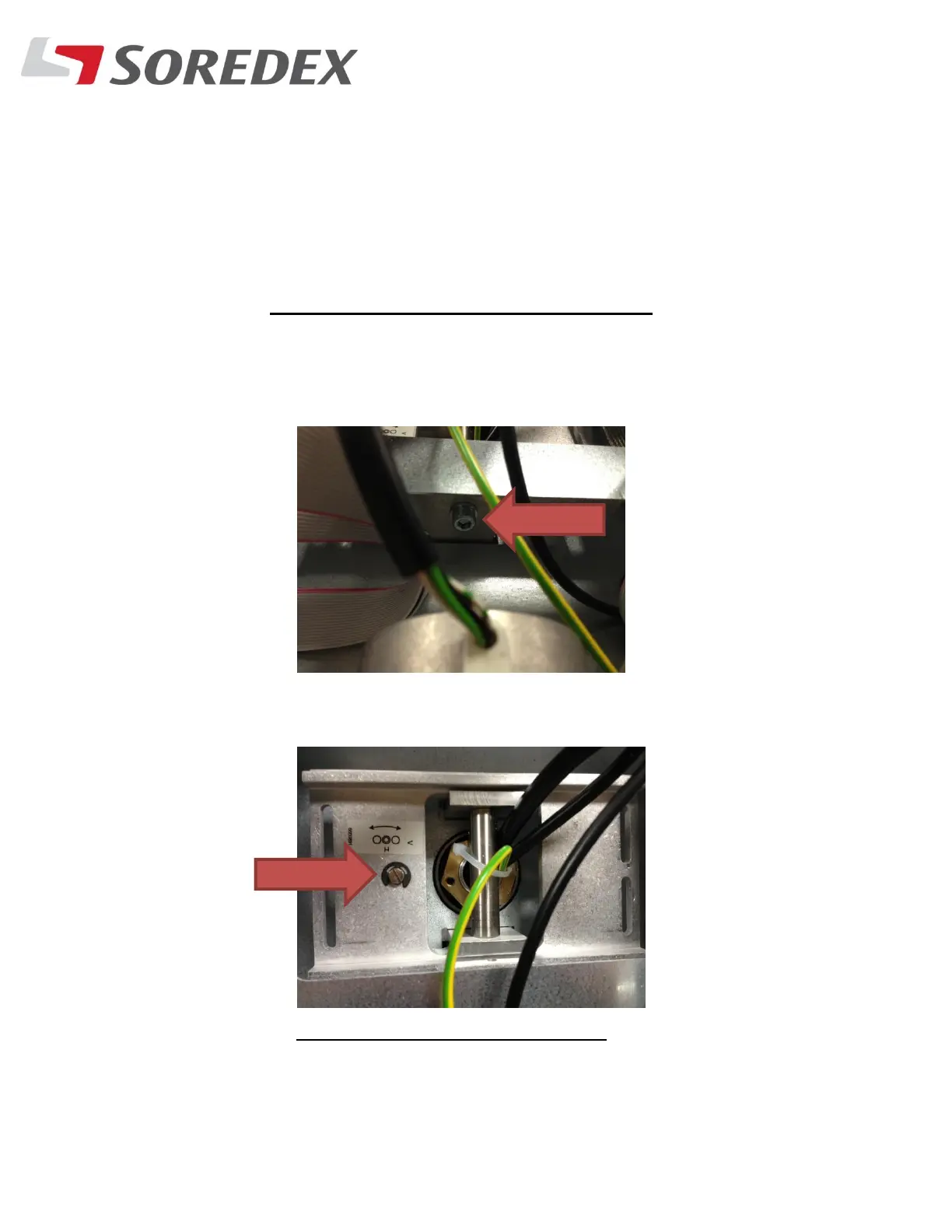

Step #14: Vertical ear rod alignment procedure
1. Loosen the M6 fixing bolt behind the Ceph head motor. This
allows the head to be tilted.
2. Adjust the vertical position with the adjustments screw in the
ceph head.
Step #15: Horizontal Ear Rod alignment:
