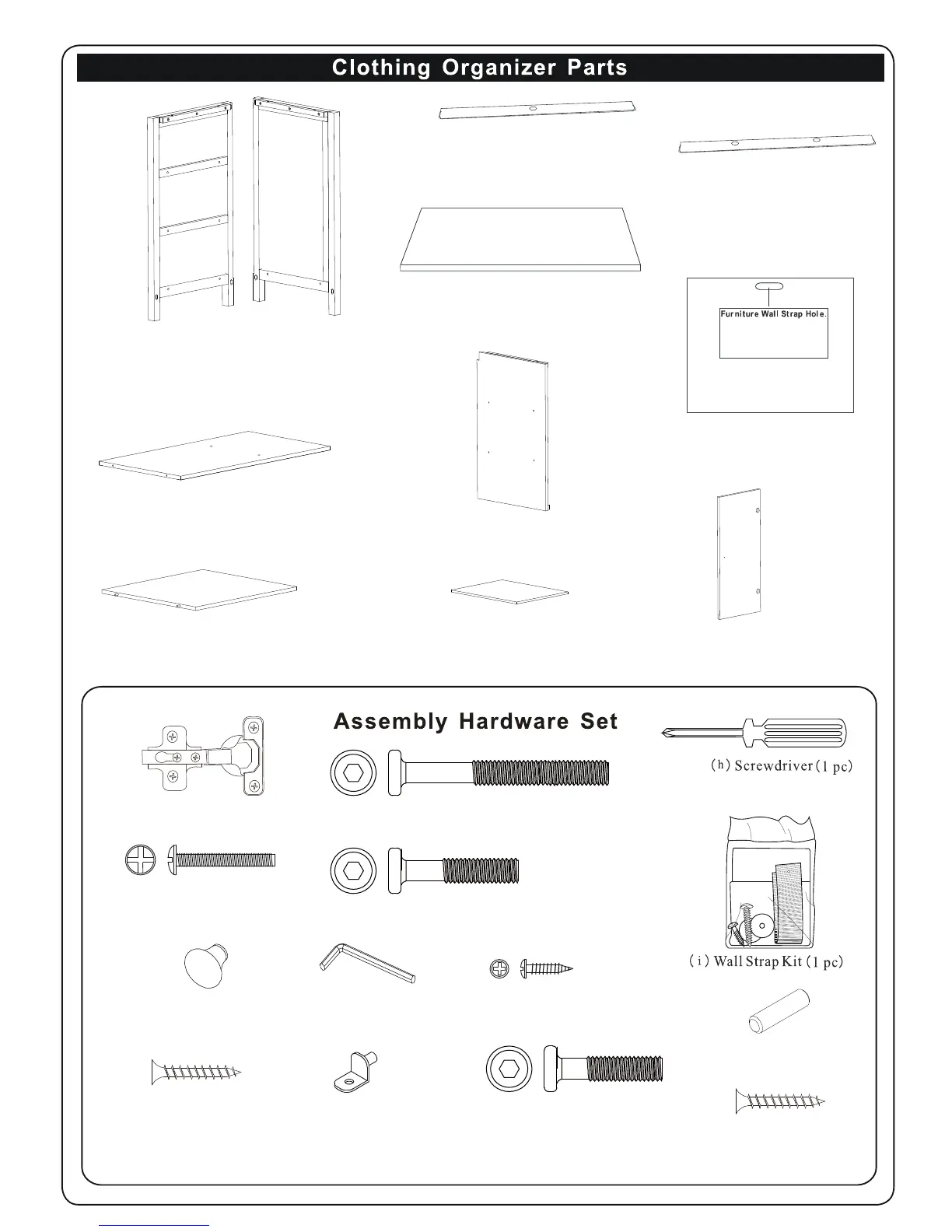

(d)42mm Allen Bolts(6 pcs)
(a) Hinges (2 pcs)
(b) Knop Screw (1 pc)
(c) Door Knop (1 pc)
(j) Hinges Screw (8 pcs) (k) Shelf Support (4 pcs)
(e)29 mm Allen Bolts(8 pcs)
(g)16 mm Screws (20 pcs)
(f)Allen Key (1 pc)
Page 15
(DC)Dresser Top Support Bar (1 pc)
(DK)Bottom Support Bar (2 pcs)
(DF)Bottom Panel (1 pc)
(DG) Middle Panel(1 pc)
(DH)Door (1 pc)
(DI) Fixed Shelf (2 pcs)
(DA)Left End Frame (1 pc) (DB)Right End Frame (1 pc)
(DD)Top Panel (1 pc)
(DE)Back Panel (1 pc)
SORELLE
(DJ) Adjustable Shelf (1 pc)
(n) 35mm Screw (4 pcs)
(l)35 mm Allen Bolts(1 pc)
(m)Wood Dowels (4 pcs)
