Sorelle Paris - Step 3: Middle & Right Panel Assembly; Step 4: Changer Assembly (Part 1)

page 7
SORELLE
A
B.
.

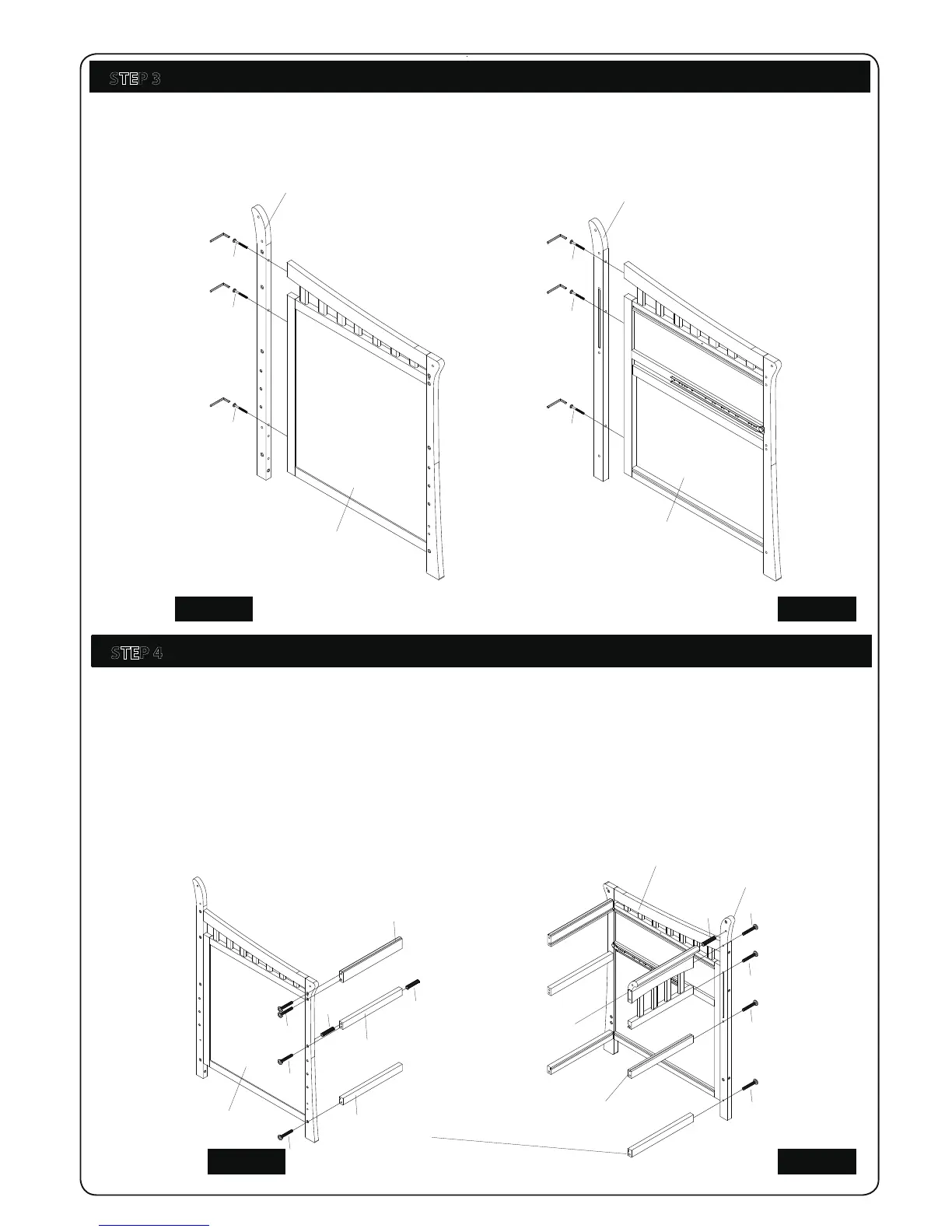

STEP 3 MIDDLE & RIGHT PANEL ASSEMBLY
STEP 4 CHANGER ASSEMBLY (PART 1)
Figure 3B:Figure 3A:
Figure 4B :Figure 4A :
Using three 3 x bolt (b), assemble Back Middle Leg (Y) to Middle Panel (D). Figure 3A.
Using three 3 x bolt (b), assemble Back Right Leg (Z) to Right Panel (E). Figure 3B.
b
b
c
b
b
b
b
Middle Panel(D)
Back Middle Leg (Y)
Middle Panel(D)
Front and Back Bottom
Support Bar (M)
Back Middle Bar (L)
Decorative Support
Bar Bolt Ends (J)
Middle Panel(D)
Back Middle Leg (Y)
Right Panel(E)
Using two 2 x bolt (c), assemble Small Front Support Bar (K) to the Middle Panel (D). Figure 4A.
Insert one 1x wooden dowel (f) on either end of Front Middle Bar (N). Connect (N) to Middle
Panel (D) using one 1 x bolt (c). Figure 4A.
Using one 1 x bolt (c). assemble the Front Bottom Support Bar (M) groove facing inward. Figure 4A.
c
c
c
c
c
Front Middle Bar (N)
Small Front
Support Bar (K)
c
f
f
f
A.
Using two 2 x bolt (c) and one 1 x wooden dowel (f), assemble the Decorative Support Bar
(J) to Back Middle Leg (Y). Figure 4B.
Using one 1 x bolt (c) assemble the Back Middle Bar (L) groove facing upward. Figure 4B.
Using one 1 x bolt (c), assemble the Back Bottom Support Bar (M) groove facing inward. Figure 4B.
B.
Back Right Leg (Z)
