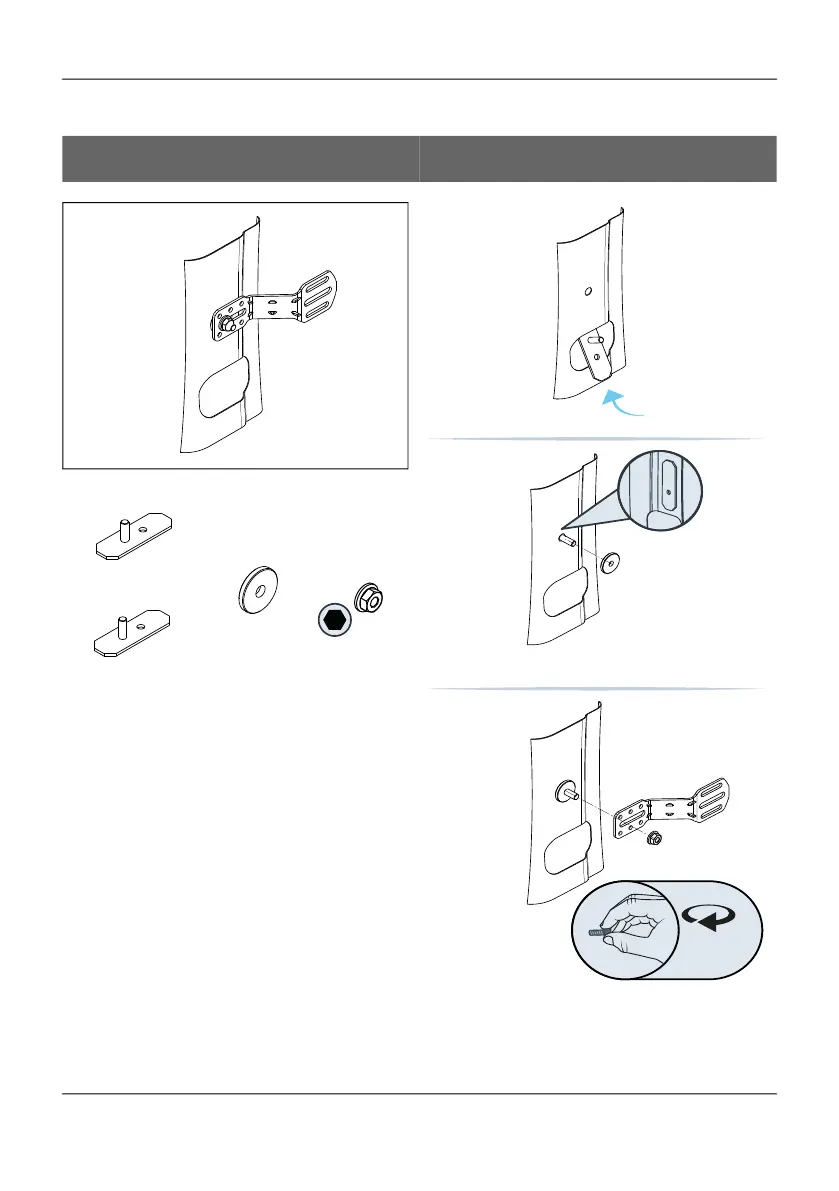

How to attach the racking
Fastening plate
ATTENTION
Damage to vehicle due to drilling
▶ Note the warning in the Chapter “Attaching
the block”.
Note:
• This fastening requires sufficient hollow space
behind the load-bearing elements. The
fastening plates cannot be positioned without
this hollow space.
• Requires a Ø 8.5 mm hole.
• Use the existing hole on the chassis (original
hole) or drill a new hole.
M8
90 x 30 x 25
M8
66 x 20 x 25
M8
M8
1
2
3
Nm
༔
༐
