Sortimo SR5 - Attaching EcoFiX brackets to the vehicle wall

© Sortimo International GmbH MA 00057 | 2022-01-11 | 5 100
How to attach the racking
Attaching EcoFiX brackets to the vehicle wall
There are two options for attaching the EFI to the wall of the
vehicle.
a) Blind rivet nuts,
b) Fastening plates.
Rule If possible, attaching the EcoFiX bracket using a fastening plate
is preferable to attaching it with blind rivet nuts.

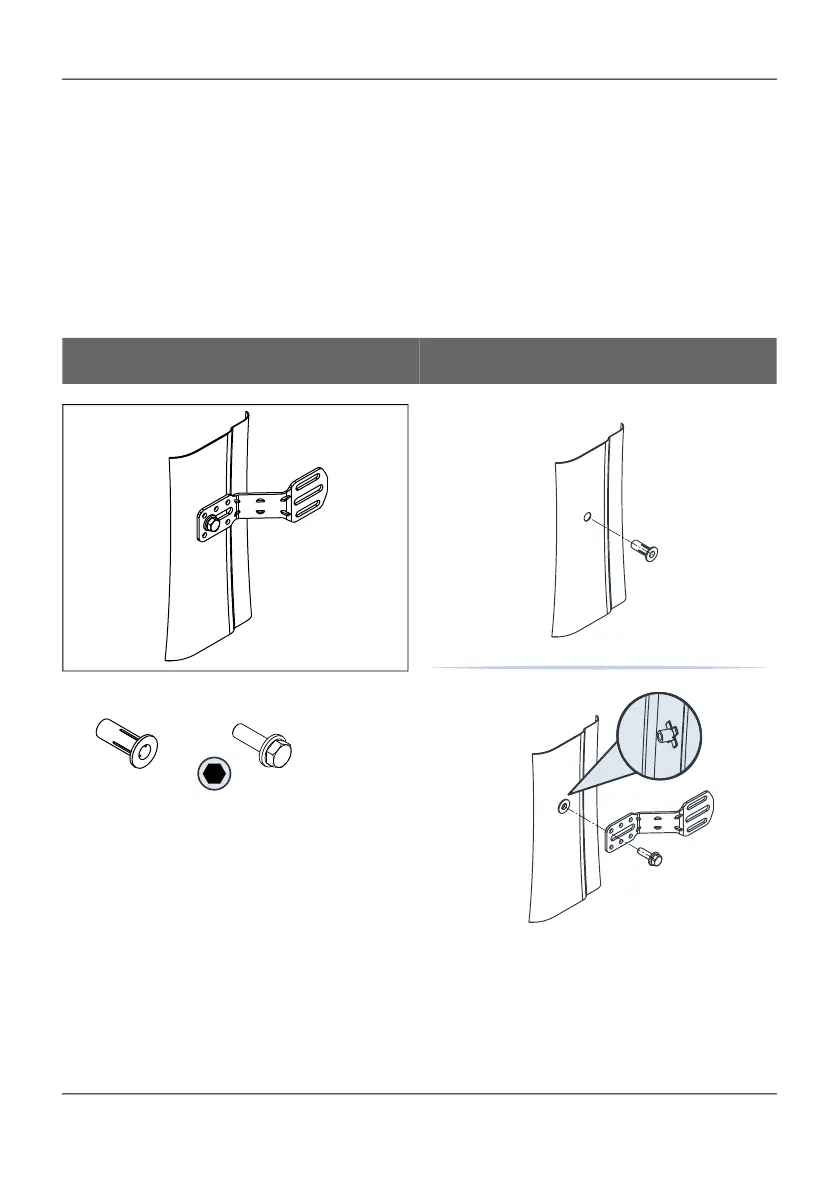

Blind rivet nut
ATTENTION
Damage to vehicle due to drilling
▶ Note the warning in the Chapter “Attaching
the block”.
Note:
• Requires a Ø 11.2 mm hole.
• Use the existing hole on the chassis (original
hole) or drill a new hole.
M8 x 29
M8 x 20
1
2
