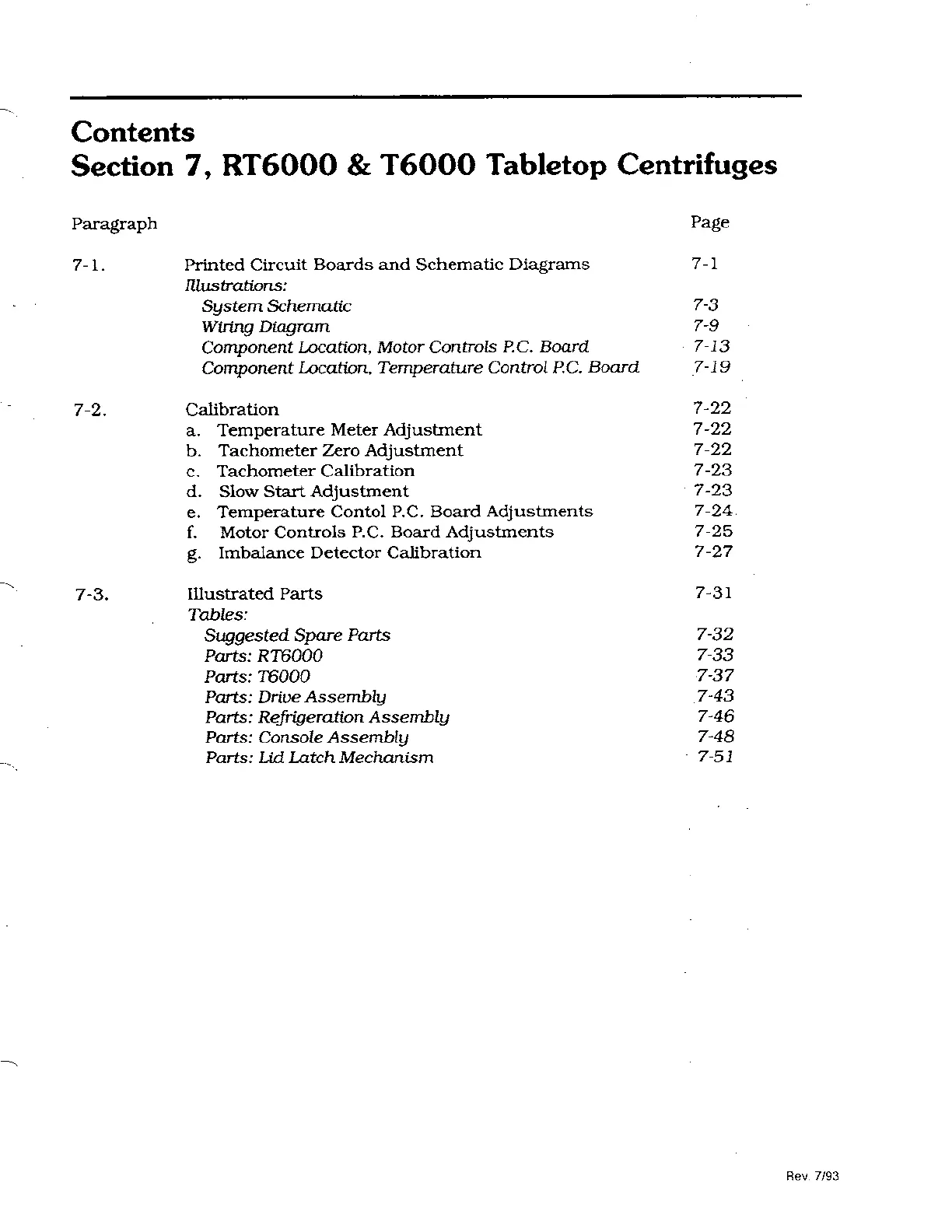

Contents
Section
7,
RT6000
&
T6000
Tabletop Centrifuges
Paragraph
Page
7-1.
Printed Circuit
Boards
and Schematic
Diagrams
7-1
Illustrations;
System
Schematic
7-3
Wiring Diagram
7-9
Component
Location,
Motor Controls
P.C.
Board
7-13
Component Location,
Temperature Control
P.C.
Board
7-19
7-2.
Calibration
7-22
a.
Temperature Meter Adjustment
7-22
b.
Tachometer Zero Adjustment
7-22
c.
Tachometer
Calibration
7-23
d.
Slow Start
Adjustment
7-23
e.
Temperature
Contol
P.C.
Board Adjustments
7-24
f.
Motor
Controls
P.C.
Board
Adjustments
7-25
g.
Imbalance Detector
Calibration
7-27
7-3.
Illustrated
Parts
7-31
Tables:
Suggested Spare
Parts
7-32
Parts:
RT6000
7-33
Parts:
T6000
7-37
Parts: Drive Assembly
7-43
Parts:
Refrigeration
Assembly
7-46
Parts:
Console Assembly
7-48
Parts:
Lid
Latch
Mechanism
7-51
