SORVALL®
Centrifuges
RT6000D. T6000D, RT6000B.
and
T6000B
Centrifuges
Serial Number
9101800
and
Above

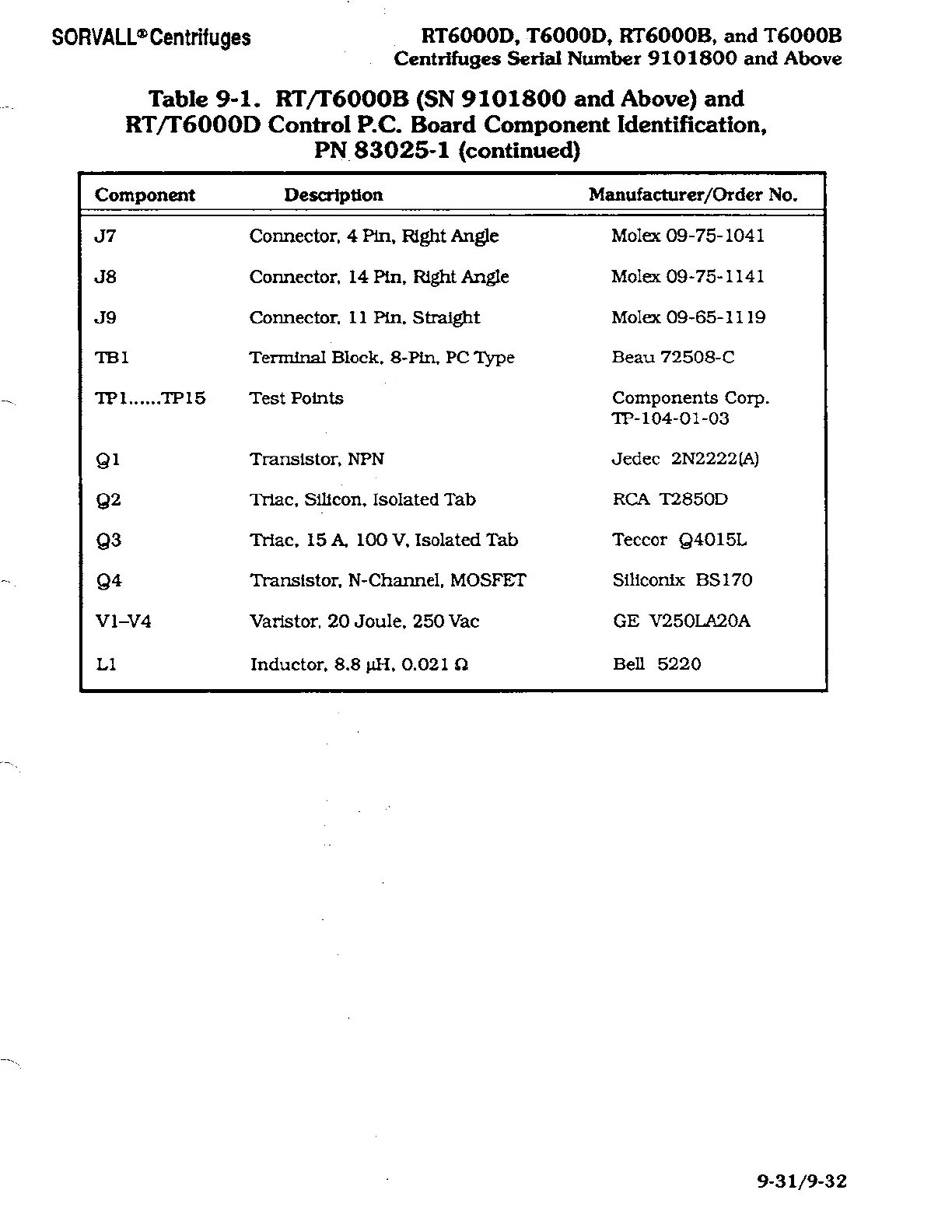

Table 9-1.
RT/T6000B
(SN
9101800
and Above) and
RT/T6000D
Control
P.C.
Board
Component
Identification,
PN 83025-1
(continued)
Component Description
Manufacturer/Order
No.
J7
J8
J9
TB1
TP1......TP15
Ql
Q2
Q3
Q4
V1-V4
LI
Connector,
4
Pin,
Right Angle
Connector,
14
Pin.
Right Angle
Connector.
11
Pin,
Straight
Terminal
Block, 8-Pin.
PC
Type
Test Points
Transistor,
NPN
Triac.
Silicon. Isolated
Tab
Triac.
15
A,
100
V,
Isolated
Tab
Transistor,
N-Channel,
MOSFET
Varistor.
20
Joule.
250
Vac
Inductor.
8.8
uH,
0.021
Q
Molex
09-75-1041
Molex
09-75-1141
Molex
09-65-111 9
Beau
72508-C
Components
Corp.
TP-104-01-03
Jedec
2N2222(A)
RCA
T2850D
Teccor
Q4015L
Sillconix
BS170
GE V250LA20A
Bell
5220
