13
Soundcraft Notepad User Guide
Mix Outputs

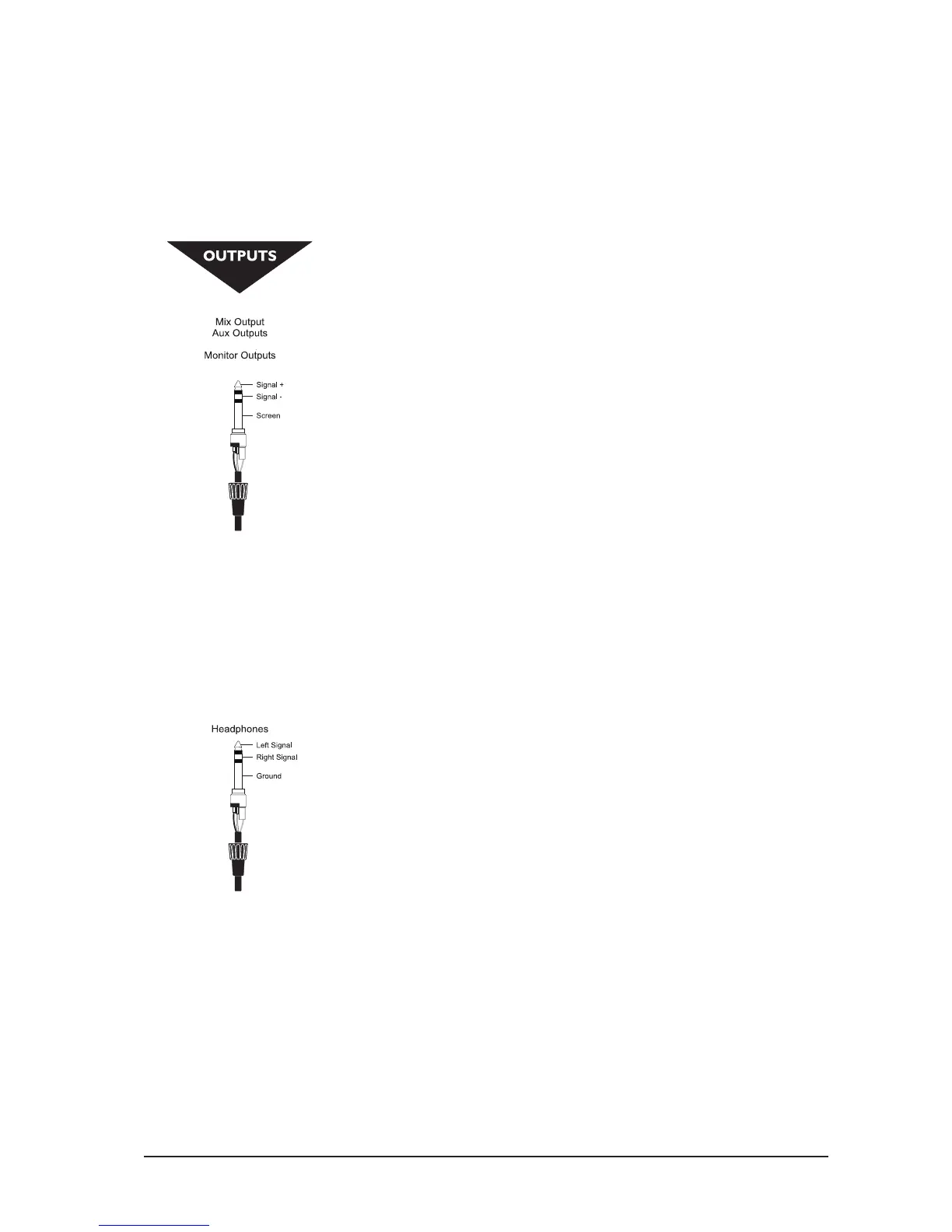

The MIX outputs are on 1/4” TRS jacks, wired as shown, and incorporate bal-
anced line drives, allowing long cable runs to balanced ampliers and other
equipment.
Aux/FX SEND Outputs
The Aux/FX Bus outputs are on 3-pole 6.35mm (1/4”) jack sockets, wired as
shown on the left, and are impedance balanced.
MONITOR Outputs
The MONITOR outputs are on 3-pole 6.35mm (1/4”) jack sockets, wired as
shown on the left, and are impedance balanced.
Headphones
The PHONES output is a 3-pole 6.35mm (1/4”) jack, wired as a stereo output
as shown, ideally for headphones of 32Ω or greater. 8Ω headphones are not
recommended.
We recommend you check out the range of headphones available from AKG,
at www.akg.com
Stereo Inputs 7-8, 9-10 (Notepad 102)
These accept unbalanced RCA Phono plugs and are optimised for -10dBV
operation from line sources such as a CD or MP3 player. They can accept
signals from balanced sources by using an appropriate cable, see pages
34/35 for cable wiring details.
