22
Soundcraft Notepad User Guide
1 POWER INDICATOR
This LED lights to show when power is connected to the console, and
the power switch is ON.
2 PHANTOM POWER
Many professional condenser mics need PHANTOM POWER, which is
a method of sending a powering voltage down the same wires as the
mic signal. Press the switch to enable the +48V power to all of the
MIC inputs. The adjacent LED illuminates when the power is active.
WARNING: TAKE CARE when using unbalanced mics which
may be damaged by the phantom power voltage. Balanced
dynamic mics can normally be used with phantom power
switched on (contact your microphone manufacturer for
guidance).
Mics should always be plugged in, and all output faders set to
minimum before switching the Phantom Power ON to avoid damage to
external equipment.
2-TRACK
3 INPUT FROM 2-TRACK
These two RCA phono sockets are unbalanced Left and Right line-level
inputs, used for connecting a playback device such as a CD player
or MP3 player.
4 ROUTE 2-TRACK TO MAIN
Press this switch to route the 2 Track input signals to the MIX Left/
Right signals.
5 ROUTE 2-TRACK TO MON
Press this switch to route the 2 Track input signals to the
MONITORING outputs.
MONITOR OUT
6 MONITOR OUTPUT LEVEL
This control sets the signal level fed to the MONITOR LEFT & RIGHT
outputs and the Headphone outputs.

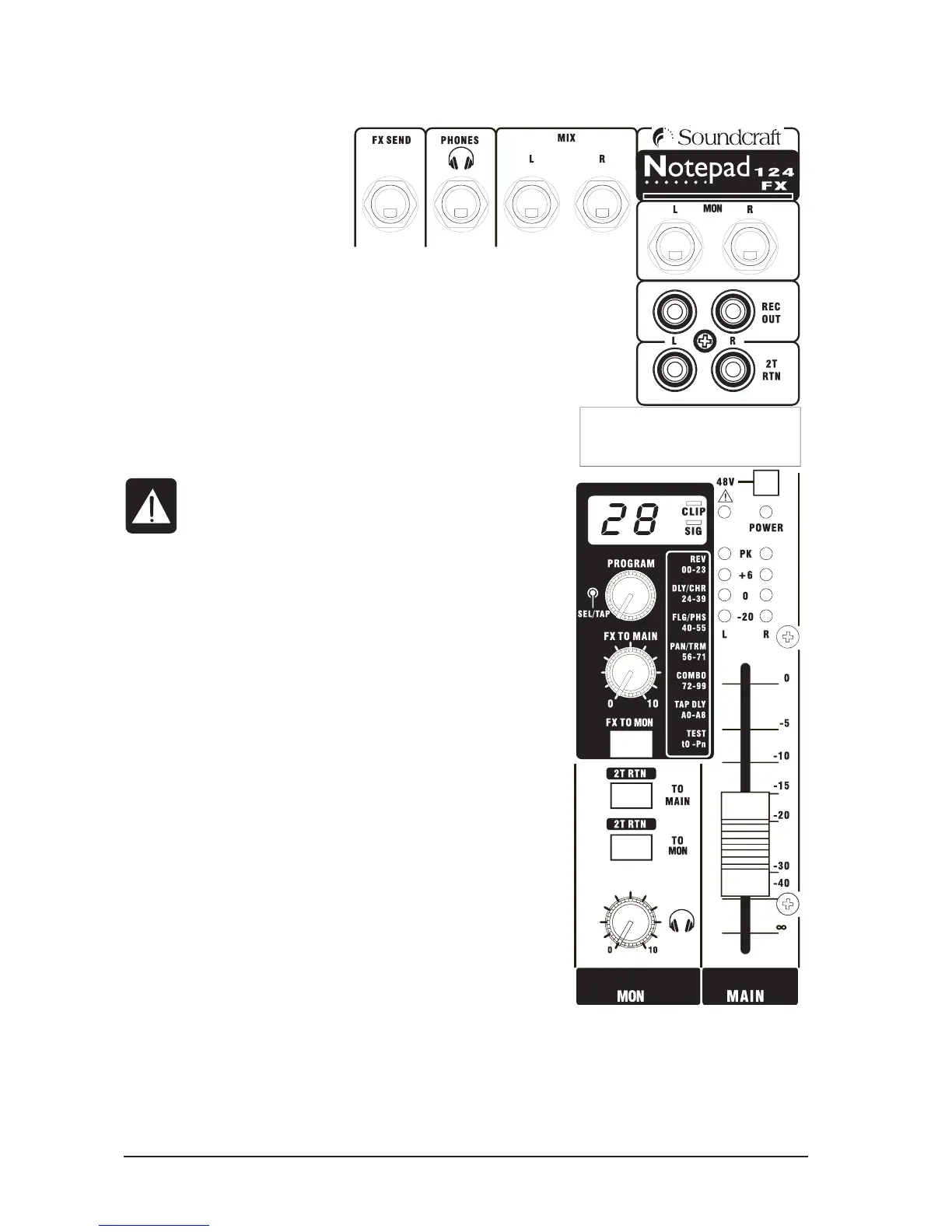

MASTER SECTION (Notepad 124FX shown)
1
2
3
4
5
6
78
9
0
q
w
e
r
To Next Page
