MCD1700 / English instruction manual
ENG 2

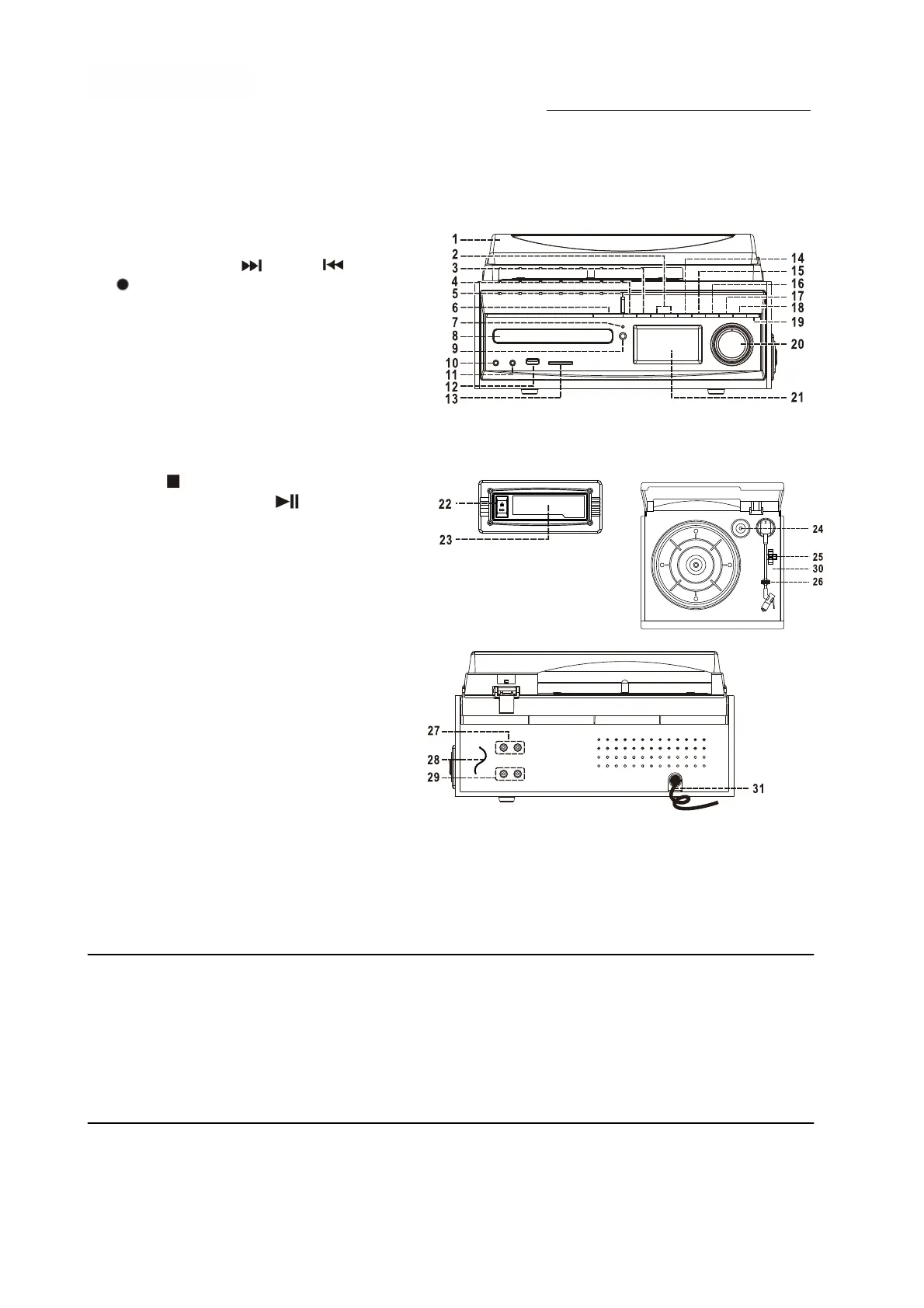

LOCATION OF CONTROLS
1) DUST COVER
2) TUNING/SKIP UP
/ DOWN BUTTON
3)
RECORD BUTTON
4) CD DOOR OPEN/CLOSE BUTTON
5) POWER LED INDICATOR
6) POWER ON/STANDBY BUTTON
7) STANDBY LED INDICATOR
8) CD DOOR
9) REMOTE SENSOR
10) 3.5MM HEADPHONE JACK
11) 3.5MM AUX IN JACK
12) USB SOCKET
13) SD/MMC CARD SLOT
14) STOP
BUTTON
15) BAND / PLAY/PAUSE
BUTTON
16) FOLDER/PRE-UP BUTTON
17) MEMORY/CLOCK-ADJUST BUTTON
18) PRESET EQ BUTTON
19) FUNCTION BUTTON
20) VOLUME UP/DOWN BUTTON
21) LCD DISPLAY
22) TAPE FORWARD / EJECT BUTTON
23) CASSETTE DOOR COVER
24) SPINDLE ADAPTOR
25) TURNTABLE SPEED SELECTOR
26) PICK-UP HOLDER
27) LINE OUT SOCKET (L/R)
28) FM ANTENNA
29) SPEAKER SOCKET (L/R)
30) AUTO STOP SWITCH
31) AC CORD
CAUTION:
USAGE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULTE IN HAZARDOUS RADIATION EXPOSURE.
THIS UNIT SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE
PERSONNEL.
PRECAUTIONS FOR USE
INSTALLATION
• UNPACK ALL PARTS AND REMOVE PROTECTIVE MATERIAL.
• DO NOT CONNECT THE UNIT TO THE MAINS BEFORE CHECKING THE MAINS VOLTAGE AND BEFORE
ALL OTHER CONNECTIONS HAVE BEEN MADE.
• DO NOT COVER ANY VENTS AND MAKE SURE THAT THERE IS
A SPACE OF SEVERAL CENTIMETERS
AROUND THE UNIT FOR VENTILATION.
CONNECTION
1. CONNECT THE POWER CORD (31) TO AC OUTLET AND CONNECT THE SPEAKER JACK TO THE
SPEAKER SOCKET (29) LOCATED ON THE REAR SIDE OF UNIT.
2. PRESS THE POWER BUTTON (6) AND IF POWER LED INDICATOR (5) LIGHT UP, IT’S MEAN THE POWER
SUPPLY IS NORMAL. NOW YOUR SYSTEM IS READY TO PLAY THE MUSIC.
