PL196H / English instruction manual
1

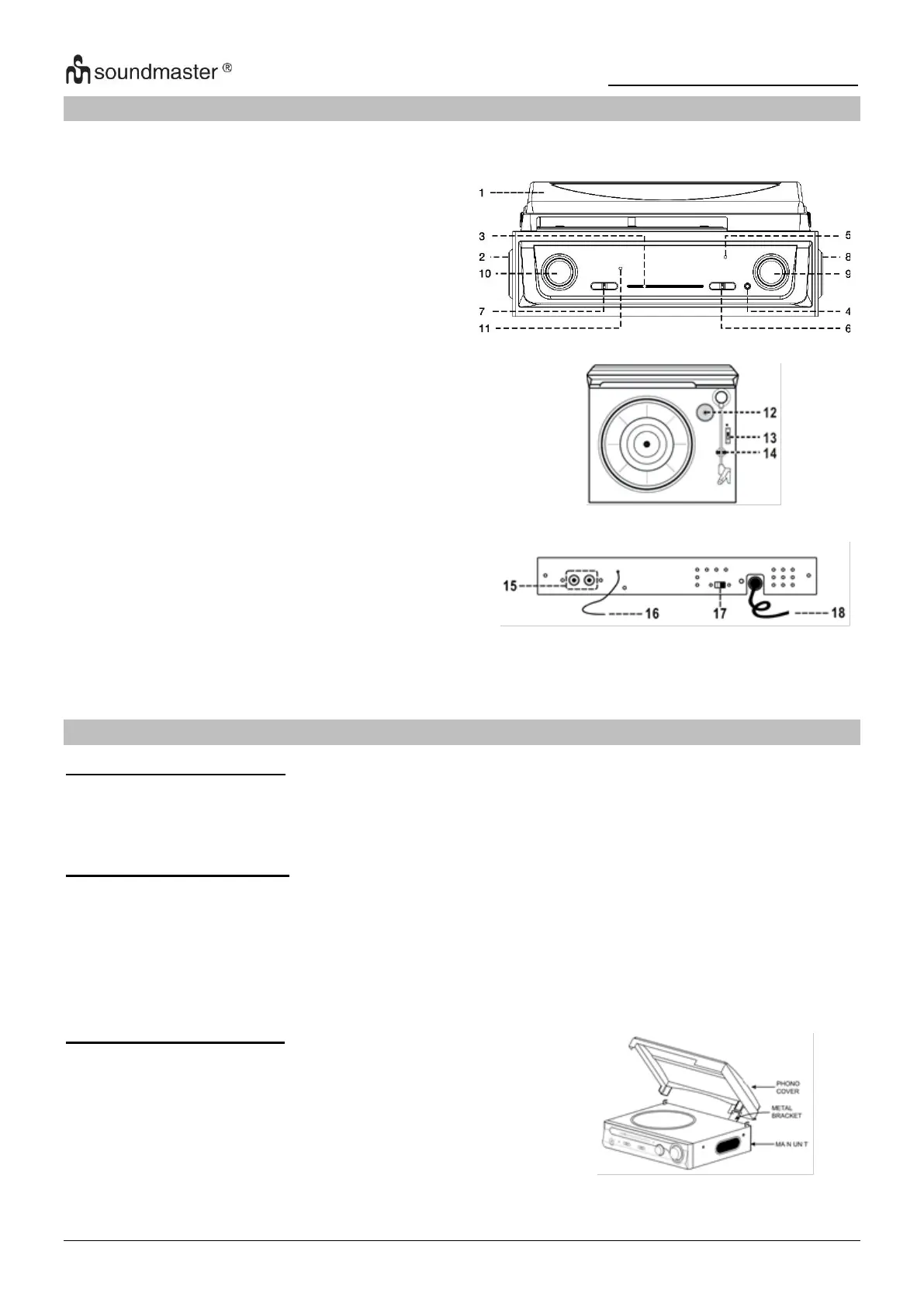

LOCATION OF CONTROLS
INSTALLATION
CONTENT OF DELIVERY
➢ Main Unit
➢ Instruction manual
PRECAUTIONS FOR USE
➢ Unpack all parts and remove protective material.
➢ Do not connect the unit to the mains before checking the mains voltage and before all other
connections have been made.
➢ Do not cover any vents and make sure that there is a space of several centimeters around
the unit for ventilation.
TOP COVER ASSEMBLY
➢ Push the metal bracket to rear side.
➢ Connect the metal bracket to the top cover.
➢ Connect the hinge of the top cover to the main unit.
1
DUST COVER
2
LEFT SPEAKER
3
DIAL POINTER
4
3.5MM HEADPHONE JACK
5
POWER LED INDICATOR
6
POWER OFF/FUNCTION
SELECTOR BUTTON
7
BAND/FM STEREO SELECTOR
8
RIGHT SPEAKER
9
TUNING KNOB
10
VOLUME KNOB
11
FM STEREO LED INDICATOR
12
SPINDLE ADAPTOR
13
33/45/78 RPM SPEED SELECTOR
14
PICK-UP HOLDER
15
LINE OUT SOCKET
16
FM ANTENNA
17
AUTO STOP SWITCH
18
AC CORD
