4" & 3" MPOWER
®
FASCIA LIGHTS
ENGLISH 0000JL 1123 REV C
4" & 3" MPOWER
®
FASCIA LIGHTS
3" mpower
®
DIMENSIONS / SPECIFICATIONS:

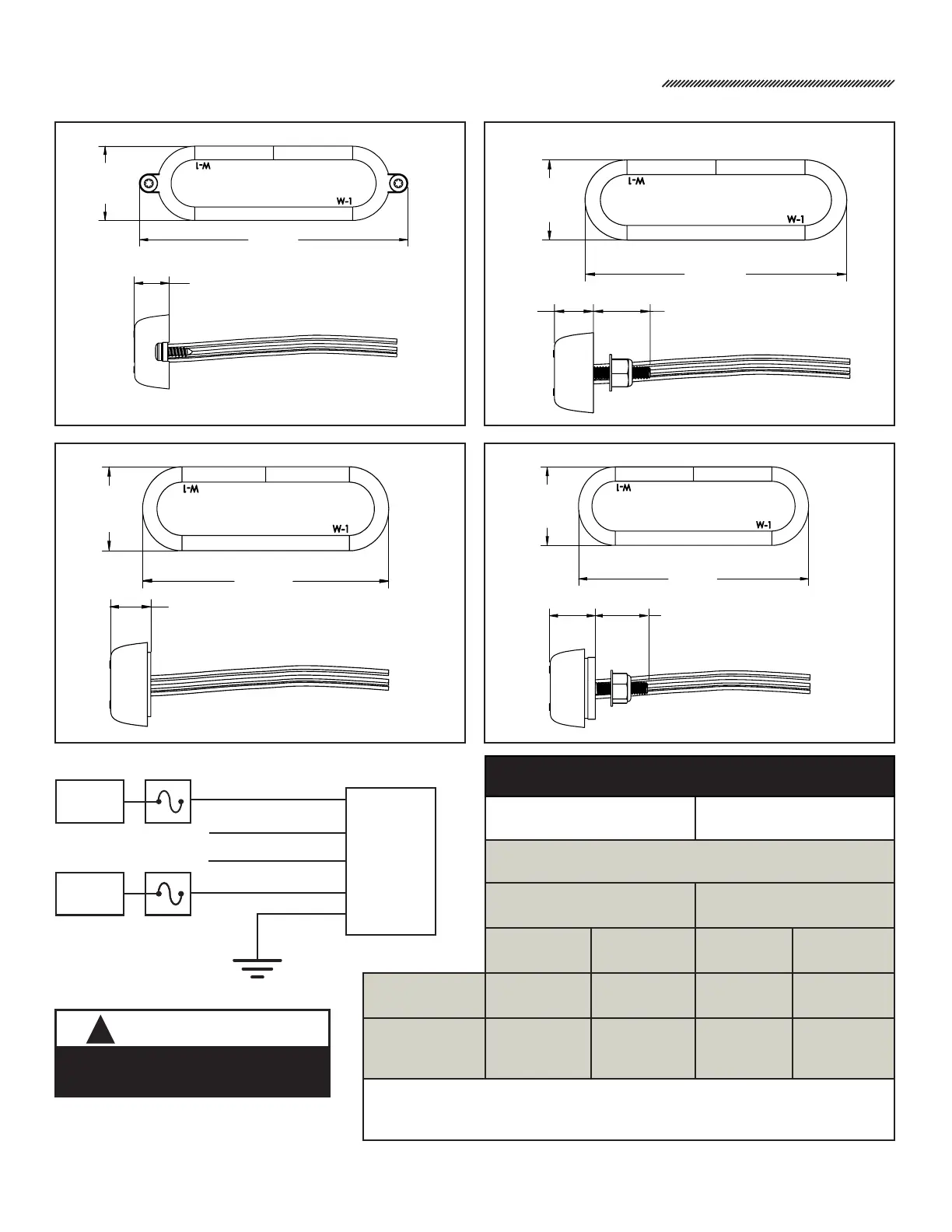

3" SCREW MOUNT DIMENSIONS
3" QUICK MOUNT DIMENSIONS
3" STUD MOUNT DIMENSIONS
3.43"
0.92"
0.42"
2.97"
0.92"
0.49"0.42"
0.92"
0.62"
2.97"
TECHNICAL SPECIFICATIONS
Input Voltage: 9-32Vdc
3” CURRENT CONSUMPTION (Amps)
12.8Vdc 25.6Vdc
Peak Average Peak Average
Red
0.62 0.26 0.31 0.13
Amber, Blue,
Green or
White
0.90 0.38 0.45 0.19
AFTER POWER IS ON, touching the WHITE wire to the ground will allow
you to change various settings on the module. (refer to page 8)
!
WARNING
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into the
light beam at close range.
3" FORD MOUNT DIMENSIONS
0.92"
0.66"
2.97"
0.58"
Sync
Set-up/Function
BLACK
RED
WHITE
GREEN
RED/WHITE
+Vdc
+Vdc
5A FUSE
5A FUSE
