1 Speaker – In case of only one speaker (connected to one of the four outputs), make
sure that the impedance is between 4 and 8 ohms.
WARNING: The minimum total impedance accepted by the mixer is 4 Ohm. If
the total load is less than 4 ohms you may damage the unit.

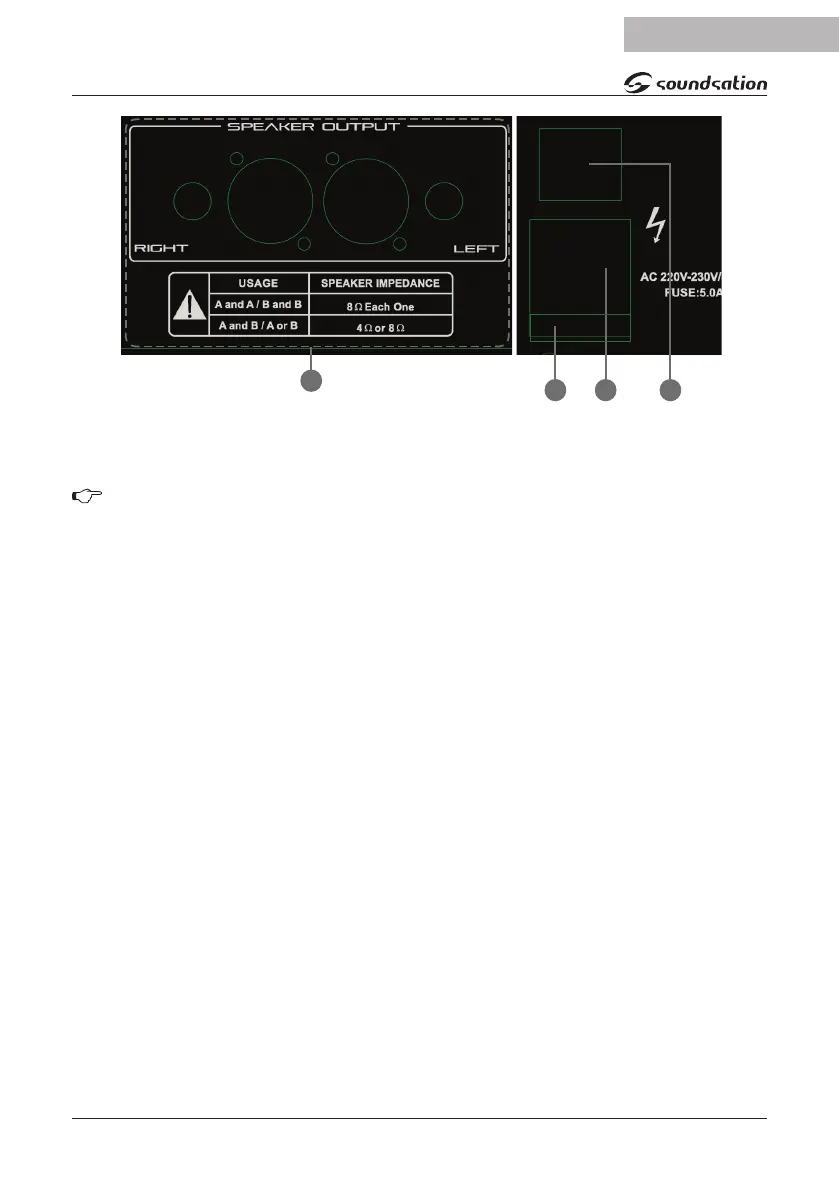

(28) POWER
Turns the mixer on and o.
(29) MAINS (IEC)
Connect here the power cord. Make sure the mains is the same as indicated on the rear
panel of the unit (220-230 Vac / 50 Hz) and described in the technical specicaons of
this manual.
(30) FUSE
When replacing the fuse, in order to avoid the risk of re and damaging the unit, please
use only the recommended fuse type as described on the rear panel of the unit (5.0
A). Before replacing the fuse, make sure the device is switched o and unplugged from
the outlet.
27
29 2830
