WIRING (cont..)
REMOTE TURN-ON
Connect the “Remote” to the turn-on lead from the source unit. When
+12
volts
is received, the amplifier will turn on.
SIGNAL CABLE
Use a high-quality cable that will be easy to install and has minimal signal loss
to guarantee optimum performance. Soundstream’s
DL.1
and
SL.1
are ideal.
SPEAKER CABLE
The REFERENCE amps will accept up to 8 gauge speaker cable. Use a high
quality, flexible, multi-strand cable for best performance and longevity.
Soundstream Speaker1 20
&
160 (12 and 16 gauge) are ideal.

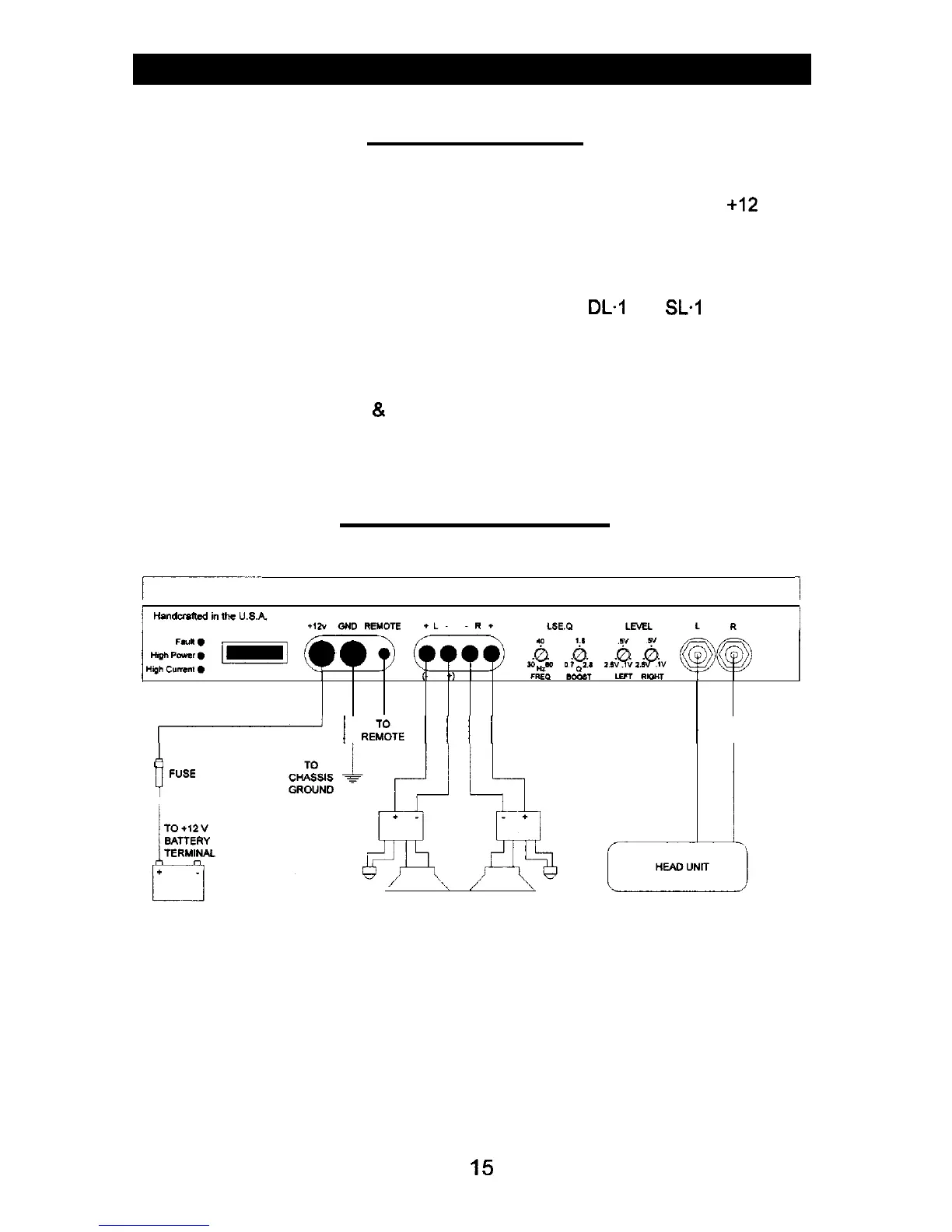

WIRING DIAGRAM
/------
1
,
1
R&E
1
/
/
/
I
I
B
FUSE
I
\
,
\
‘A
FULL RANGE SPEAKERS
15
To Next Page
