Soundstream TARANTULA ARS.1 Installation Guide

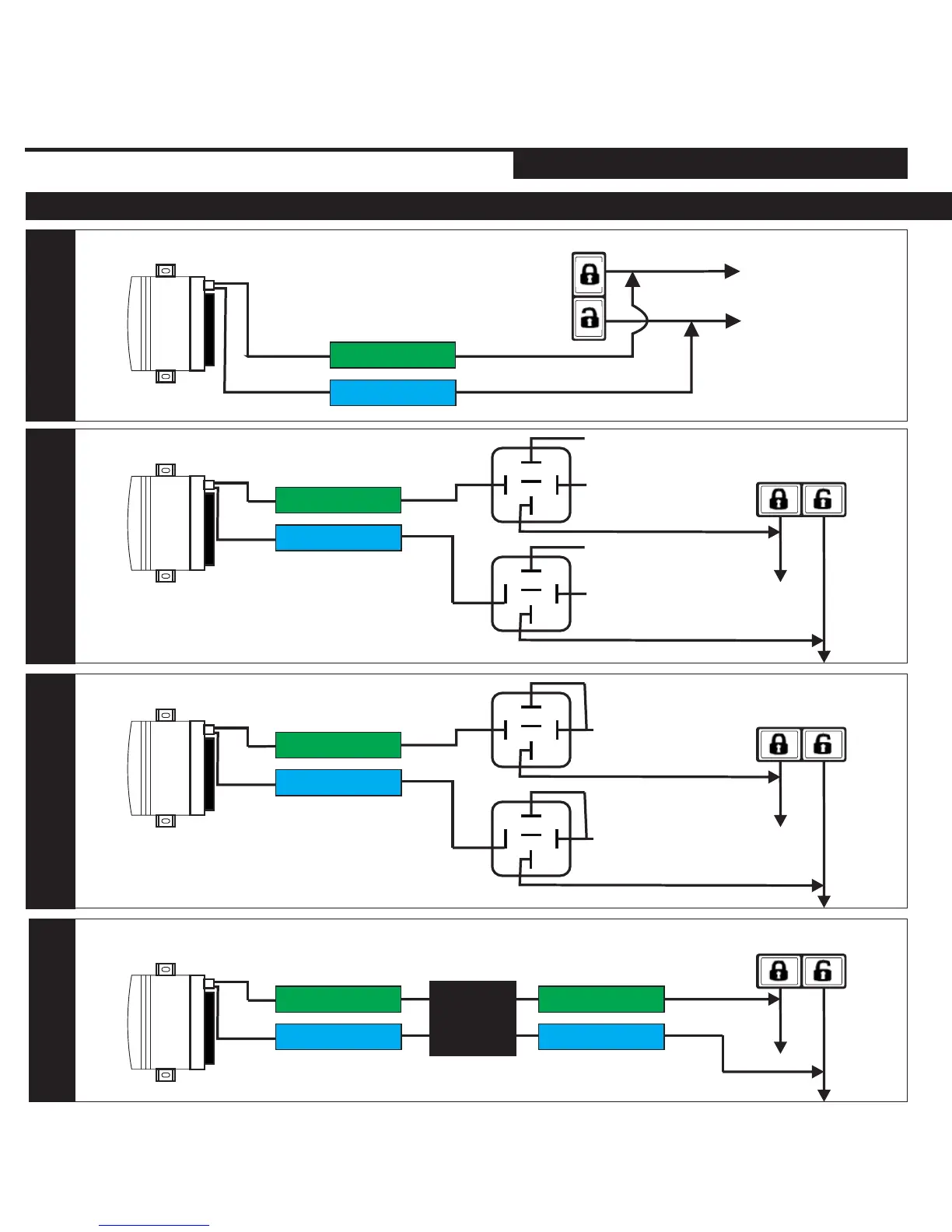

DOOR LOCK DIAGRAMS
Green
Vehicle's Lock/Unlock Switch
To Control
Relay or
Actuators
NEGATIVE DOOR LOCK
(LOW CURRENT)
Alarm and / or Starter
Module
Door lock Output
Vehicle's Lock/
Unlock Switch
USE SPDT 12v Relay
Blue
NEGATIVE DOOR LOCK
(LOW CURRENT)
Ground
Ground
12volts
12volts
87
86
85
87a
30
87
86
85
87a
30
Alarm and / or Starter
Module
Door lock Output
Blue
Green
Vehicle's Lock/
Unlock Switch
USE SPDT 12v Relay
POSITIVE DOOR LOCK
(LOW CURRENT)
12volts
12volts
87
86
85
87a
30
87
86
85
87a
30
Alarm and / or Starter
Module
Door lock Output
Blue
Green
POSITIVE TYPE USING
INVERTER
Alarm and / or Starter
Module
Door lock Output
Blue
Green
VOLTAGE
INVERTER
Vehicle's Lock/ Unlock Switch
Blue
Green
PAGE 18
INSTALL MANUAL
RELAY DIAGRAMS
ARS.1
SYSTEM PROGRAMMING - Menu 1
PAGE 19
INSTALL MANUAL
RELAY DIAGRAMS
Vehicle's Lock/
Unlock Switch
USE SPDT 12v Relay
NEGATIVE ONE WIRE
DOOR LOCKS
Ground
Ground
12volts
12volts
87
86
85
87a
30
87
86
85
87a
30
Alarm and / or Starter
Module
Door lock Output
Blue
Green
Unlock Resistor
Lock Resistor
Lock/ Unlock Switch
USE SPDT 12v Relay
REVERSE POLARITY DOOR
LOCK SYSTEM
12volts
12volts
Alarm and / or Starter
Module
Door lock Output
Blue
Green
87
86
85
87a
30
87
86
85
87a
30
x
x
x
x
USE SPDT 12v Relay
AFTER-MARKET DOOR
LOCK ACTUATORS
12volts
12volts
Alarm and / or Starter
Module
Door lock Output
Blue
Green
87
86
85
87a
30
87
86
85
87a
30
Ground
Ground
DOOR LOCK DIAGRAMS
ARS.1
