rear view camera.
Note:
Only use
groundless loudspeakers.
Use
only loudspeakers
of
minimal 40Watt, using fewer watts may
result
in
damaging
your loudspeakers
at higher
volumes.
Use
4-8
0
(Ohm impedance)
loudspeakers only;
using higher or
lesser
impedance may
damage the unit.
Do
not use
3-cable loudspeakers
and do not connect the
loudspeakers minus to the car
body (GND). The unit is using a BTL circuit and each
loudspeaker
must be connected
with
insulated cables
according the diagram.
Loudspeaker cables
and/or
optional external
power amplifiers
must
always
be about
30cm away from the antenna and/or antenna extension parts.

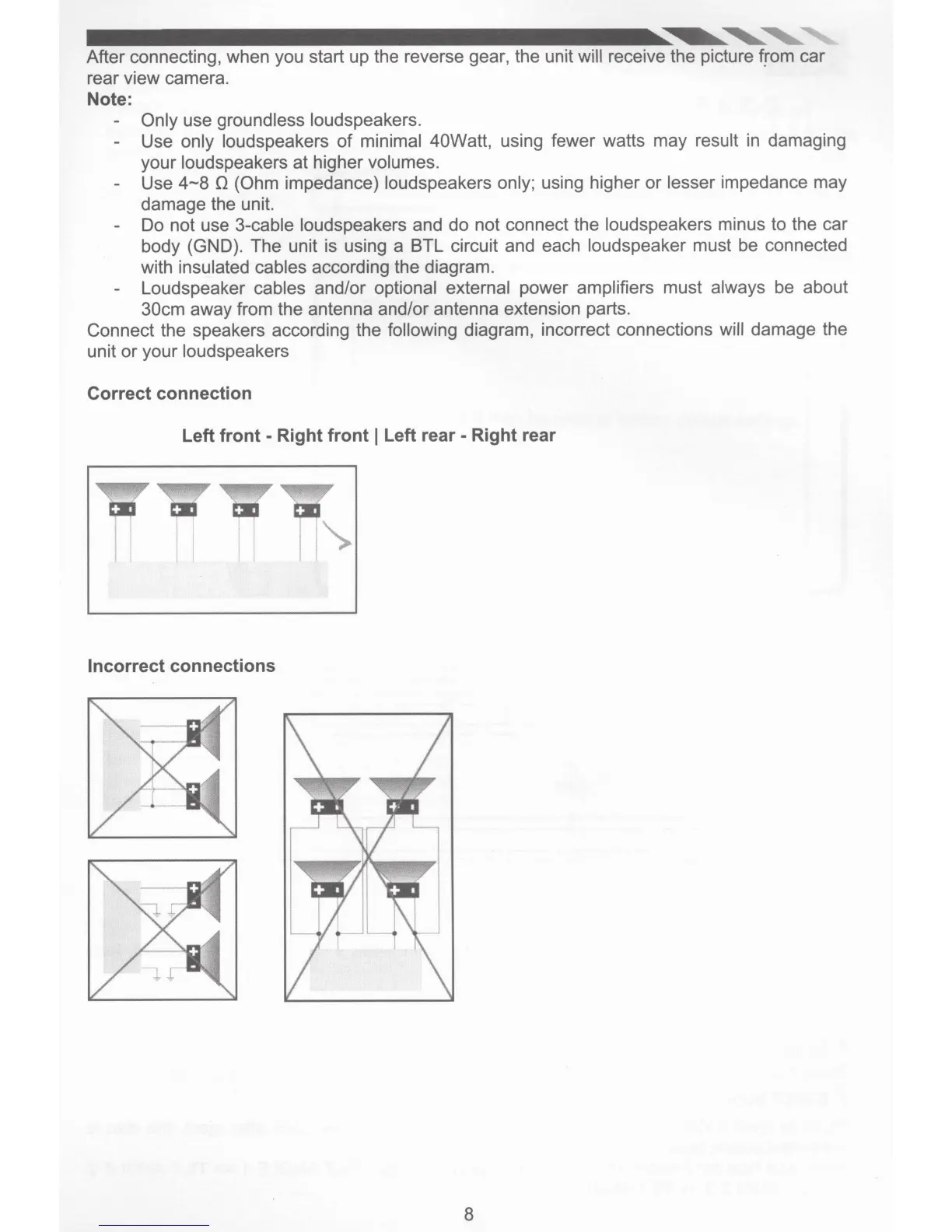

Connect the speakers according the following
diagram, incorrect connections
will
damage the
unit or your
loudspeakers
Correct connection
Left
front-
Right front
1
Left
rear-
Right rear
Incorrect
connections
8
