Source 1 S1-THEH21NS User Manual

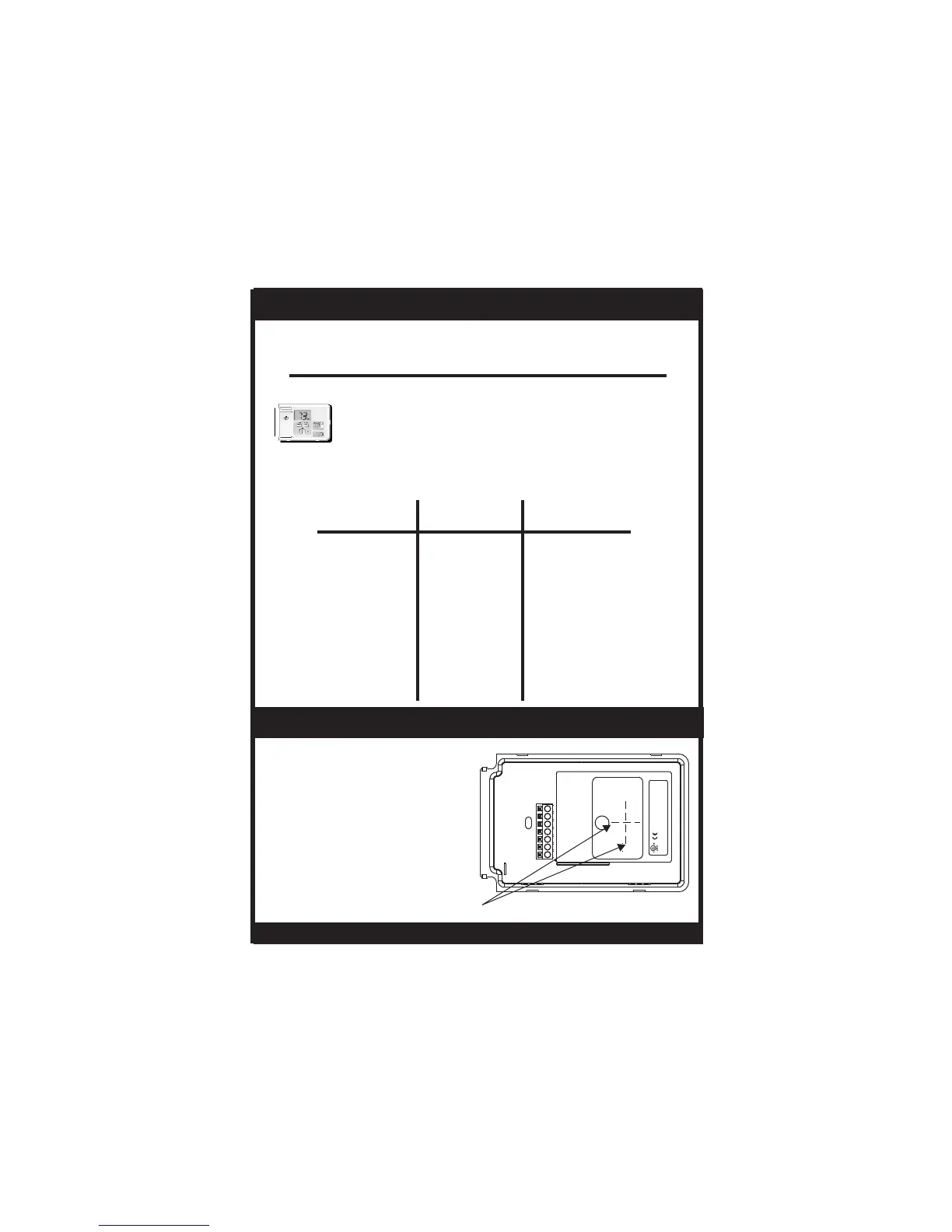

Wire Connections
If the terminal designations on your old
thermostat do not match those on the
new thermostat, refer to the chart below
or the wiring diagrams that follow.
Wire from the
old thermostat
terminal marked
Function
Install on the
new thermostat
connector marked
(Energize to Heat)
C
Rc, R, M, Vr, A
Y1 or Y
W1, W or H
G or F
B
O
Common
Power
Cooling
Auxiliary Heat
Fan
Rev. Valve
Rev. Valve
C (optional)
R
Y
W
G
B
O
(Energize to Cool)
A label is provided on the
backplate that prevents drafts
originating inside the wall from
entering the thermostat.
These drafts, left unchecked, may
cause incorrect room temperature
readings.
Please do not remove this label
from the thermostat. Insert the wires
through the slots provided in the label
as shown in Fig. 1.
Thermal Insulating Sheet
Wire Slots
Page 12
OWNER'S MANUAL
S1-THEH21NS
4Z95
MODEL: S1-THEH21NS
97061606
MADE IN CHINA
USE SIZE “AA”
ALKALINE BATTERIES
C
R
Y
W
G
B
O
