Southbend BECT-24 - Product Dimensions and Electrical Data; Dimensional Drawings and Measurements; Electrical Characteristics Table

1100 Old Honeycutt Road, Fuquay-Varina, NC 27526
(919) 762-1000 www.southbendnc.com
Models:
www.yatesgd.com www.yatesgraphicdesign.com
 BECT-24  BECT-30  BECT-40
INTENDED FOR COMMERCIAL USE ONLY.
NOT FOR HOUSEHOLD USE.
Form BECT Rev 0 (01/07)

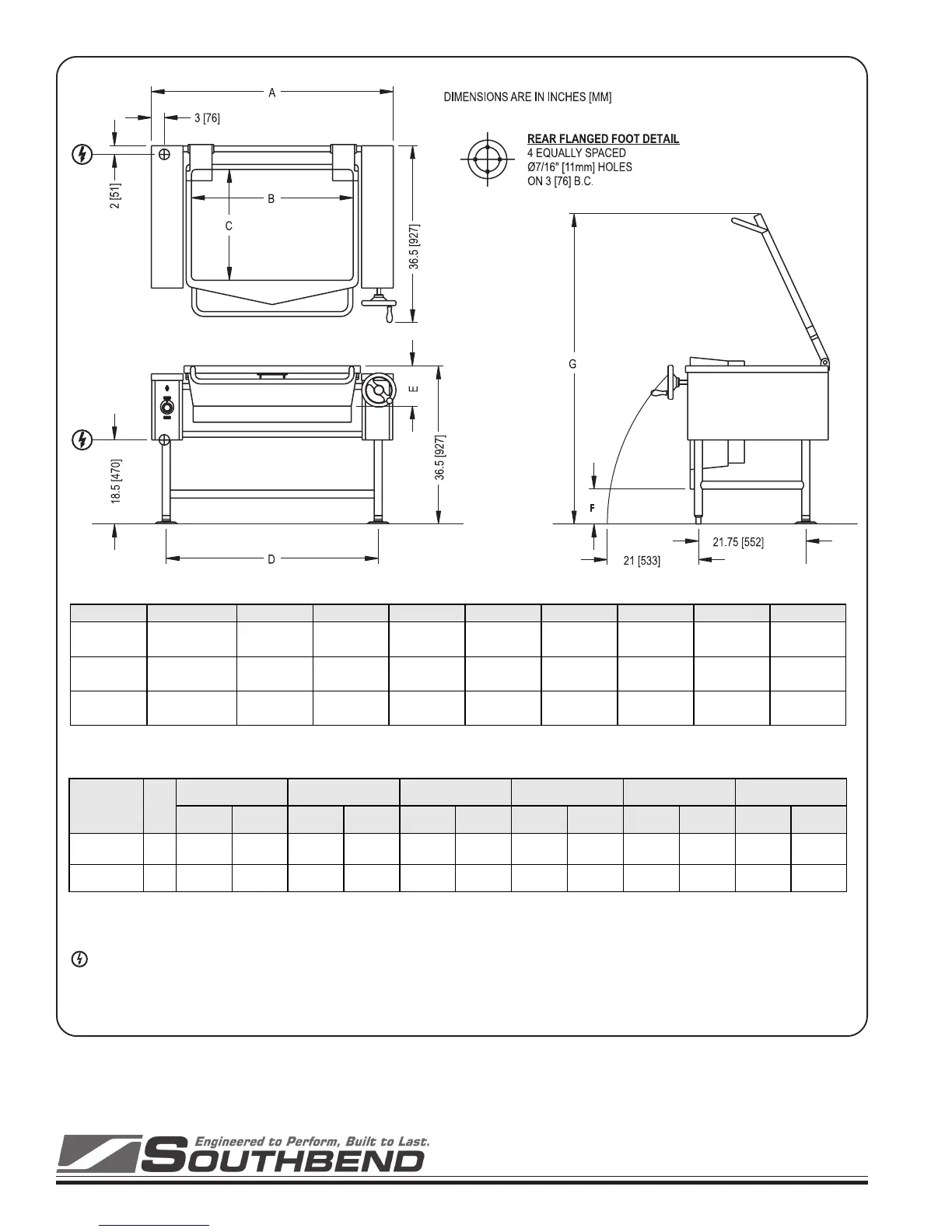

MODEL CAPACITY UNITS A B C D E F G
BECT-24
24 Gallons
(91 liters)
inches
(mm)
50.5"
(1283)
33.75"
(857)
23.125"
(587)
43.625"
(1108)
7"
(178)
11"
(279)
66"
(1676)
BECT-30
30 Gallons
(114 liters)
inches
(mm)
50.5"
(1283)
33.75"
(857)
23.125"
(587)
43.625"
(1108)
8.75"
(222)
11"
(279)
66"
(1676)
BECT-40
40 Gallons
(152 liters)
inches
(mm)
66.5"
(1689)
49.5"
(1257)
24"
(610)
59.5"
(1511)
8.75"
(222)
11"
(279)
67"
(1702)
MODEL PH
208V 220V 240V 380V 415V 480V
KW AMP KW AMP KW AMP KW AMP KW AMP KW AMP
BECT-24
BECT-30
3 18 50.0 18 45.2 18 43.3 18 27.3 18 25.0 18 21.6
BECT-40 3 27 75.0 27 67.8 27 65.0 27 41.0 27 37.6 27 32.5
SERVICE CONNCETIONS
– ELECTRICAL CONNECTION: As specified by dataplate
ELECTRICAL CHARACTERISTICS
DIMENSIONS
