SETUP AND OPERATION
5
SETUP AND OPERATION

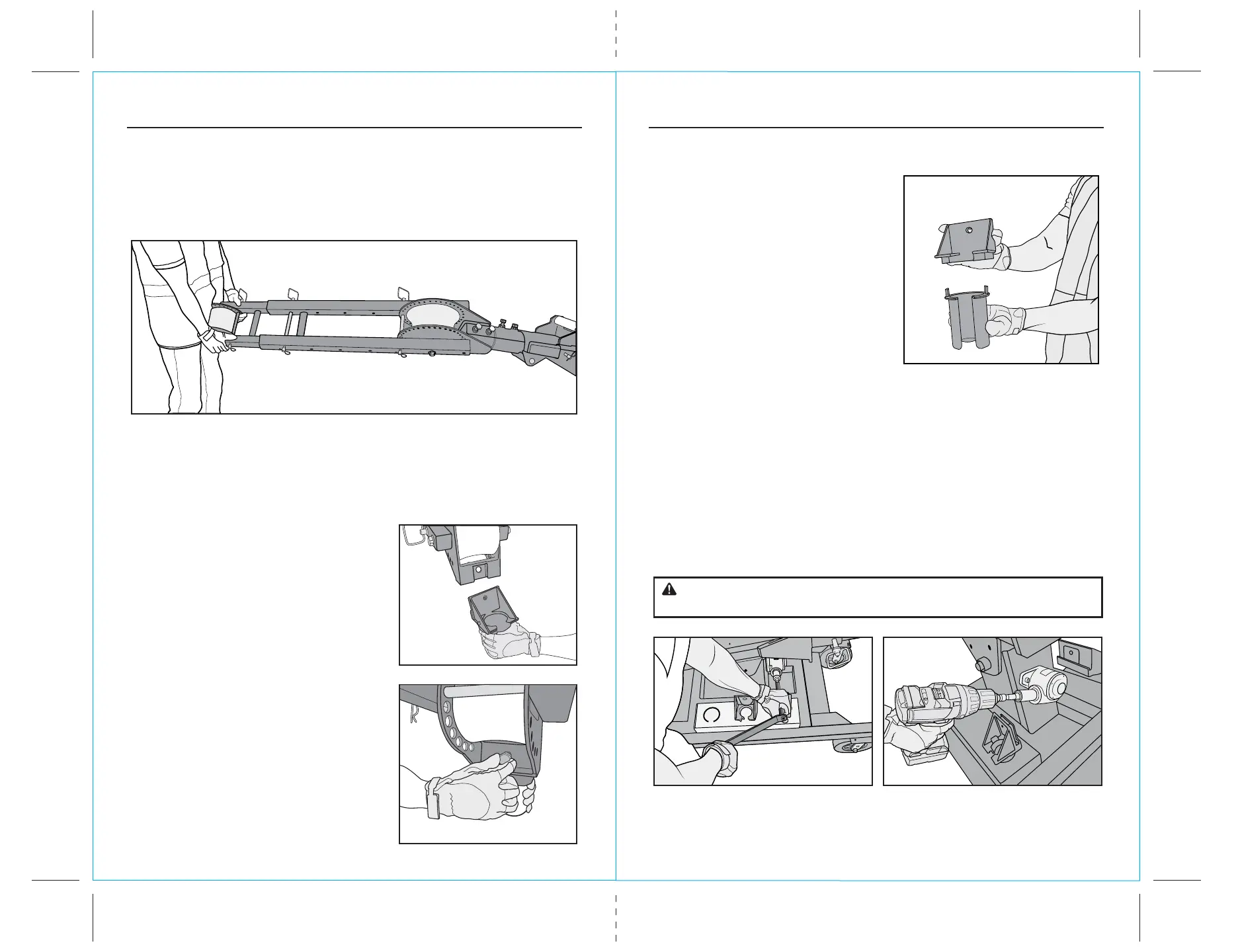

To change Front Roller Pivot position, loosen 15/16” bolts
on Cylinder Neck (13) and rotate Front Extension 180°,
then re-tighten Cylinder Neck Bolts. (Fig.4).
2. Remove 8 ½” by ½” hitch pin (8) and swing front roller pivot (6) up.
4. Screw in and hand-tighten 5/8”
adaptor bolt (5). (Fig.6).
ATTACHING CONDUIT ADAPTORS cont. ATTACHING CONDUIT ADAPTORS cont.
(Fig. 6)
(Fig. 8) (Fig. 9)
5. For most underground pulls the
bottom half of the adapter can be
removed by unscrewing the two
side Allen screws. (Fig. 7).
PULLING OUT OF THE GROUND OR PANEL
1. Always wear gloves and eye protection when working with pullers.
2. Attach proper conduit adaptor.
3. Use manual hand crank on elevation control (21) to manually
adjust puller to level horizontal position by turning clockwise or
counter clockwise. (Fig. 8)
The use of an 18-volt drill on low setting with 7/16 nut driver can
be used to raise or lower puller to horizontal position. (Fig. 9)
(Fig. 7)
(Fig. 4)
Drill should be in low gear with clutch engaged to prevent damage
to gearing and prevent wrist injury.
CAUTION:
3. Install desired conduit adapter
(size 2, 2 ½, 3, 3 ½, 4). (Fig. 5).
(Fig. 5)
