Southwire Maxis XD10 - Setup and Operation: Assembly and Adapters; Puller Assembly; Attaching Conduit Adaptors

8.5H x 5.5”W
3
4
DESCRIPTION OF OPERATION
IDENTIFICATION
The Maxis
®
XD10 is a cable puller intended to pull medium to large
wire through conduit. It sets up in only minutes and will pull up to
10,000 pounds.
SETUP AND OPERATION
Puller is shipped almost fully assembled.
There are two sets of enclosed casters; swivel and set.
Place swivel caster at front of puller opposite of the gearbox.
Place set casters at gearbox end and secure all casters with
enclosed bolts,
washers and lock nuts.
(Fig.1).
Attach forward main
extension by securing
with four 15/16” bolts
to the cylinder neck.
1. For underground pulls front roller pivot mount plate (housing bracket)
(4) must be facing down (Fig. 2). For overhead pulls the front roller
pivot mount plate must be facing up. (Fig. 3).

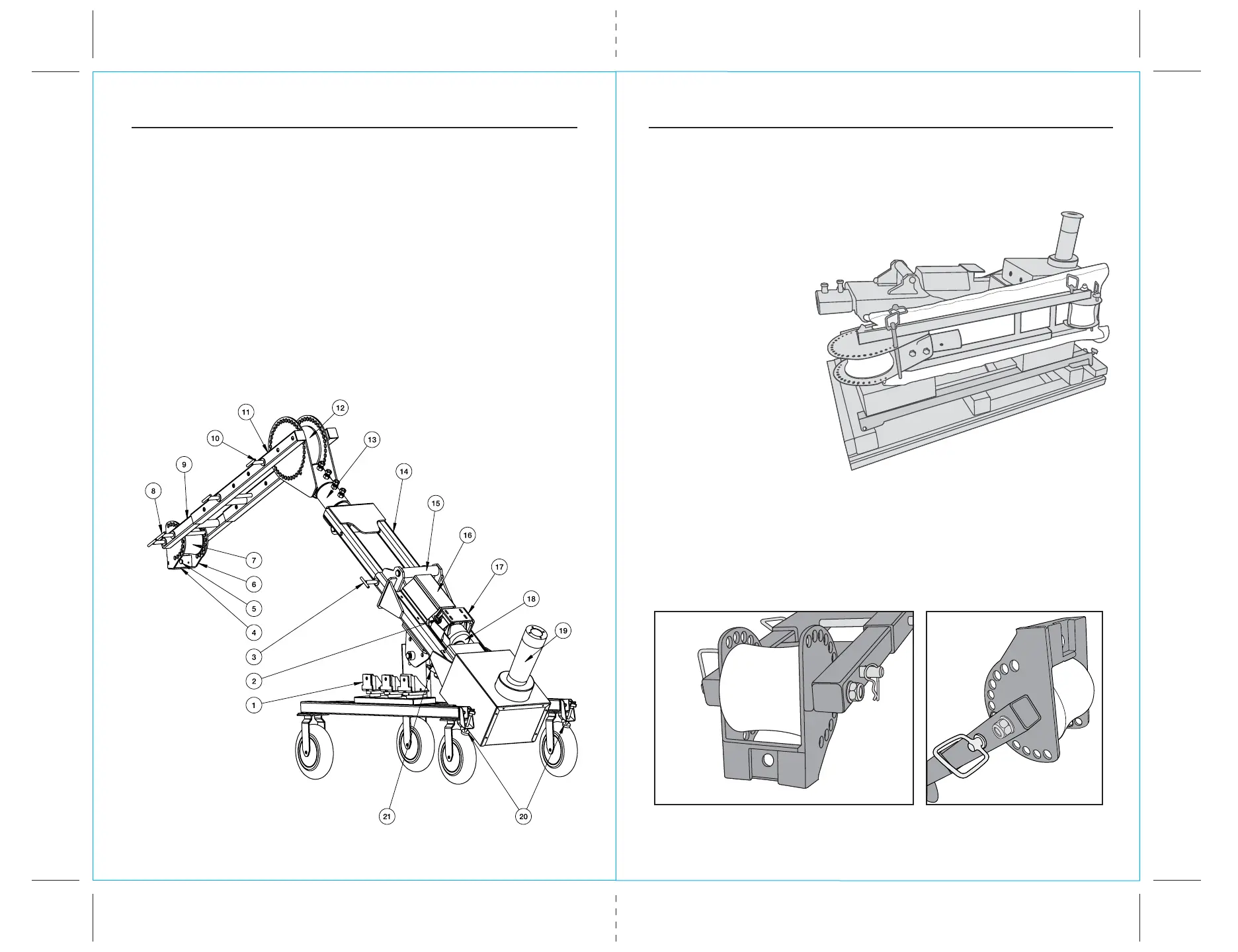

ASSEMBLY
ATTACHING CONDUIT ADAPTORS
1. Conduit Adaptors (size, 2, 2
1
/2 , 3, 3
1
/2 , 4 inch)
2. High/Low Switch
3. Main Hitch Pin
4. Adaptor Housing Bracket
5. Adaptor Bolt
5
/8 inch
6. Front Roller Pivot
7. Front Roller
8. Front Roller Hitch Pin
9. Front Extension
10. Front Extension Hitch Pin
11. Front Extension
12. Main Roller
13. Cylinder Neck
14. Mid-Frame
15. Idler Shaft
16. Motor Cover
17. Motor Bracket
18. Motor
19. Capstan
20. Brake
21. Elevation Control
(Fig.1)
(Fig. 2)
(Fig. 3)
