Southwire Maxis XD10 - Overhead Pull Execution; Overhead Pull Power and Operation; Rope Tensioning

8.5H x 5.5”W
15 16

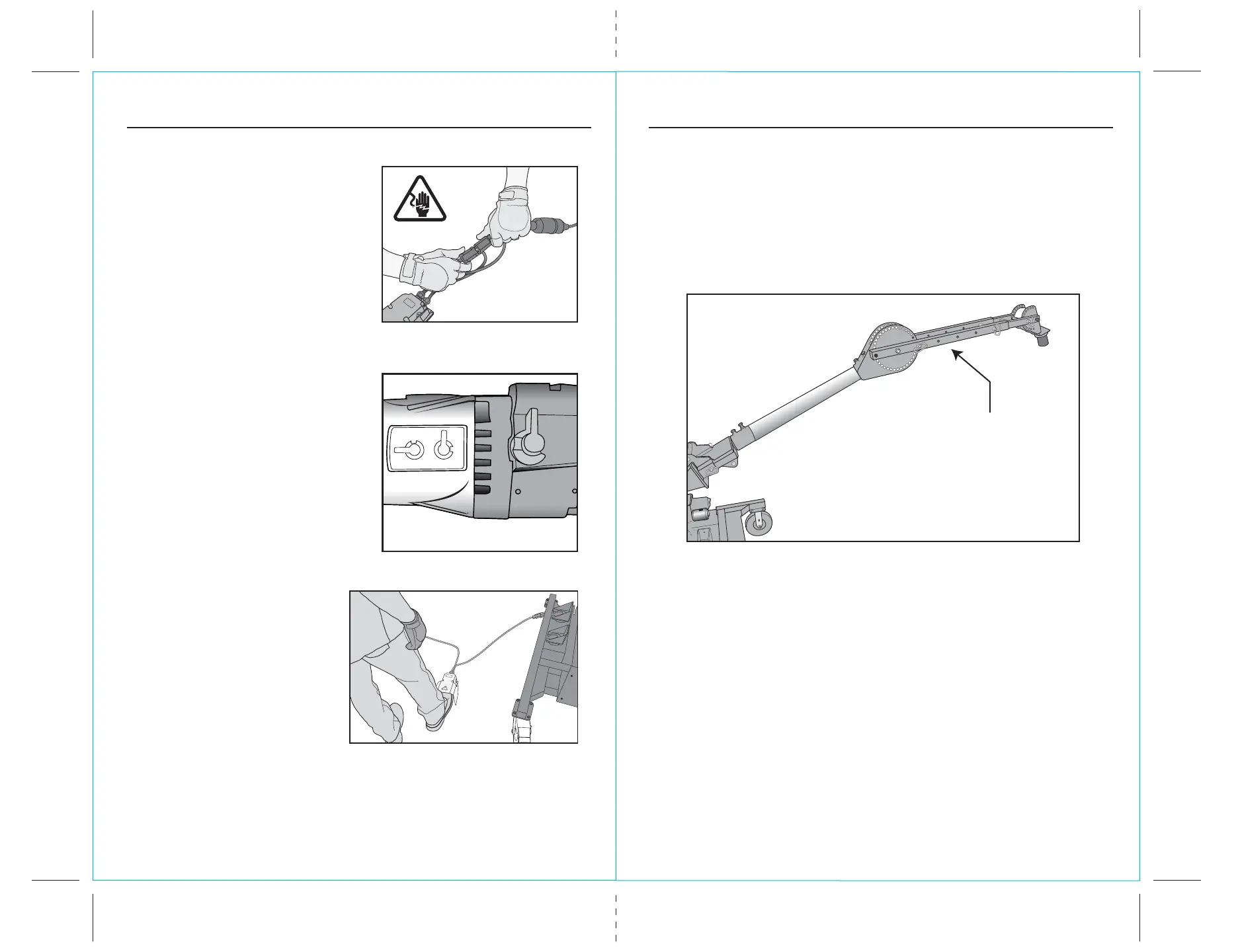

SETUP AND OPERATION
OVERHEAD PULL cont.
15. Plug puller power cord into
pigtail adaptor than plug pigtail
adaptor into foot switch and
plug into the power source.
(Fig. 35)
16. Prior to starting motor insure
motor is set on desired gear
position using the high/low
switch (2).
(Fig. 36)
(Fig. 36)
17. Start the electric motor by
depressing foot switch.
(Fig. 37)
18. Pull on the rope to produce some tension.
The rope will begin to advance.
(Fig. 37)
TROUBLE SHOOTING
1. To add extra length to the Front End Extension, loosen 15/16” bolts
from the Cylinder Neck (13) and remove the Cylinder Neck and set
aside.
Insert a 3-inch rigid conduit cut to your desired length.
9LWSHJL4HPU9VSSLYH[[OLLUKVM[OLJVUK\P[HUKÄYTS`[PNO[LU
all (4) 15/16” bolts. (Fig. 38)
MAINTENANCE
࠮
.LHYIV_PZÄSSLK^P[OOPNO[LTWLYH[\YLS\IYPJH[PUNNYLHZL
No maintenance is required.
(Fig. 38)
ADDITIONAL HELP
(Fig. 35)
High
MOTOR SWITCH
Low
Front End Extension
