Sovereign FD2402 - Assembly Instructions; Step-by-Step Assembly

13

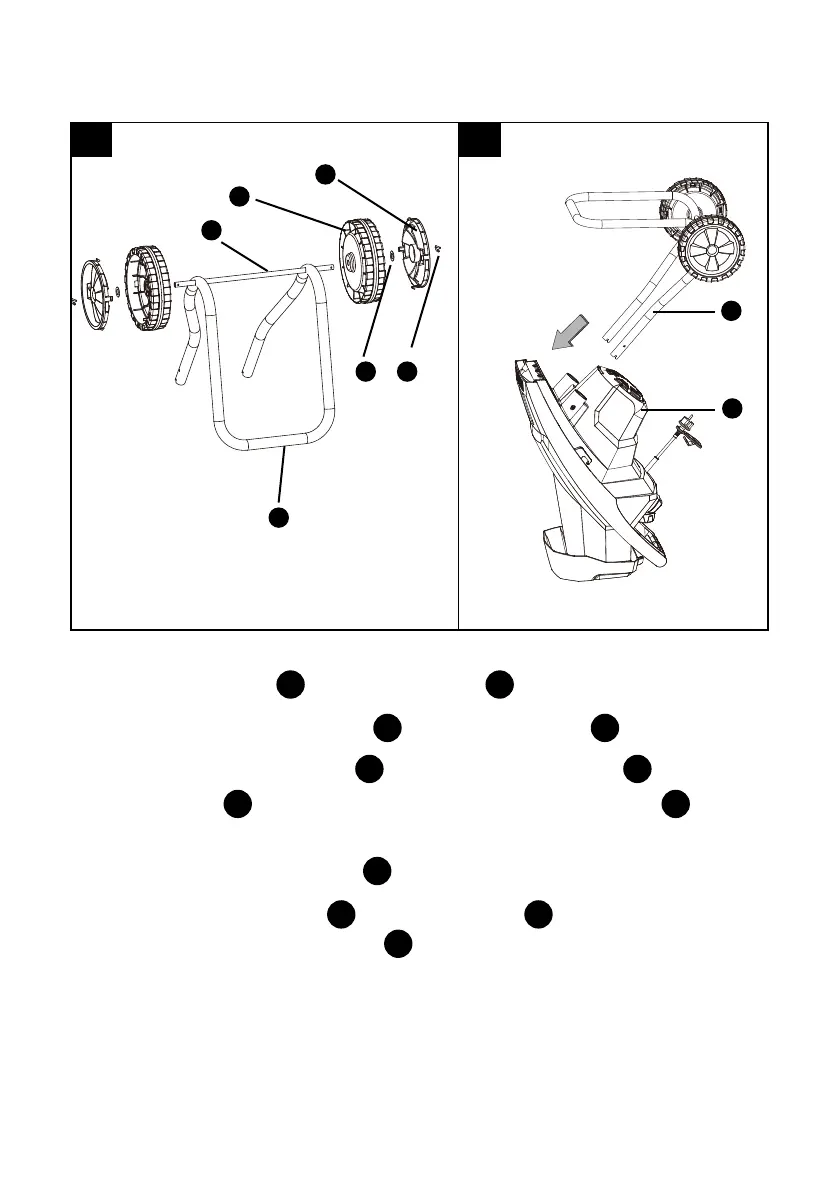

Assembly
• Slide the axle
12
into the chassis
6
.
• Mount the two wheels
5
onto the chassis
6
.
• Slide the two wheels
5
onto the chassis axle
12
. Slip the
washers
14
onto the axle and push the split pins
15
through the appropriate holes in the axle.
• Clip the wheel covers
13
onto the wheels.
• Rest the shredder
16
on the hopper
1
(upside down).
Push the wheel chassis
6
into the two holes in the
plastic housing of the shredder. Secure with the two
screws provided.
5
6
6
13
14 15
16
12
2 3
