You can use [UP] [DOWN] button to select single data stream items to view item of live

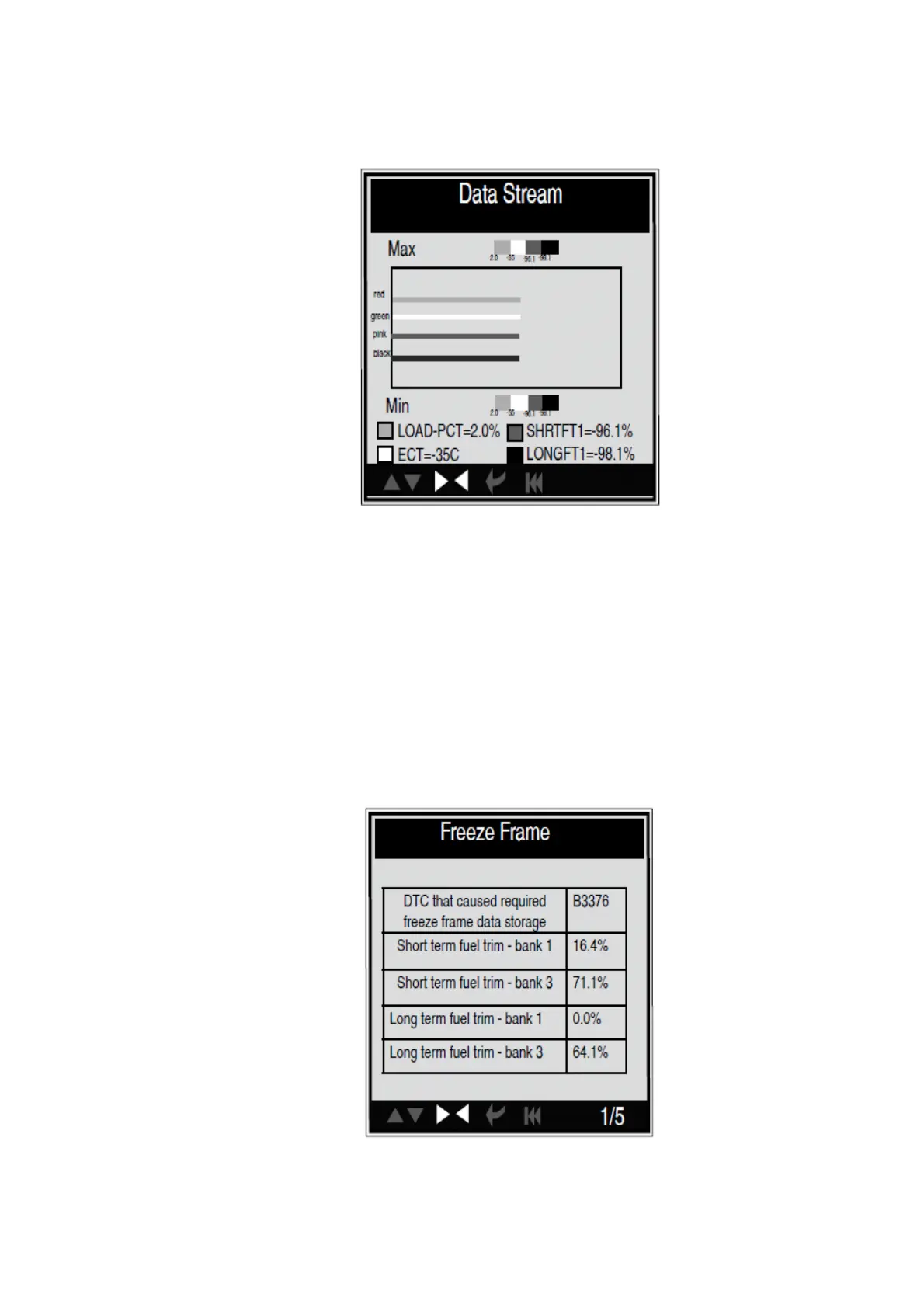

data with a graph, and press [ENTER] button, the screen will display the interface as
shown below:
Note: There are four lines with different colour: red, green, blue, black, they stand for
different data-stream chosen.
Press [ESC] to return to Diagnostic Menu. You can view all data stream items or select a
certain item of live data with a graph.
4.2.5 View Freeze Frame
When an emission-related fault occurs, certain vehicle conditions are recorded by the on-
board computer. This information is referred to as freeze frame data. Freeze Data is a
snapshot of the operating conditions at the time of an emission-related fault.
Note: if DTCs were erased, Freeze Data may not be stored in vehicle memory depending
on vehicle. Select [Freeze Frame] in main menu interface, the screen will display the
interface as shown below:
You can use [LEFT] [RIGHT] button to view the data. Press [ESC] to return to Diagnostic
Menu.
