Page 6 Spacerails, LLC. All rights reserved. Spacerails.com
CUT THE RAIL TO SIZE
26mm
73mm
79mm
162mm
174mm
275mm
313mm
416mm
420mm
487mm
Step 1: Measure each section and mark the cutting point with a pen.
Step 2: Cut each section according to your measurement. Make sure
to cut at a 90° angle.
Tip: To help avoid do-overs and using too much Rail, cut generously
(slightly longer than required) to begin with. You can always cut a
long rail shorter.
NOTES:

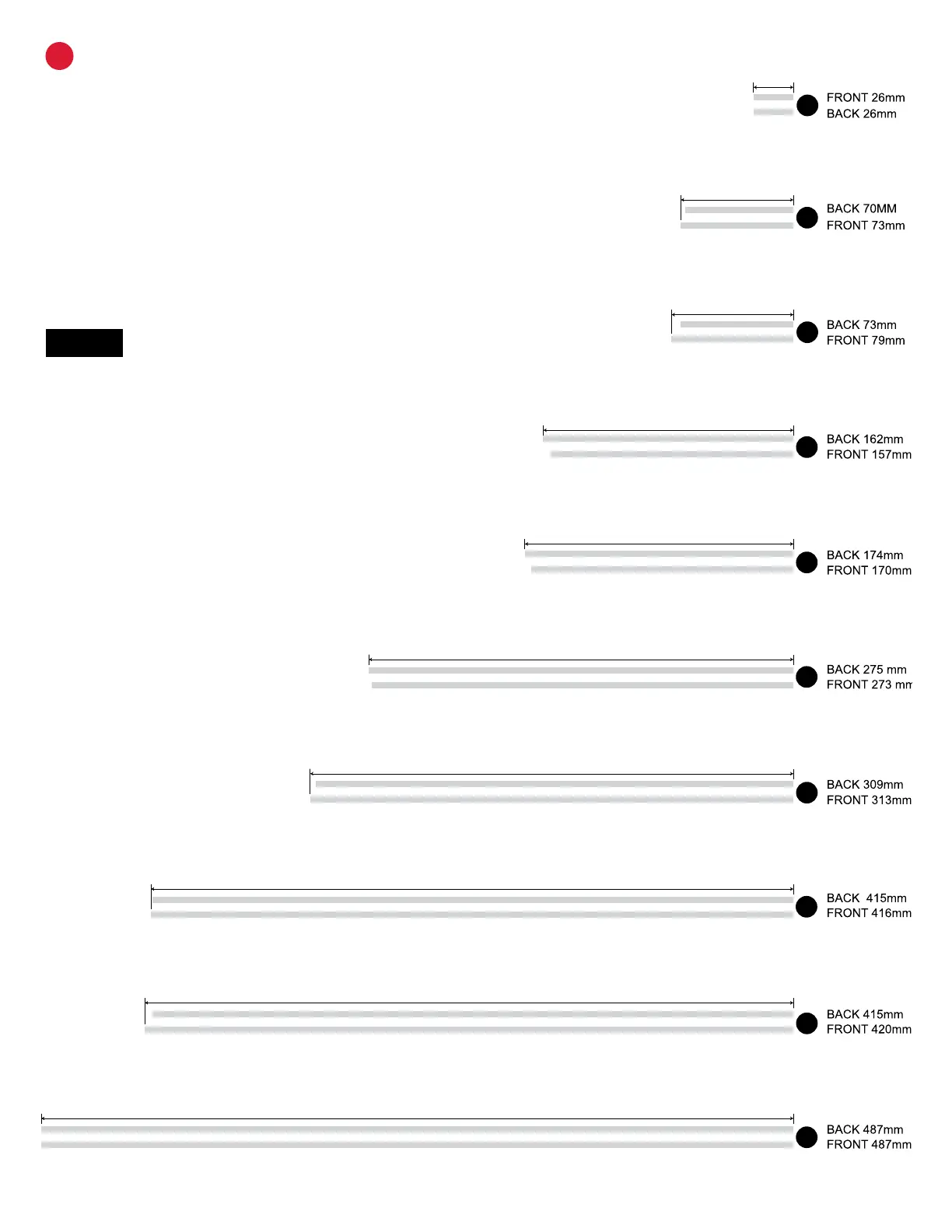

Illustration of Rail lengths is 1:2.84 or
(approximately 35%) of scale.
Please see the included addendum
showing the 1:1 ratio. This will help
with Rail cuts and positioning of Arms
and Corners.
G
