M

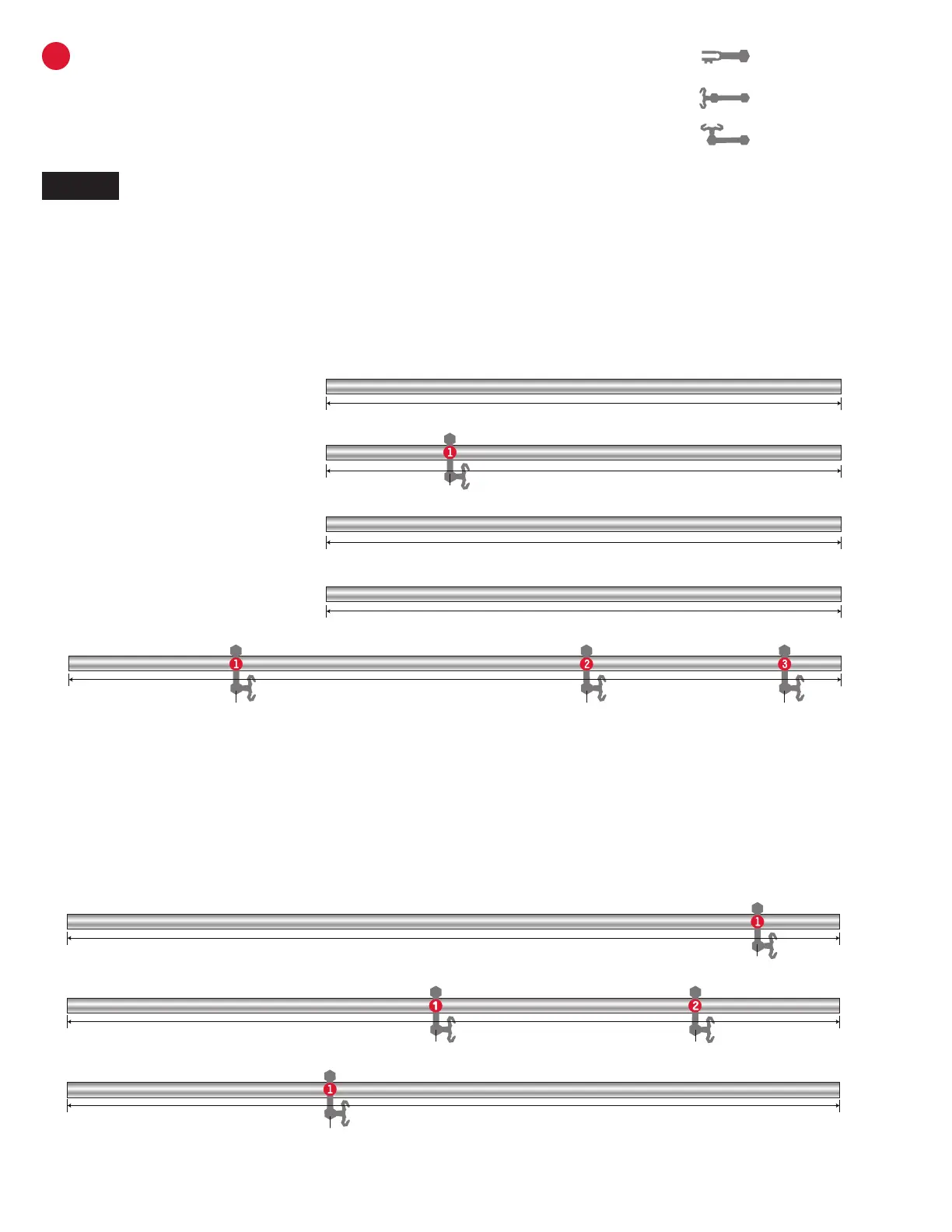

ARM PLACEMENT - LEVELS 2 & 3
Step 1: Place arms onto each shaft
for Levels 2 & 3.
NOTE:
Shaft lengths and rotation arms are
not to scale in the illustration. Shafts
and arm placement at 1:1 scale are
shown in the tri-fold.
Rotation Arm A
Rotation Arm B
Rotation Arm C
Level 3 Shafts
Level 2 Shafts
D
I
J
E
N
0 300mm
48mm
201mm 278mm65mm
0 200mm
0 200mm
0 200mm
0 200mm
A
C
H
0 300mm
102mm
0 300mm
143mm
244mm
0
300mm
268mm
To Next Page
