ASSEMBLE RAILS
[ 10 interlocking Loop section ]
This illustration has been
separated into two parts for more clarity.
M -2
G -1
X -1
X -2
AB -1
AA -1
U -1
S -1
AB -2
B -3
1st Floor
Exit 2

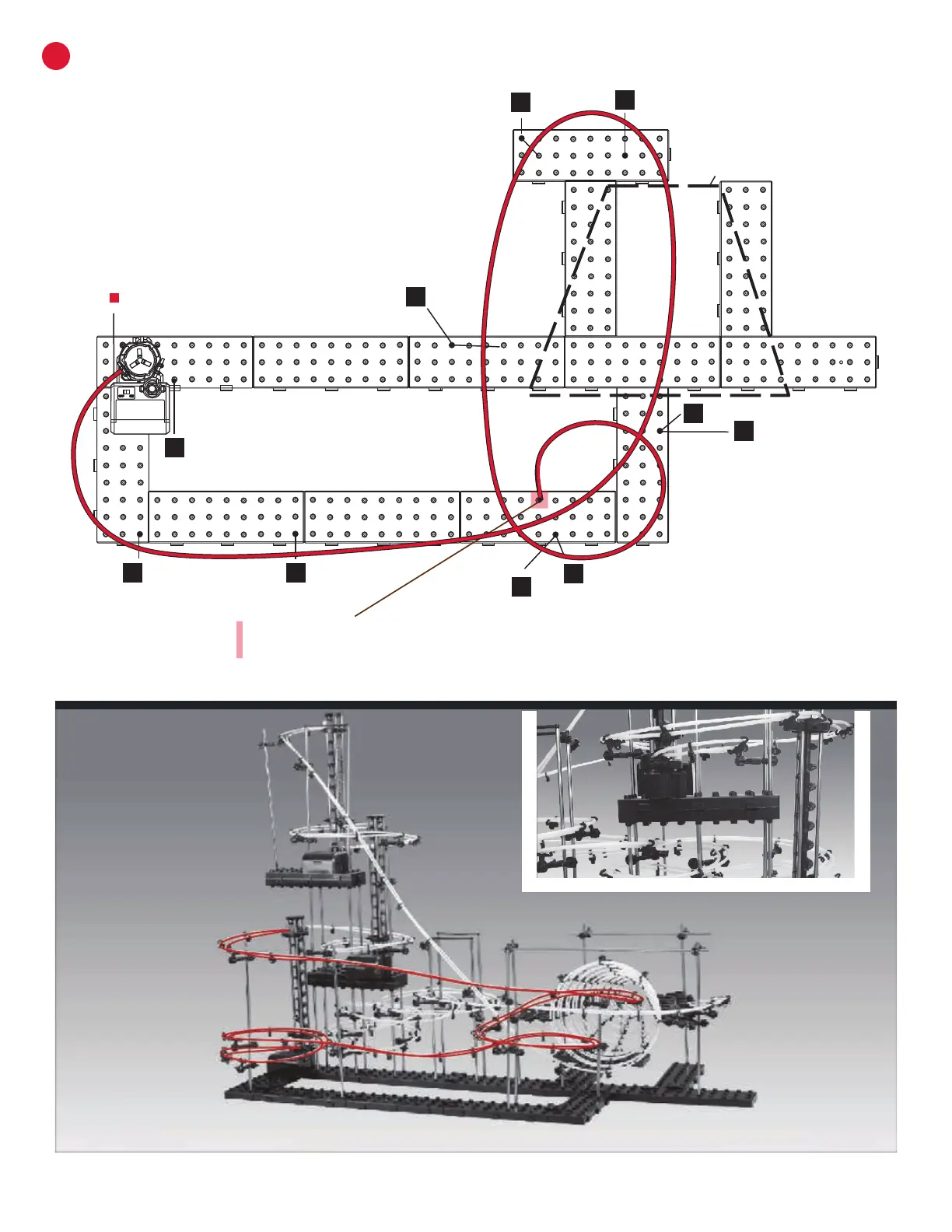

Step 5: Install 2 PCS of 450cm rail as shown.
Steps 5 & 6 are using the same 450cm rails.
(Step 6 is on the following page). Do not cut
the rail into separate pieces. The illustration
has been split for installation clarity.
X
To Next Page
