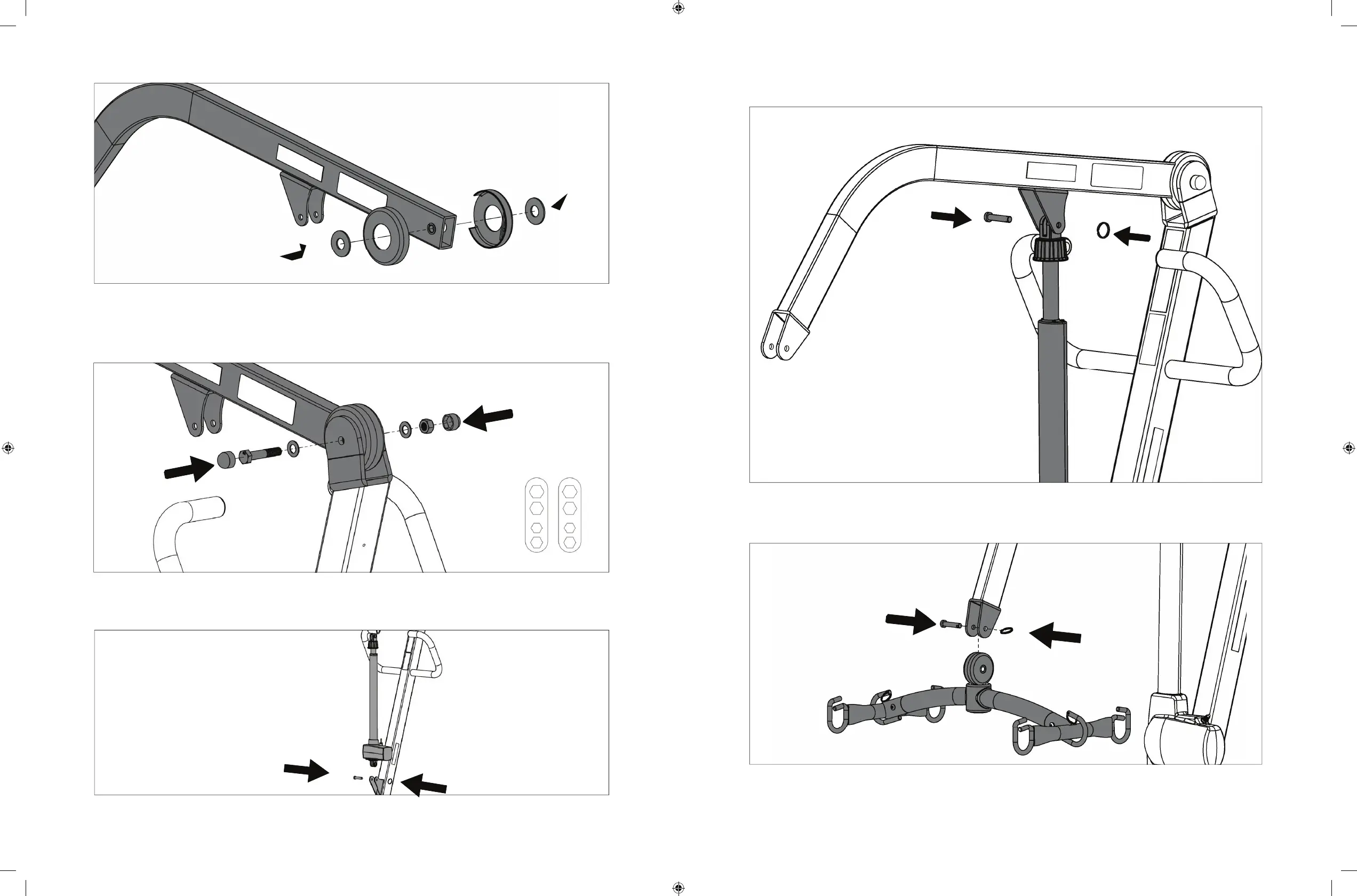

Step 7: Install the round plastic cover and plastic washers to the boom.
Step 8: Install the boom to the mast and align the holes. Then secure it by
reinstalling the bolt, washer and nut. Once the screw is tightened using the
wrench tools, reinsert the plastic cap.
Step 9: Secure the lower end of the actuator to the bracket on the mast using
a pin and retaining ring as follows.
Step 10: Secure the upper end of the actuator to the bracket on the boom
using a pin and retaining ring as follows.
Step 11: Secure the spreader bar to the boom using a pin and retaining ring
as follows.
