SR100 REMOTE CONTROL CAR ALARM SYSTEM
9
HARNESS LOCATION
Position the harness to the rear of the main alarm module and secure where
necessary to the v ehicle wiring using insulation tape.
Plug in the main harness connector to the rear of the alarm unit .
Do not fit the rubber boot to the alarm at this stage.

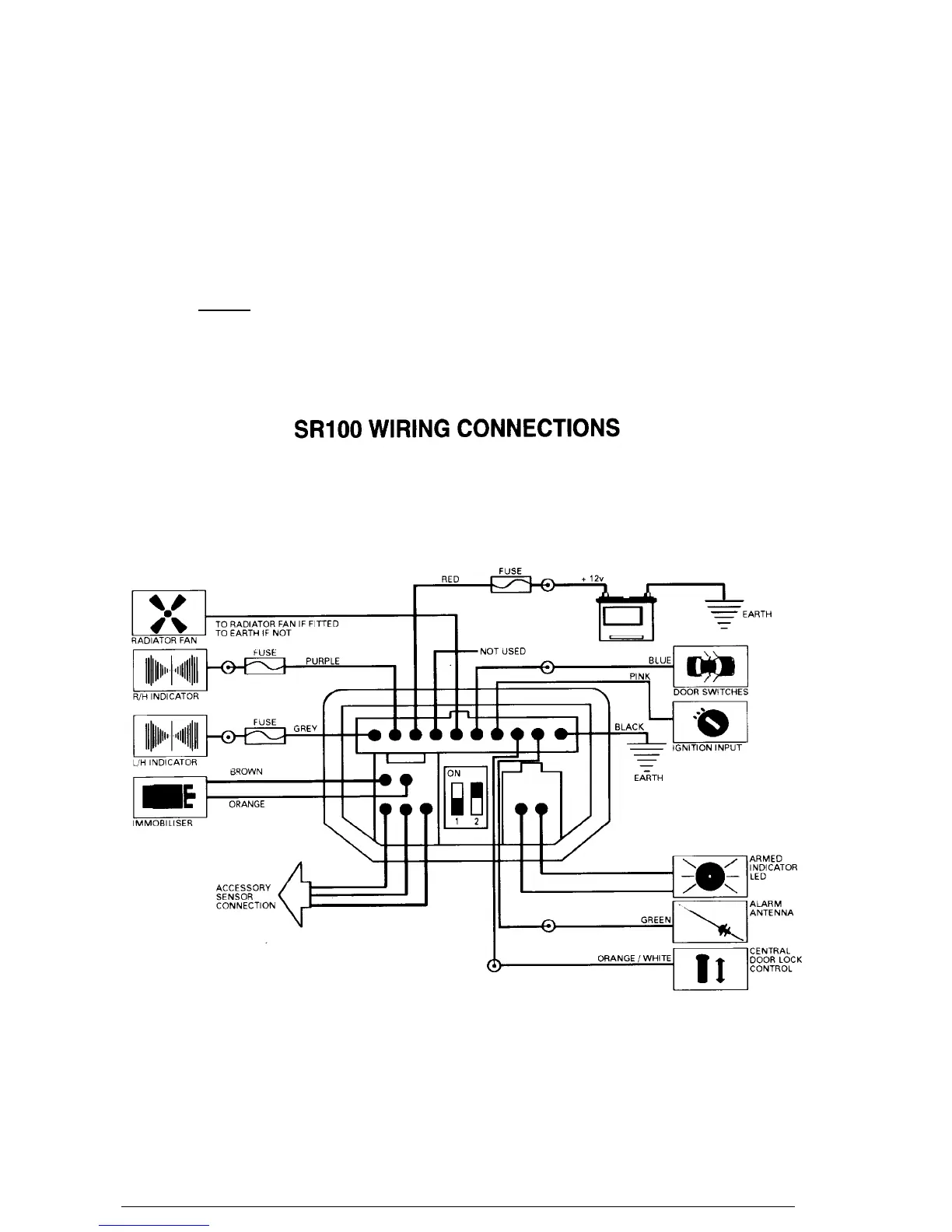

You can now make connections to the car wiring as shown.
All wires MUST be connected in the sequence outlined in these instructions.
