Speakman WS-3005 - Step 11: Install Shower Accessories; Step 12: Operate Diverter; Product Diagrams and Parts; Repair Parts List

11
Install Shower Accessories. Turn on water
supplies and check for leaks.
Note: Shower Accessories are not included and are
shown for reference only.
12
Operate Diverter between Shower Head and
Hand Held Shower. Check for leaks.

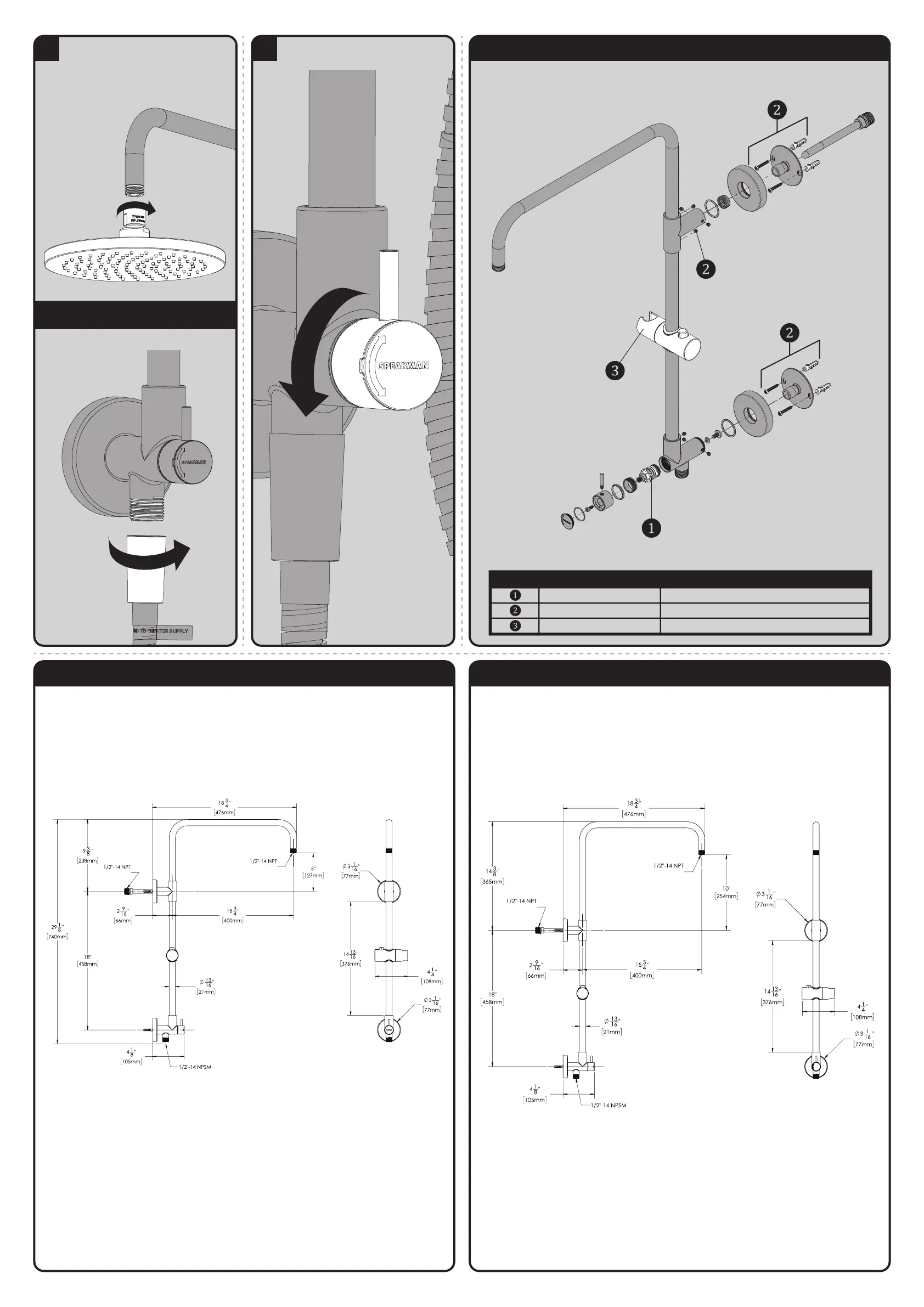

WS-3005 / WS-3010 REPAIR PARTS
SPEAKMAN
®
RPG05-106295 CARTRIDGE
RPG48-106204 MOUNTING HARDWARE AND SET SCREWS
RPG04-107286 WAND HOLDER
ITEM NO. PART NO. DESCRIPTION
(X7)
WS-3005 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
WATER SUPPLY
HOOK-UP
HOSE HOOK-UP
SHOWER HEAD
HOOK-UP
WS-3010 ROUGH-IN DIAGRAM
SPEAKMAN
®
DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.
WATER SUPPLY
HOOK-UP
HOSE HOOK-UP
SHOWER HEAD
HOOK-UP
