Specialized CRUX - Terra Seatpost

14
 Grease and install the M6 barrel nut (C) inside the seatpost.
 Grease and assemble the M6 bolt (A) and M6 cradle washer (B), then
install them in the upper cradle.
 Using a 5 mm Hex key, torque the M6 bolt (A) to 26.5 in-lbf / 3 Nm.
 Install the lower cradle, followed by the saddle (with greased rails) and
upper cradle assembly (G).
 Grease and assemble the M5 bolt (D) and M5 cradle washer (E), then
install the bolt and spacer through the seatpost bolt hole and through
the lower cradle (H).
 Grease and install the M5 nut (F) onto the M5 bolt (D).
 Adjust the saddle fore-aft position, then adjust the angle of the saddle
by turning the M6 bolt (A).
 With a 4 mm Hex key, torque the M5 bolt (D) to 55 in-lbf / 6.2 Nm, then
check the saddle angle. If the angle still needs to be adjusted, loosen
the M5 bolt (D), loosen or tighten the M6 bolt (A) accordingly, then
torque the M5 bolt again. Repeat until the saddle is at the desired angle.
If using a saddle without a central opening, bolt (A) can be
adjusted by inserting a 1.5 mm hex key through the holes on the
sides of the bolt head.

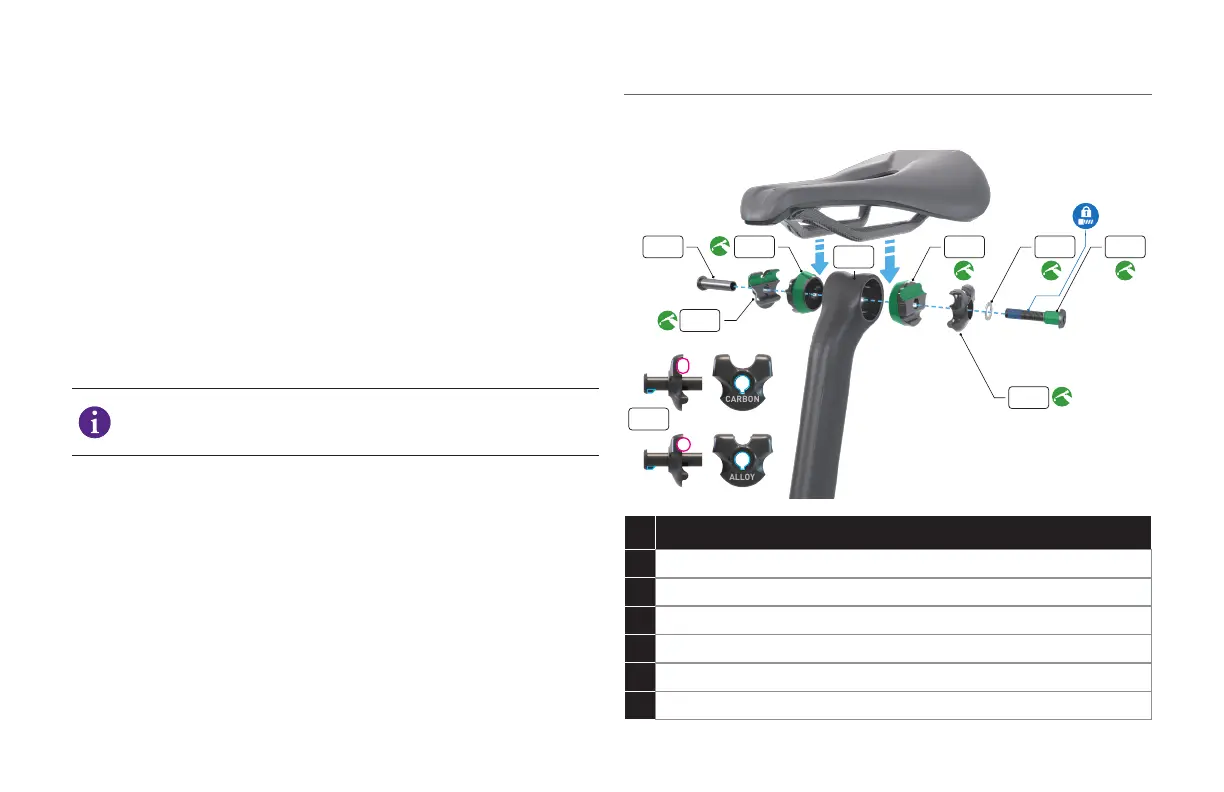

7.2. TERRA SEATPOST
CARBON
ALLOY
D
C
C
A A
C
F E
B
# DESCRIPTION
A
Inboard Rail Clamp
B
Seatpost
C Outboard Rail Clamp
D Bolt (Male)
E
Bolt (Female)
F Washer
