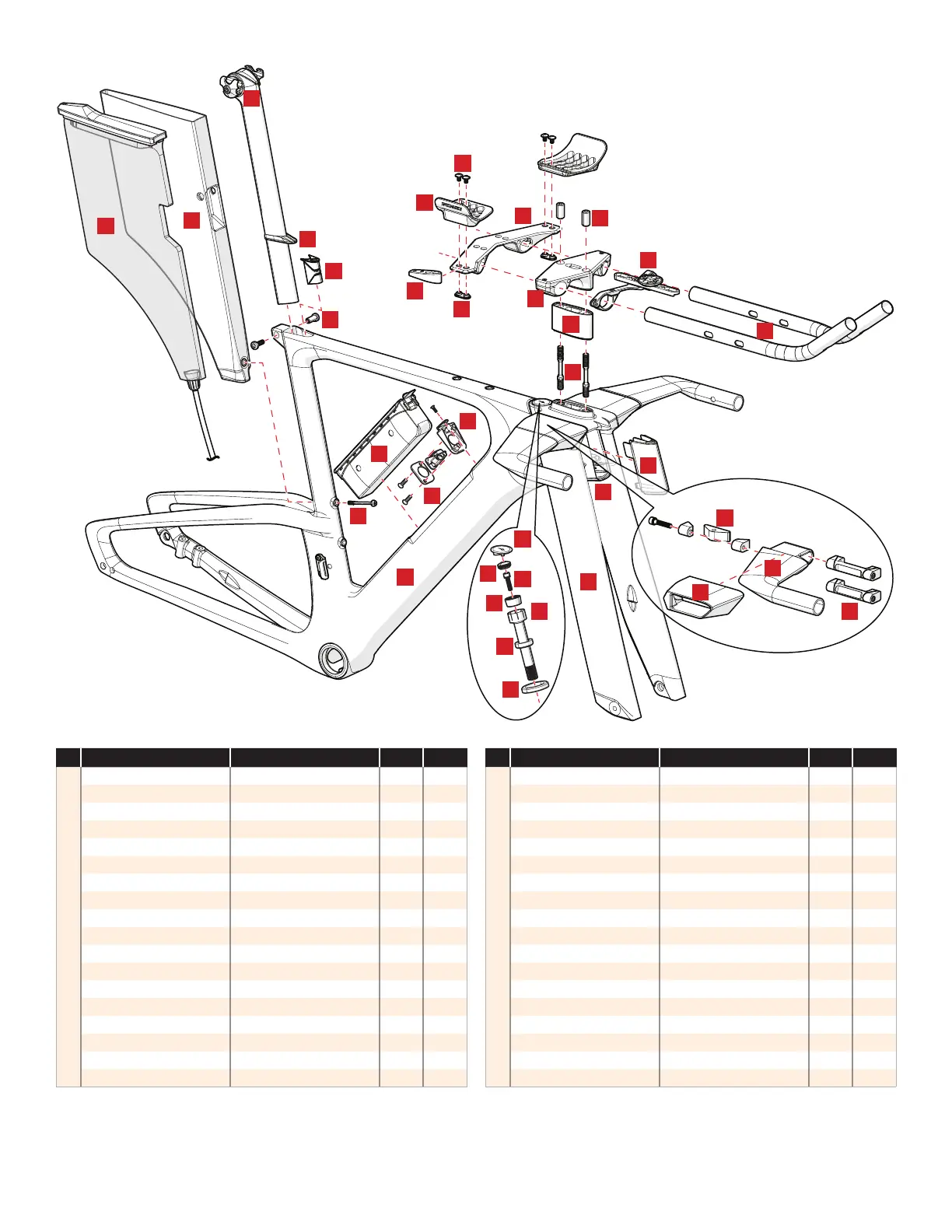

Specialized SHIV - Page 5

5
R
O
Q
P
T
U
V
Z
Y
X
AA
W
JJ
II
E
F
G
L
K
M
I
H
S
N
D
B
A
CC
DD
FF
GG
HH
EE
BB
C
J
DESCRIPTION TOOL SIZE in-lbf Nm
A FRAME
B FORK
C BASEBAR
D BASEBAR SPINDLE 5/6mm (one bolt / nut per spindle)
E BASEBAR WEDGE 5mm 120 13.5
F BASEBAR HOOD
G NOSECONE CLIP
H NOSECONE BRACKET 3mm 22 2.5
I TOWER STUDS 4mm hex / 8mm open 35 4.0
J SPACER STACK
K EXTENSION SOCKET 3mm 22 2.5
L TOWER NUTS 5mm 80 9.0
M BTA MOUNT
N CROSSBAR 3mm 22 2.5
O ARM CUPS
P ARM CUP WEDGE
Q ARM CUP BOLTS 3mm 45 5.1
R ARM CUP PLATES
DESCRIPTION TOOL SIZE in-lbf Nm
S EXTENSIONS
T SEATPOST (SADDLE CLAMP) 5mm 120 13.5
U SEATPOST WEDGE 5mm 55 6.2
V SEATPOST WEDGE COVER
W NUTRITION FUELCELL
X HYDRATION FUELCELL
Y RESERVOIR
Z RESERVOIR UPPER BOLT 5mm 35 4.0
AA RESERVOIR LOWER BOLT 5mm 35 4.0
BB HEADSET RUBBER COVER
CC HEADSET WEDGE CAP 5mm (reverse thread) 22 2.5
DD HEADSET WEDGE BOLT 4mm 26.5 3.0
EE HEADSET WEDGE
FF HEADSET STEERER SHAFT
GG UPPER HEADSET BEARING
HH LOWER HEADSET BEARING
II JCT A BRACKET 2mm 13 1.5
JJ JCT A COVER 2mm 13 1.5
