ASSEMBLE THE COVER AND CRANK
INFO: Before replacing the motor cover
and crank, check the front and rear light
functionality.

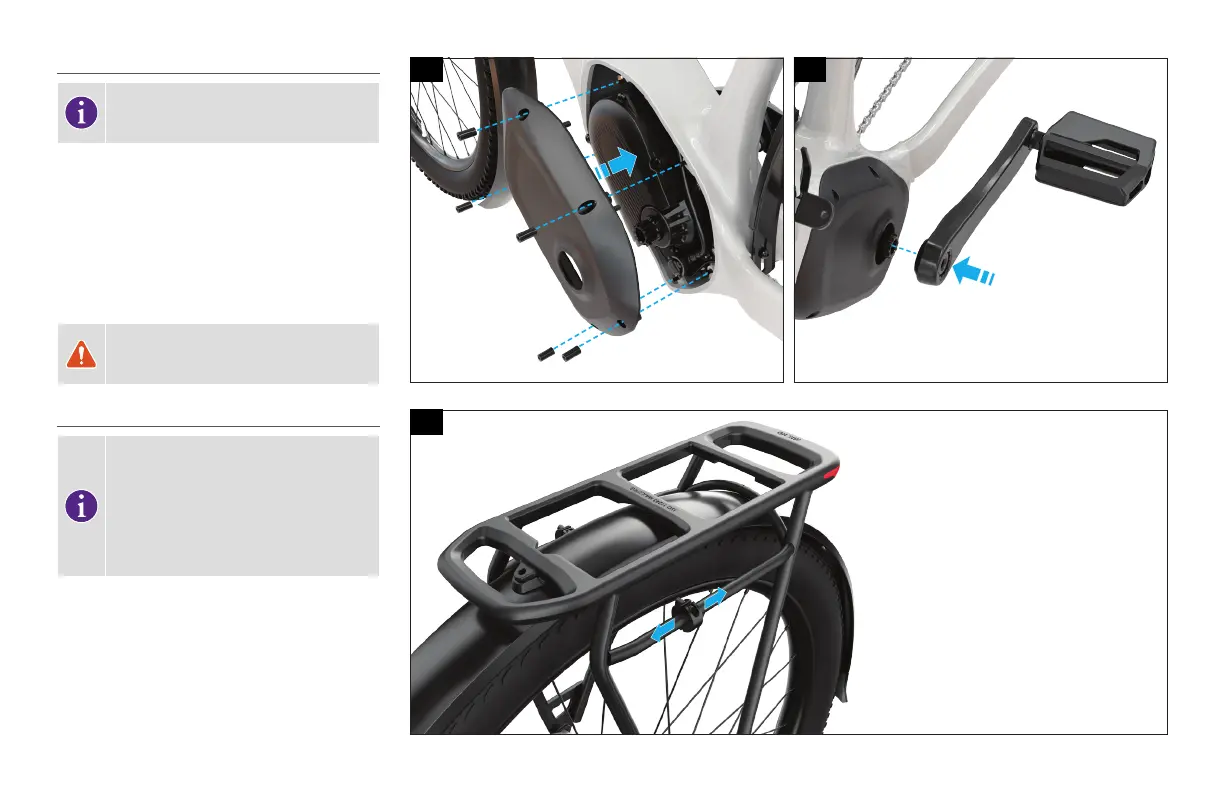

Fig. 15
Replace the non-drive side motor cover and nuts.
Using a T20 Torx key, torque the bolts to 1 Nm / 8.8
in-lbf
Fig. 16
Align and replace the non-dive side crank arm.
Using an 8 mm hex key, torque the crank bolt to 50 Nm.
WARNING! Be sure your battery is securely
installed and locked into place before
riding your bicycle.
RACK ACCESSORY MOUNTS
INFO: The top plate of the rear rack offers
the unique MIK HD mounting profile which
allows for easy fitment of a wide variety
of accessories such as bags, baskets, and
child seats fitted with the MIK or MIK HD
interface. For more information on the MIK
HD mounting system or accessories visit
the manufacturer’s website.
15
17
16
