Speco PBM-15 - Front Panel; Rear Panel; Controls and Connections

3

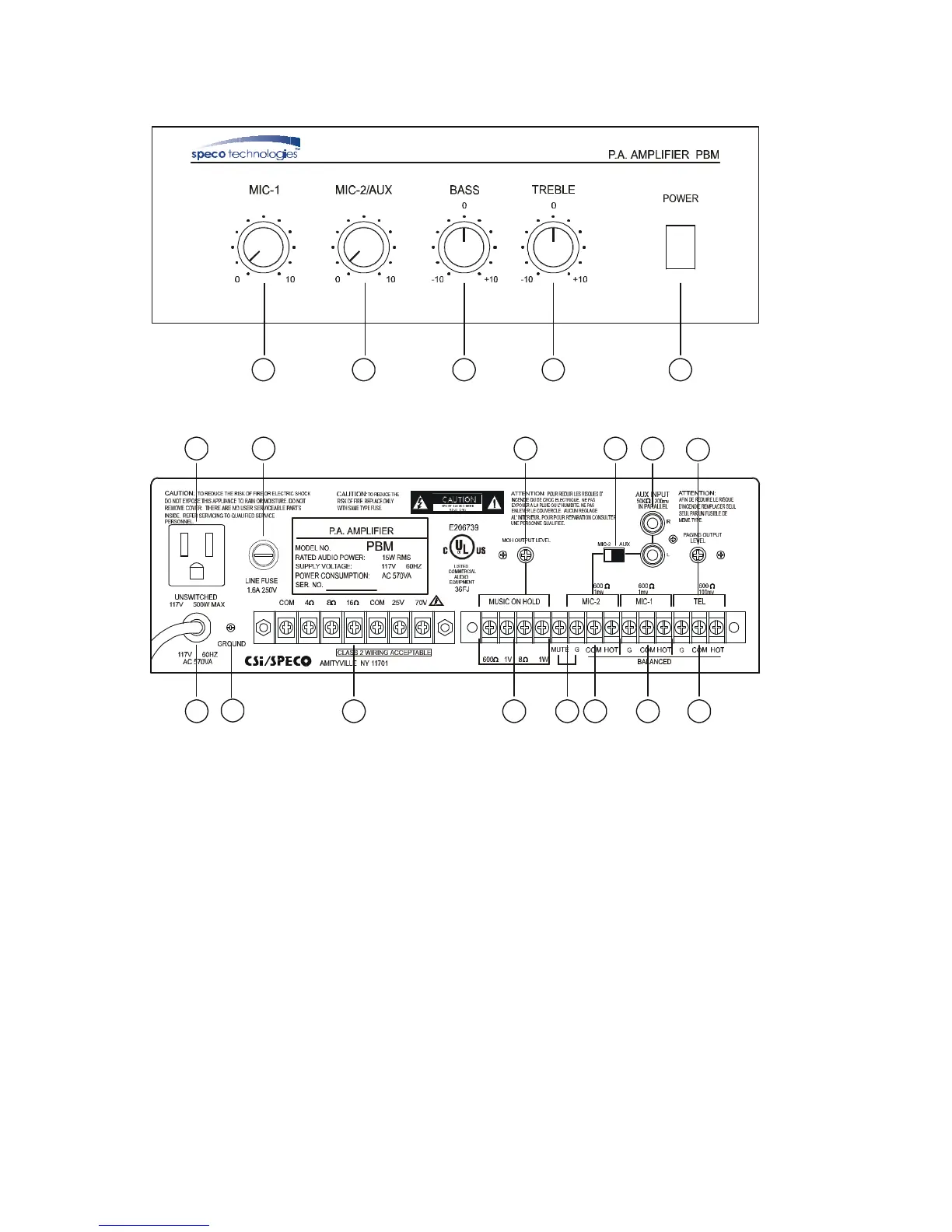

Controls and Connections
FRONT PANEL
1 2 3 4 5
REAR PANEL
14
12
1 2
11 10
9 8 7
3 4
6
5
13
~
~
~
FRONT PANEL
1) MIC-1 Volume control 4) TREBLE Control
2) MIC-2/AUX Volume control 5) POWER on/off switch with indicator
3) BASS Control
REAR PANEL
1) AC accessory outlet (Unswitched) 8) MIC-1 input terminals(Balanced)
2) AC fuse holder 9) MIC-2 input terminals(Balanced)
3) MOH output level control* 10) Manual muting terminals
4) MIC-2/AUX input selector switch 11) MOH output terminals*
5) AUX input RCA jacks 12) Speaker outputs
6) TEL/PAGING output level control** 13) Ground
7) TEL/PAGING input terminals(Balanced)** 14) AC power cord
*MOH = Music on hold
**TEL/PAGING= Connection input terminals for
general or emergency paging.
**TEL/PAGING is not to be connected directly to a
telephone circuit or TNV circuit.
*MOH = Music on hold
