from the yellow tubing (see Flow Restrictor Removal, Adjustment,
and Replacement). Reconnect the tubing to the membrane housing.
Place the flow restrictor in a safe location where it will not be
acci dentally crushed or damaged.
11. Put the yellow concentrate tubing and the blue product
water tubing in the drain and turn on the system water supply.
Allow the system to flush for several minutes to remove any loose
particles.
12. Turn off the water supply to the system. Remove the yellow
tubing from the membrane tubing from the membrane housing
and replace the flow restrictor assembly as described on page 12-13.
13. Re-insert the flow restrictor end of the yellow tubing into
its push-fitting at the RO membrane and reconnect the yellow con
centrate tubing to the membrane housing.
14. Turn on the water supply to the system and check for leaks. Check,
and if necessary adjust, the Concentrate to Purified Water Ratio per
the procedures described in that section.

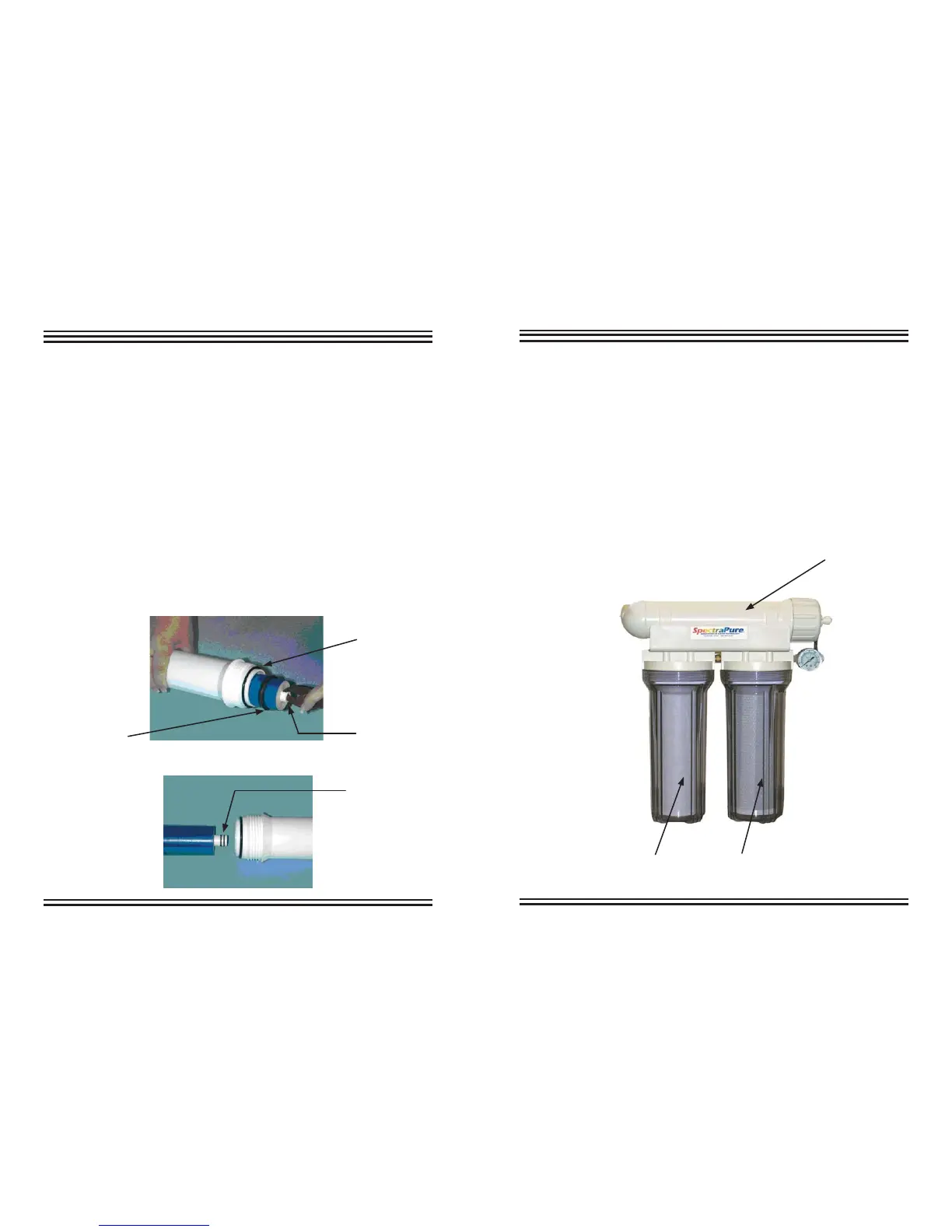

Fig. G: Removing the Membrane Element
Fig. H: Inserting the New Membrane Element
black
membrane
brine seal
black
membrane
housing
O-ring
membrane
product
water tube
double O-
ring end of
membrane
product
water stem
tube
