Spectron SP-A4150 - Page 21

21
10 “GND” POWER INPUT TERMINAL
Terminal to connect the amplifier to the negative or ground pole of the vehicle
11 “REM” INPUT TERMINAL
Terminal to connect the amplifier to the automatic (remote) turn-on / turn-off
lead of the head unit
12 “+12V” POWER INPUT TERMINAL
Terminal to connect the amplifier to the positive +12V voltage of the car battery
13 FUSES
ATC fuses for protection of the amplifier electronics against overload or
wrong operation
14 SPEAKER OUTPUT TERMINAL
Output terminal to connect the speakers to the amplifier (mono for subwoofer)

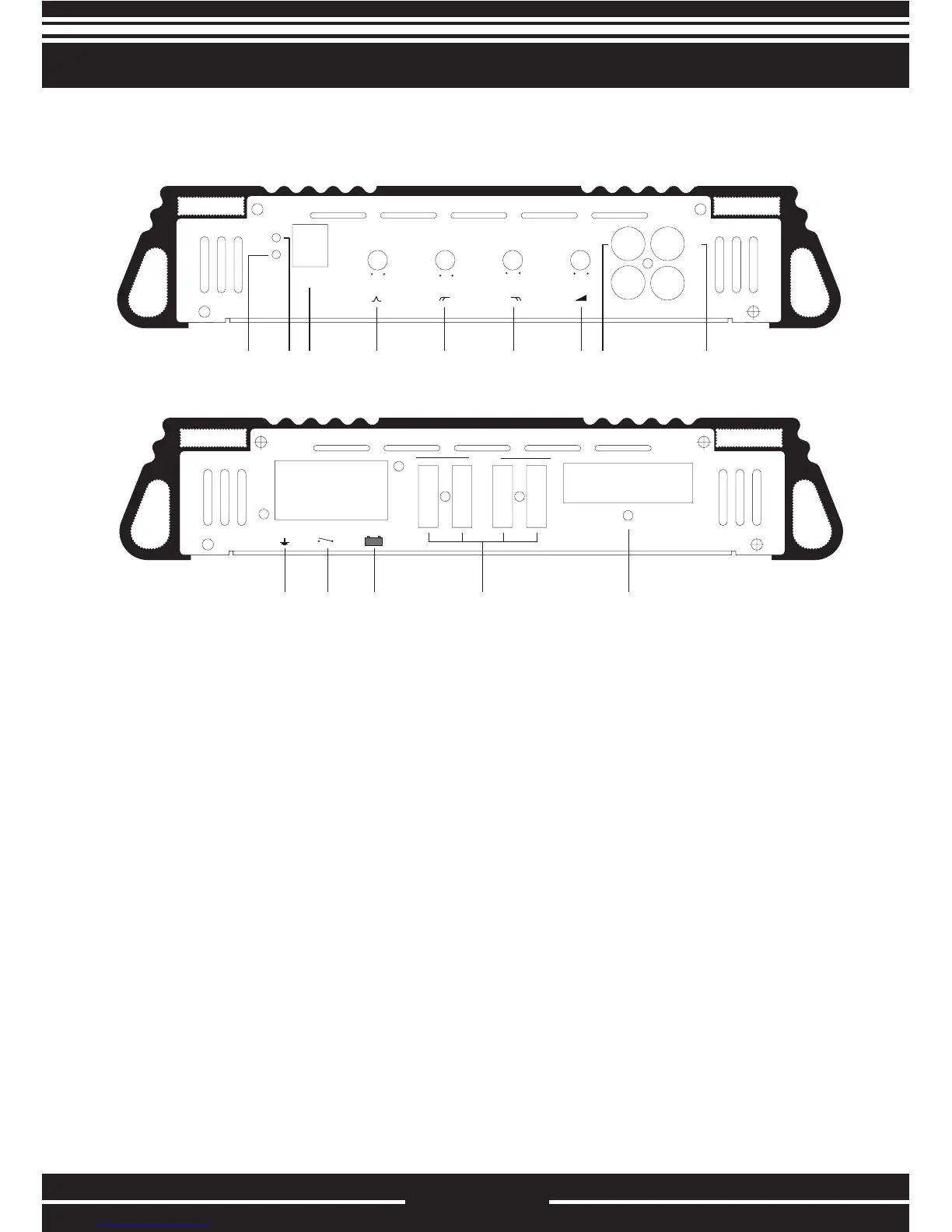

INPUT OUTPUT
R
L
LEVEL
LOW
PASS
SUB
SONIC
BASS
BOOST
0dB 12dB
15Hz 55Hz
40Hz 150Hz
0.2V 5V
REMOTE
CONTROL
PROTECT
POWER
45Hz
POWER INPUT
GND REM +12V
SPEAKER OUTPUT
FUSE
++
-
-
123 4
10 11 12 13 14
5 6 7 89
