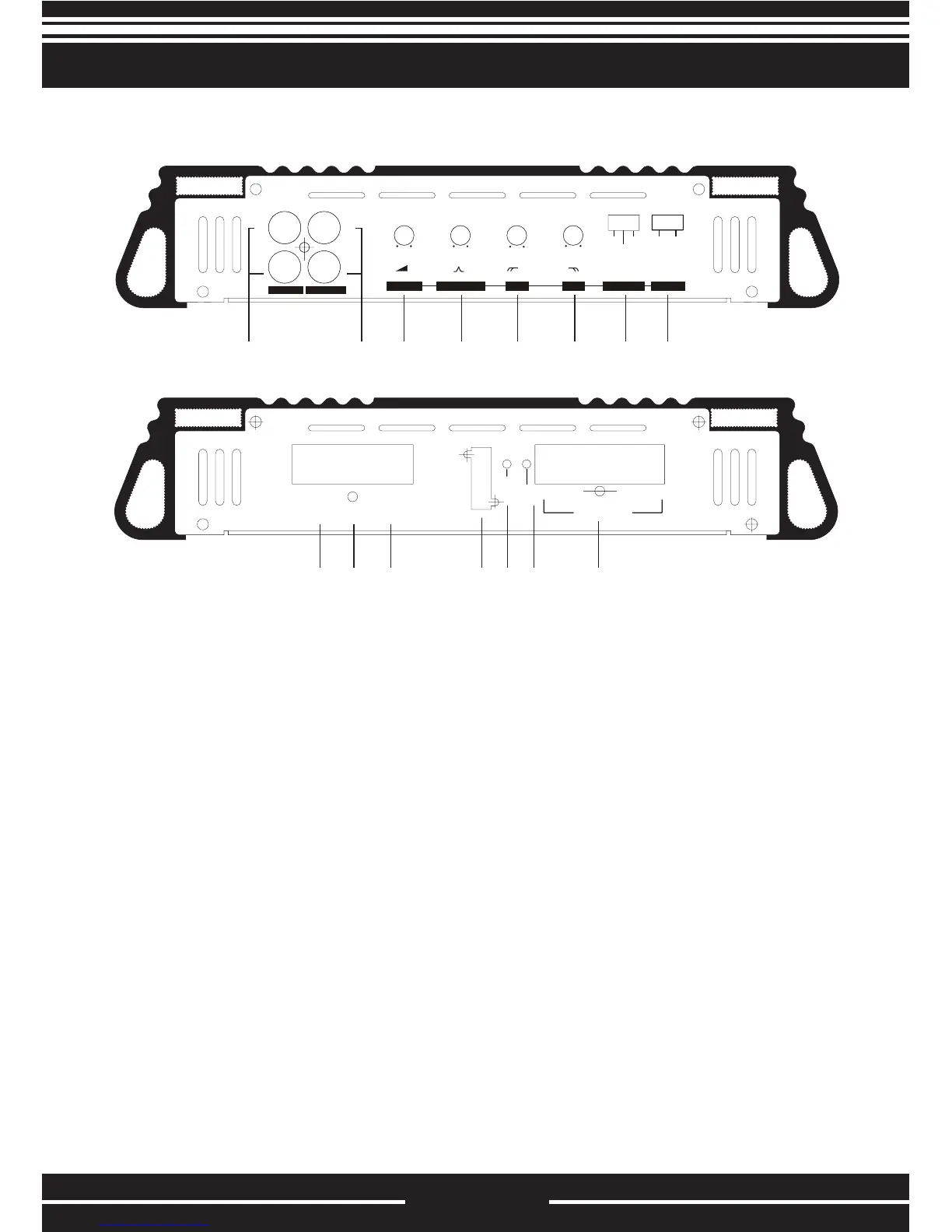

11 “+12V” POWER INPUT TERMINAL
Terminal to connect the amplifier to the positive +12V voltage of the car battery
12 FUSE
ATC fuse for protection of the amplifier electronics against overload or
wrong operation
13 POWER LED
Green “operation” LED is lit when the amp is turned ON, signaling correct operation.
14 PROTECT LED
Red “protect” LED – when lit signalling faulty speaker connections or general
malfunction of the amplifier
15 SPEAKER OUTPUT TERMINAL
Output terminal to connect the speakers to the amplifier (mono for subwoofer)
