2-8 Chapter 2: Installing a ControlLogix 1756sc-CTR8-SC Module
Owner’s Guide 0300199-01 Rev. D

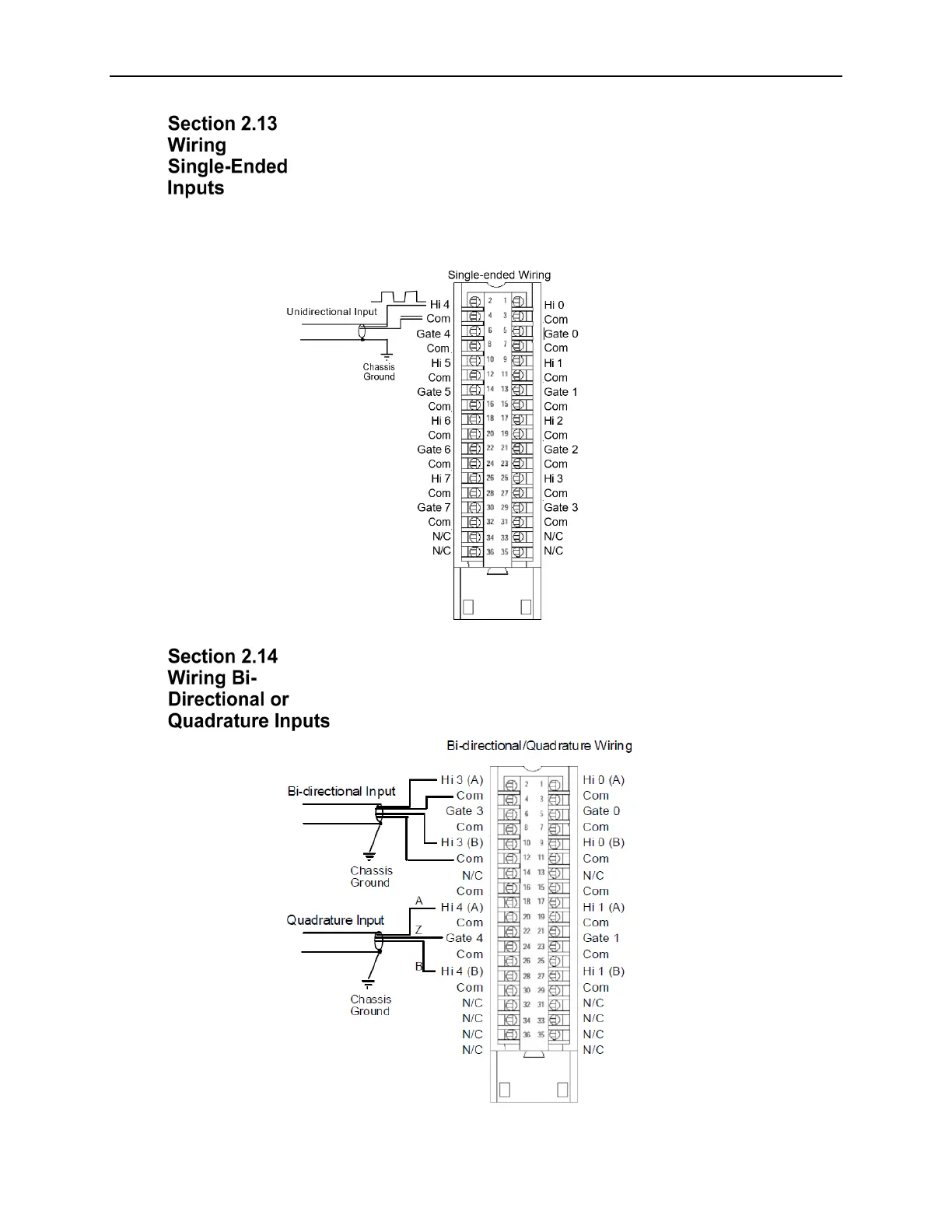

The following figure shows the general terminal block layout. The input signal
type determines which pins are used:
