5-4 Chapter 5: Configuration, Data, and Status Tags
Owner’s Guide 0300199-01 Rev. D

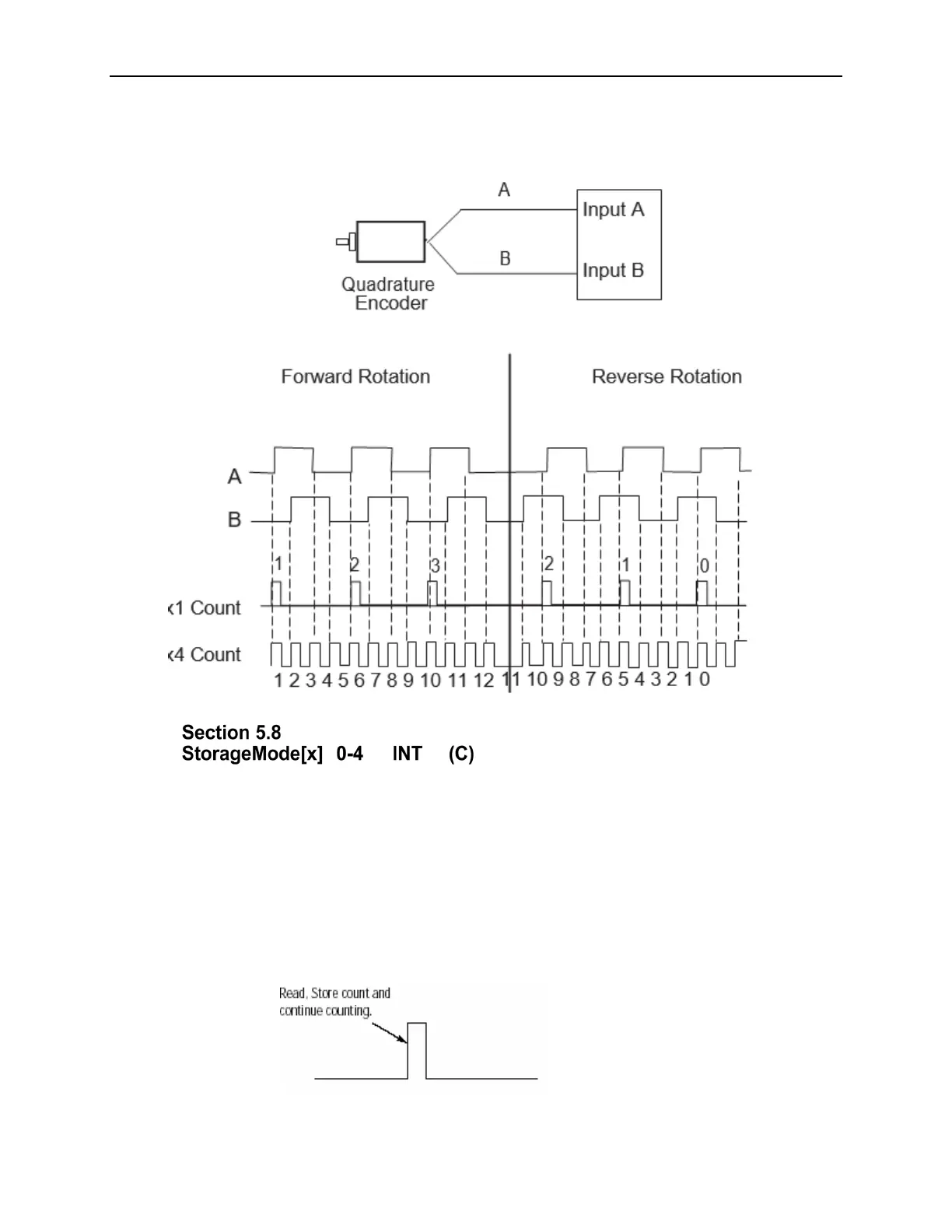

If B leads A, the counter decrements. However, the counter changes value on the
rising and falling edges of inputs A and B. The counter increments four times per
quadrature cycle.
This mode determines how the gate behavior effects counter behavior:
0 = no store mode.
1 = store and continue mode.
2 = store, wait, and resume mode.
3 = store and reset, wait, and start mode.
4 = store, reset, and start mode.
The behaviors are characterized as follows:
StorageMode = 0 - No gate activity stored.
StorageMode = 1 - Read, store count, and continue counting.
