Chapter 5: Configuration, Data, and Status Tags 5-5
Owner’s Guide 0300199-01 Rev. D

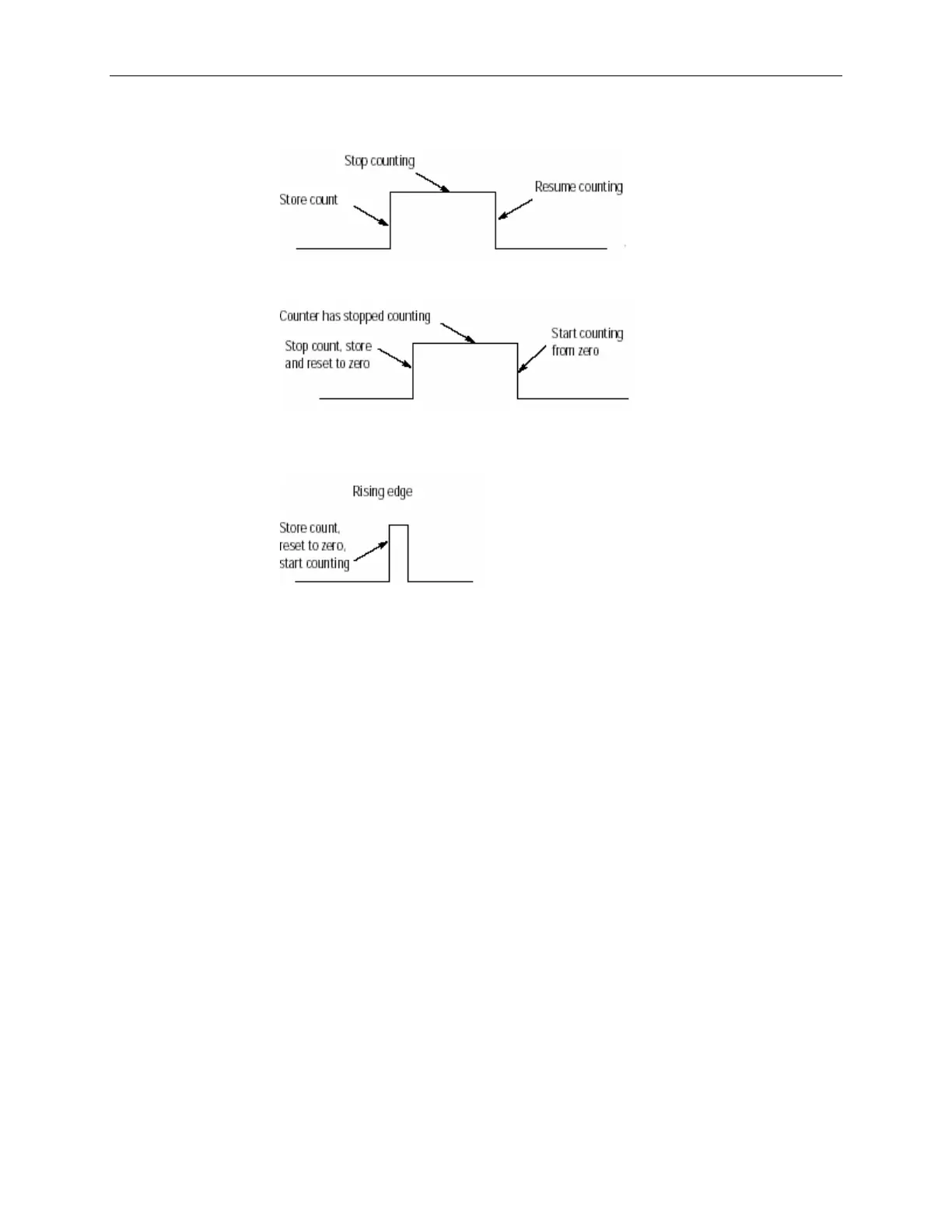

StorageMode = 2 - Store/Wait/Resume.
StorageMode = 3 - Store-Reset/Wait/Start.
StorageMode = 4 - Store-Reset/Start.
InputRange[x] 0,1 INT
This setting determines the threshold where the counter will begin to trigger.
Select the range that is best suited to your sensor’s range:
0 = AC 50 mVpp threshold.
1 = AC 200 mVpp threshold.
2 = 5 V.
3 = 12/24 V.
KFactor[x] 0 - 1×1032 FLOAT (C)
The K scale factor is used for counter scaling. This allows users to scale the
counter output into more useful units, like gallons per minute. When a non-zero
Scale Factor value is set, the scale calculation is always performed. A value of
zero must be written to the Scale Factor to disable this feature. This counter value
is divided by the K factor. K factors are positive numbers.
RFactor[x] 0 - 1×1032 FLOAT (C)
In Program Mode, the data value in this register is used for scaling. The M scale
factor is used for meter calibration. When a non-zero Scale Factor value is set,
the scale calculation is always performed. A value of zero must be written to the
Scale Factor to disable this feature.
The M factor value expressed as a floating point number. This value is
multiplied by the counter actual count value and gives the M factor a range of ±
the maximum value of a REAL type in RSLogix. Exercise due caution as this
