Chapter 7: Troubleshooting 7-3
Owner’s Guide 0300199-01 Rev. D

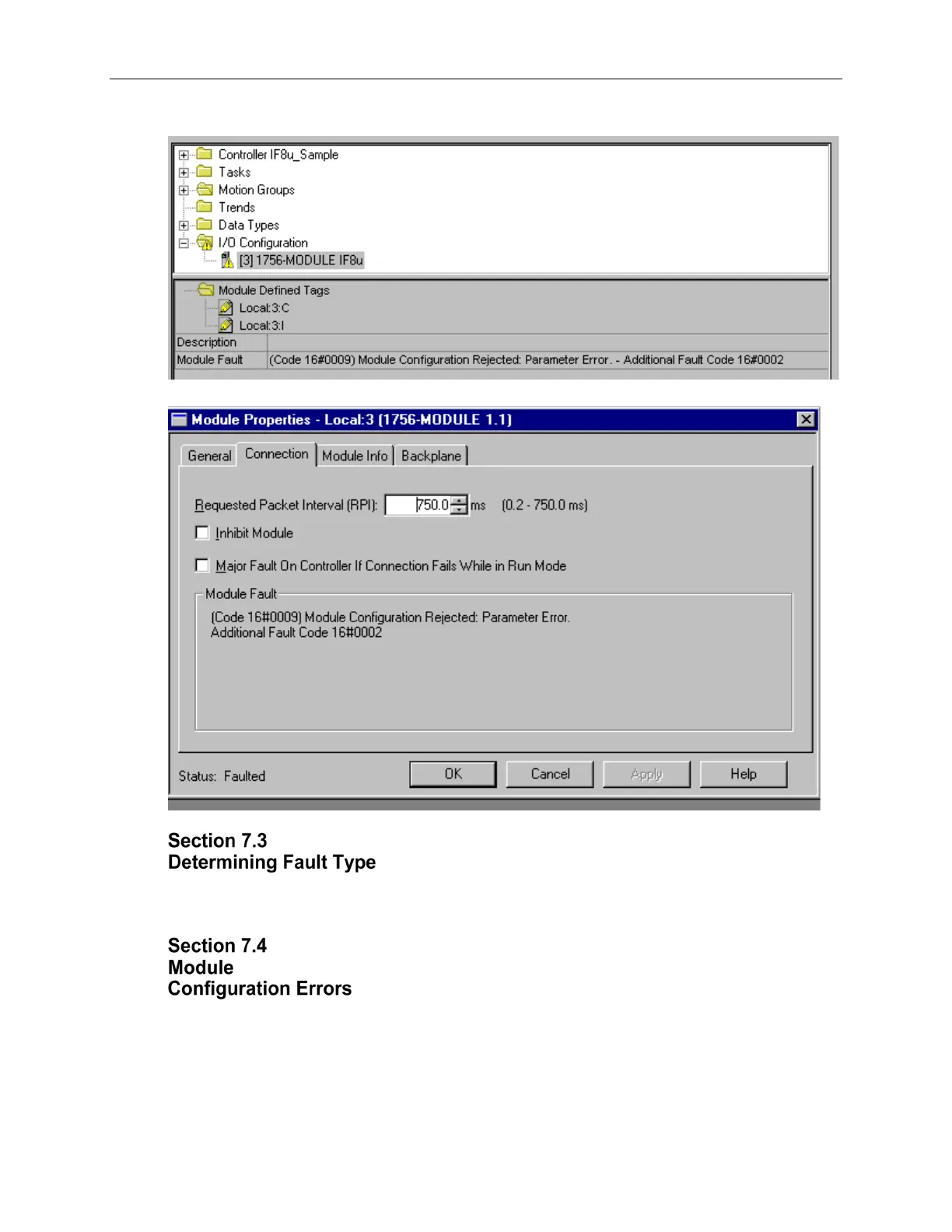

The screens below display fault notification in RSLogix 5000:
Fault information on the Module Properties screen:
When you are monitoring a module’s properties dialog in RSLogix 5000 and
receive a fault message, the module fault area lists the type of fault.
The “Additional Fault Code” value details the configuration error if the
“(16#0009) module configuration rejected: Parameter Error” was received.
