Tools Required for Installation:
1. Two a dj us ta bl e wre nc he s.
2. Additional tools may be required if modications to home plumbing are required.
3. Use copper, brass, or PEX pipe and ttings.
4. Some codes may also allow PVC plastic pipe. Refer to local codes.
5. Always install the included bypass valve, or 3 shut-off valves. Bypass valves let you turn off water to
the softener for repairs.
6. 5/8” OD drain line is needed for the drain.
THE WASTE CONNECTION OR DRAIN OUTLET SHALL BE DESIGNED
AND CONSTRUCTED TO PROVIDE AN AIR-GAP TO THE SANITARY
WASTE SYSTEM OF 2 PIPE DIAMETERS OR 1 INCH(25MM).
(WHICHEVER IS LARGER)
NEVER INSERT THE DRAIN LINE DIRECTLY INTO A DRAIN, SEWER
LINE, OR TRAP. ALWAYS ALLOW AN AIR GAP BETWEEN THE DRAIN
LINE AND THE WASTE WATER. THIS WILL PREVENT THE POSSIBILITY
OF SEWAGE BEING BACK-SIPHONED INTO THE SOFTENER.
CAUTION
YOU MUST FOLLOW ALL NATIONAL AND LOCAL AUTHORITY CODES AND
REGULATIONS GOVERNING THE INSTALLATION OF THESE DEVICES.
NOTE

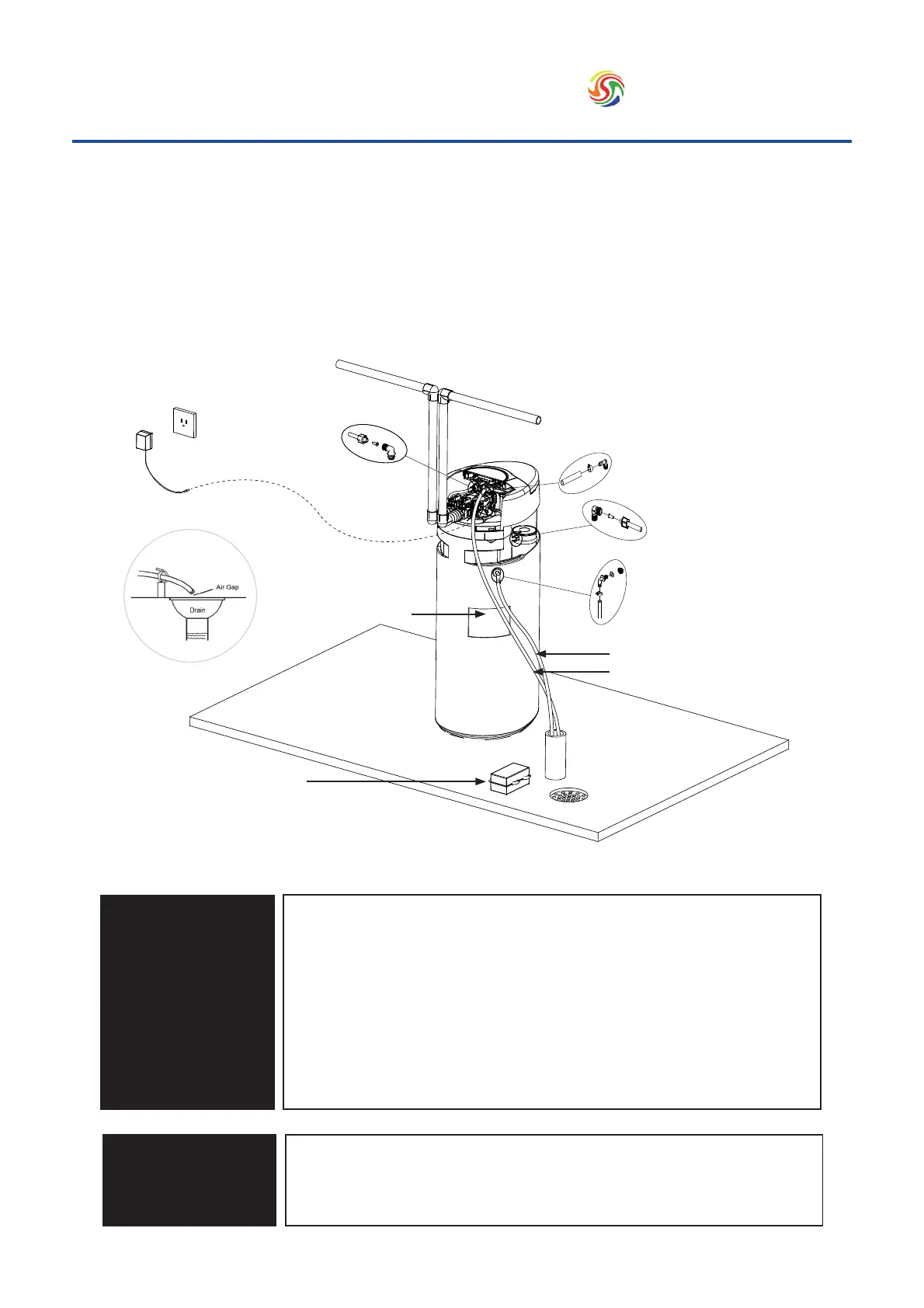

Water pipe outletWater pipe inlet
Brine
elbow assembly
Drain
elbow assembly
Brine valve
connector detail
Optional overow
assembly
5/8" overow line
5/8" drain line
Drain
Floor drain
Optional pipes
xed structure
Cabinet
Pressure tank
AC220V/10A current
protect socket
