CAUTION
DISASSEMBLY WHILE UNDER PRESSURE CAN RESULT IN
FLOODING. ALWAYS FOLLOW THESE STEPS PRIOR TO
SERVICING THE VALVE.
WARNING
ELECTRIC SHOCK HAZARD.
UNPLUG THE UNIT BEFORE REMOVING THE COVER OR
ACCESSING ANY INTERNAL CONTROL PARTS
!

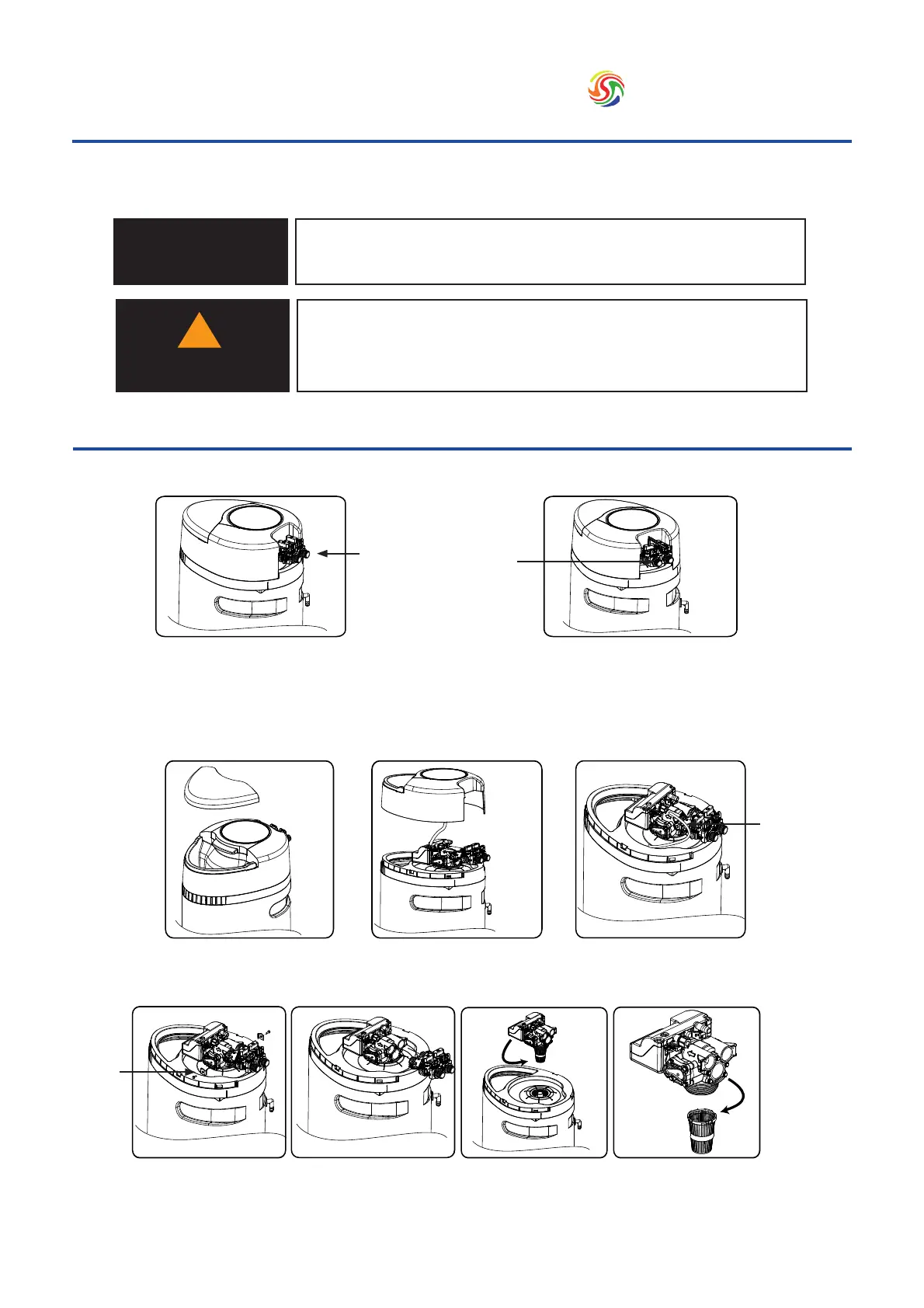

Before Servicing
1. Turn off water supply to softener using the bypass tool attached on the bypass
2. Relieve water pressure in the softener by stepping the control into the backwash position
momentarily. Return the control to the In Service position.
3. Unplug electrical cord from outlet.
4. Disconnect drain line connection.
5. Remove the salt lid
6. Remove the cover, disconnect
the wire connection
7. Disconnect the brine
line
8. Remove the clips
that connect control
valve and bypass
9. Disconnect the
softener from the
bypass
10. Remove the
valve from the
softener
11. Remove the top
cone from the
valve
Bypass tool Close the
inlet and
outlet
Salt lid cover
Wire connections
Brine
tube
2 x clips
2 x screws
Service the Control Valve
To Next Page
