Page 8
ITEM NO. PART NO. DESCRIPTION QTY.
1 40160900 TankAssembly 1
401609CA Tank Assembly (CA) 1
2 O/L 1/2” NC x 4-1/2 Hex Bolt 2
3 O/L 1/2” Lock Washer 2
4 O/L 1/2” NC Hex Nut 2
5 40127200 Tongue Assembly 1
O/L- Obtain locally. Common fasteners available through
hardware and farm stores.

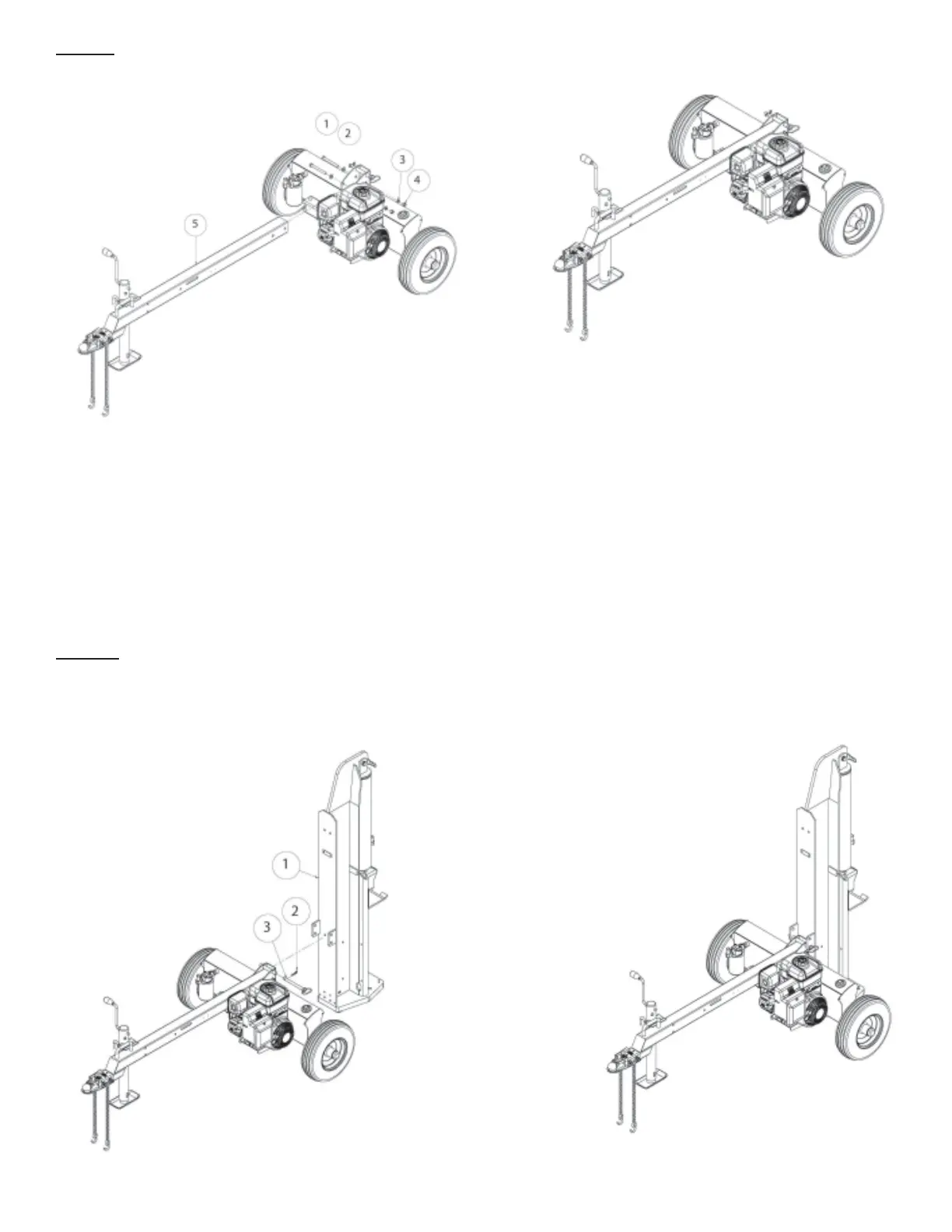

STEP 3: Attach the tongue assembly (5) to the tank assembly (1) using two 1/2” NC x 4-1/2” hex cap bolts (2), two 1/2” l
lock washers (3) and two 1/2” hex nuts (4). Tighten.
STEP 4: Stand the beam (1) up on end. Two people may be needed for this step to ensure safety. Make sure that the
beam is stable and on a level surface.Remove the pivot pin (3) and clip pin (2) from the tank assembly.Roll the
tongue/ tank assembly into position between the two tabs on the beam (1). Slide the pivot pin (3) through the
aligned holes and lock in place with the clip pin (2).
ITEM NO. PART NO. DESCRIPTION QTY.
1 401610S0 Beam Assembly 1
2 O/L 1/2”-3/4” R Clip Pin 1
3 071022WC Pivot Pin 1
