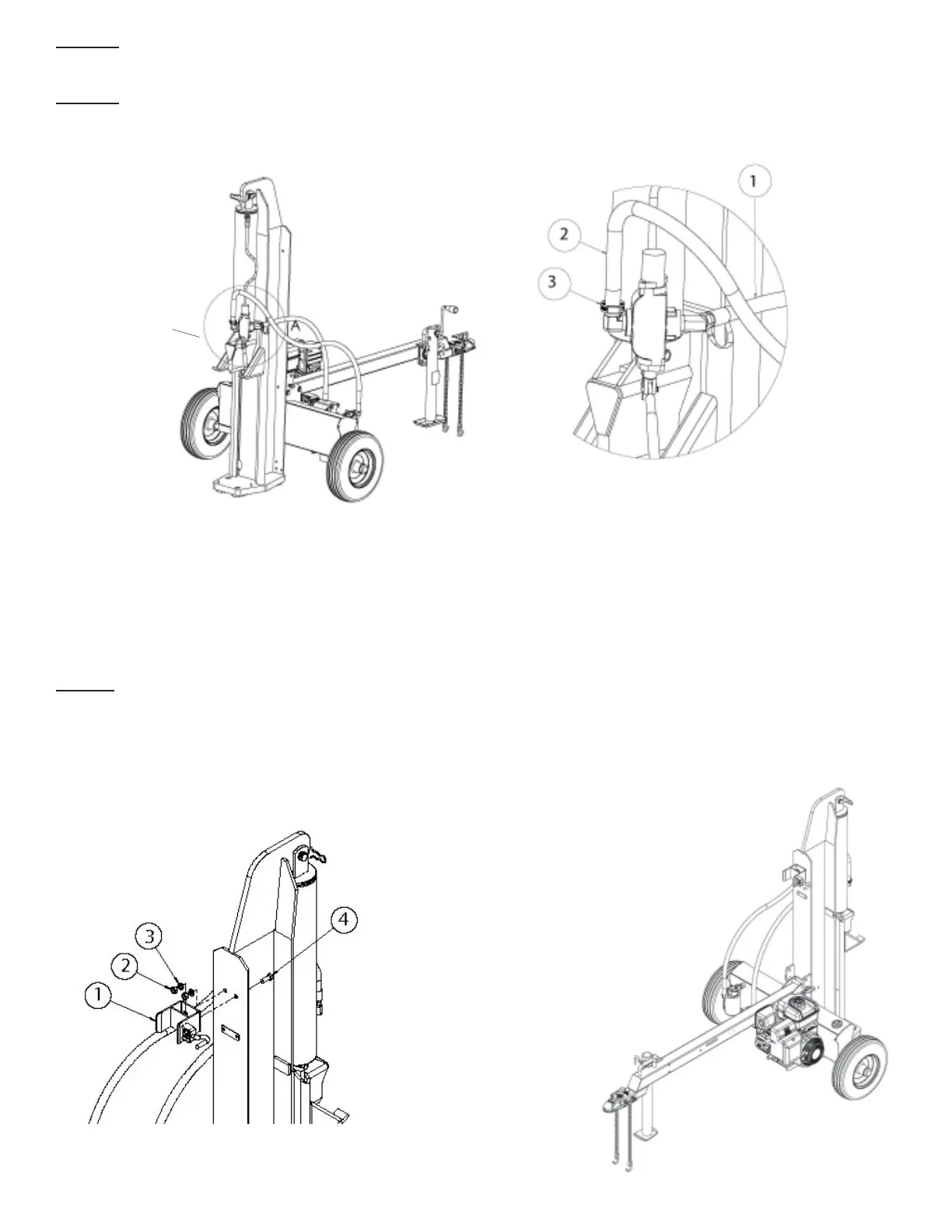

STEP 5: Connect the end of the 1/2” ID x 38” hydraulic pressure hose (1) coming from the fitting on the pump to the
fitting on the valve . See illustrations below.
STEP 6: Slide one hose clamp (3) on the end of the 3/4” x 56” hydraulic return hose (2 ) that comes from the fitting on
the filter . Then connect the hose to the fitting on the valve . See illustrations below.
Area of
Detail
ITEM NO. PART NO. DESCRPTION QTY.
1 39027500 1/2” X 38” Pressure Hose 1
2 39027400 3/4” x 56” Return Hose 1
3 39031600 Worm Gear Clamp 3
STEP 7: Loosely attach the latch assembly (1) to the bottom side of the beam as shown in the diagram using the
two 1/2” x 1-1/4” GR 5 hex cap bolts (4), the two 1/2” lock washers (3) and the two 1/2” hex nuts (2). Lower
the beam onto the tongue. Center the latch assembly on the tongue and tighten hardware.
ITEM NO. PART NO. DECSRIPTION QTY.
1 40127500 Beam Lock 1
2 O/L 1/2” Hex Nut 2
3 O/L 1/2” Lock Washer 2
4 O/L 1/2” x 1-1/4” GR5 Hex Cap Bolt 2
Page 9
