IX. The aircraft interface
There are six plug interfaces at the bottom of the aircraft fuselage as shown below.

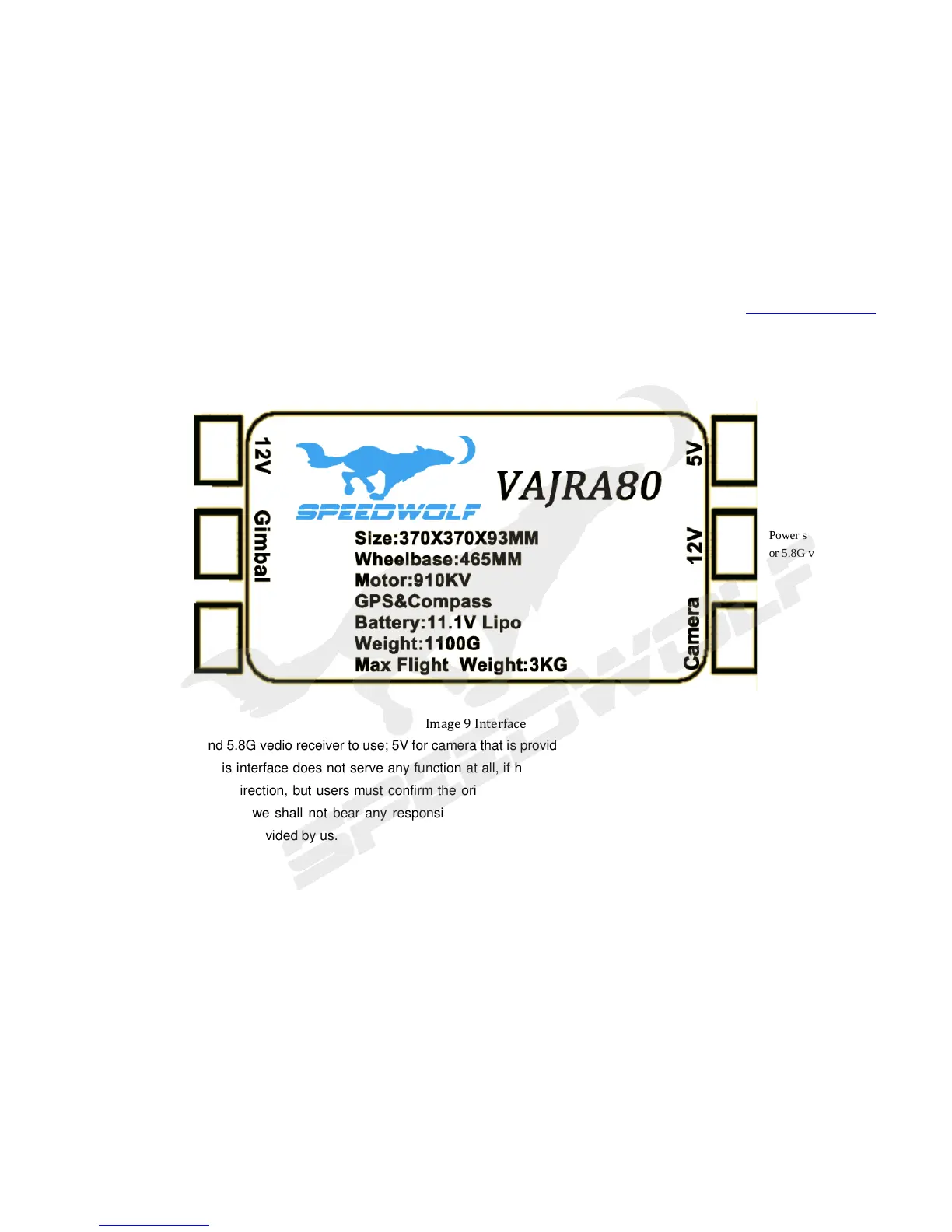

Image 9 Interface
Two 12V for gimbal and 5.8G vedio receiver to use; 5V for camera that is provided by our company; Gimbal for itself; Camera for the
built-in camera (PS: This interface does not serve any function at all, if have no the built-in camera.).This type of plug can prevent
inserting in the opposite direction, but users must confirm the orientation at first. Our company only provides the product with the
supporting external device, we shall not bear any responsibilities, if you do not insert in the corresponding socket, or use other
external devices that is not provided by us.
Power supply for gimbal or
5.8G vedio receiver
Gimbal date interface
Power supply for gimbal
or 5.8G vedio receiver
Power supply for camera
Date put out from built-in
camera to 5.8G vedio receiver
(if camera built-in)
The reserved expansion
interface
